SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

is_customized: Yes

Type: DC Hydraulic Generator

Mounting Base: Without Mounting Base

Model Number: Mni DC generator

Type 1: Hydroelectric Turbine Water Flow Generator

Type 2: Electric Water Hydroelectric Power Hydro Generator

Operating water pressure: 0.05-0.5Mpa

Peak operating water pressure: 0.55Mpa

Peak pressure: 1.6Mpa

Type: DC Hydraulic pump

Choice: yes

semi_Choice: yes

Product selling point:

1. Hydroelectric separation technology, clutch coupled with dual magnetic circuits, the volume is only 4/5 of that of ordinary micro hydroelectric generators, but the output power is 2-3 times that of ordinary hydroelectric generators.

2. Ingenious structural design, the angle of the inlet and outlet pipes can be installed in a straight or L shape according to the requirements.

3. Reasonable waterway design, low flow loss, low water pressure (0.05Mpa) start, and smooth start when the load is short-circuited.

4. After being isolated by the diode, it can directly supply rechargeable batteries below 3000MAH or Farad capacitors below 5F for charging and power supply. It is a good partner for smart faucets and induction faucets.

5. This product has been applied in a large area for many years, and after multiple optimizations, it has a good cost performance.

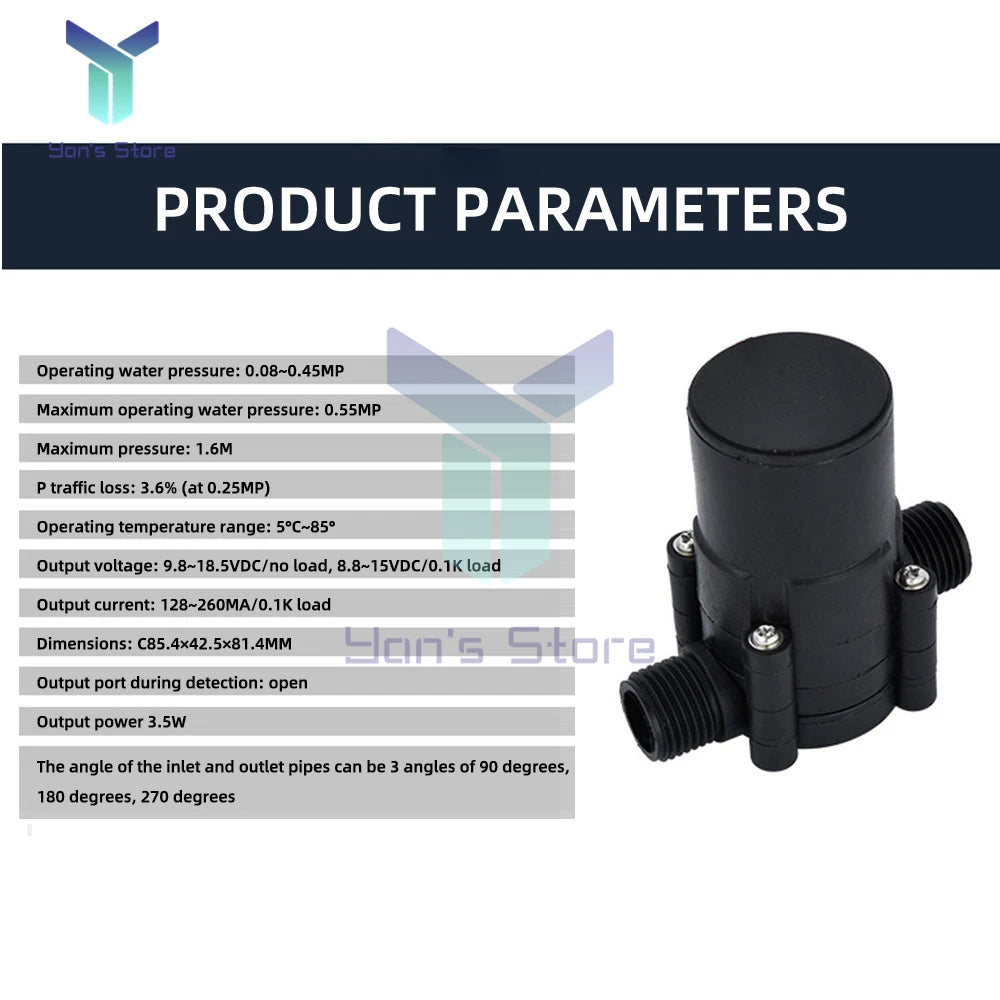

Product parameters:

Product model: F40 (pipeline water flow generator, DC output)

Operating water pressure: 0.05-0.5Mpa

Peak operating water pressure: 0.55Mpa

Peak pressure: 1.6Mpa

Traffic Loss: 3.6% (at 0.25 MP)

Operating temperature range: 5℃～85℃

Output voltage: 9.8~18.5VDC/no load, 8.8~15VDC/0.1 K load

Output current: 128~260 MA/0.1 K load.

Dimensions: ￠85.4×42.5×81.4 MM

Output port during detection: open

Output power 3.5W

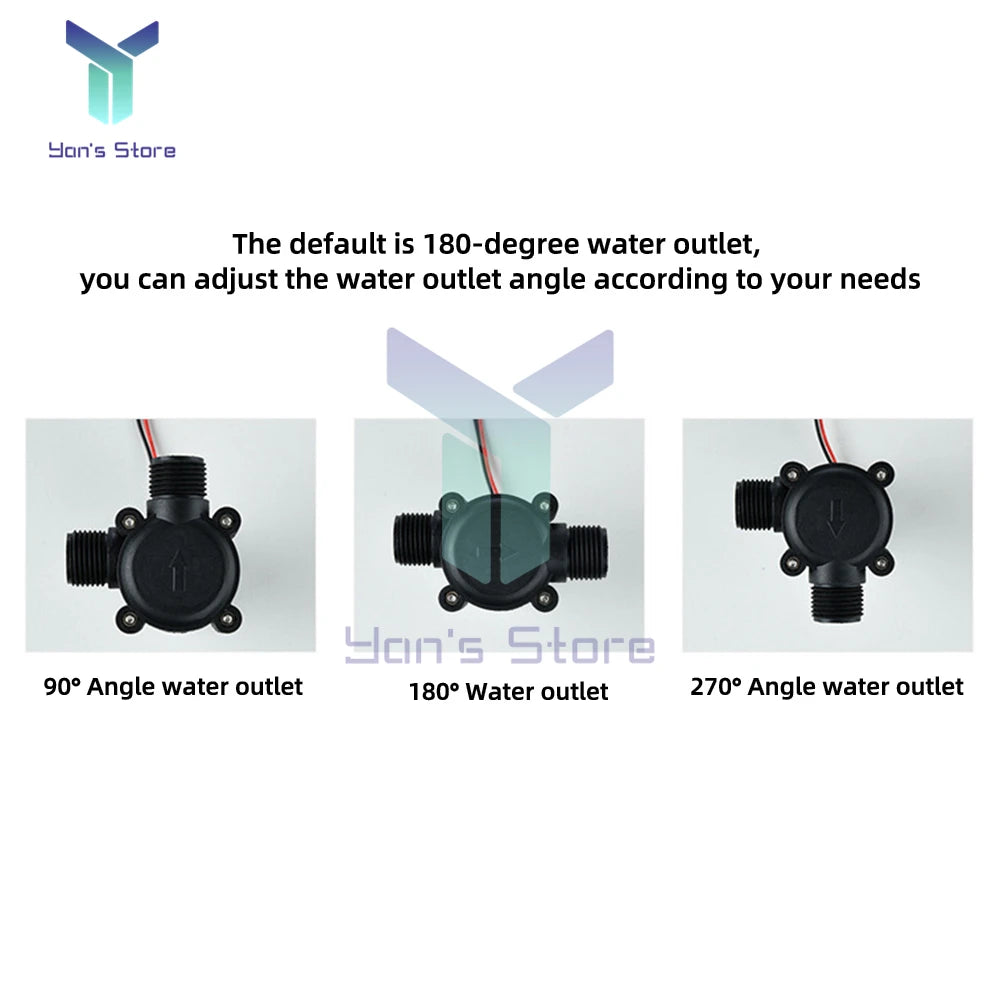

The angle of the inlet and outlet pipes can be 90 degrees, 180 degrees, 270 degrees, 3 angles

Installation method: Install in the direction of the arrow, the standard household water pipe is divided into 4 pipes, the outer diameter is 20mm and the inner diameter is 13mm

Checklist:

DC0-18V DC generator * 1
