Description
SPECIFICATIONS
Brand Name: IHANFO
Display Ratio: 16:10
Bracket Type: Ordinary bracket
Display Size: 3.5
High-Dynamic Range: none
Resolution: 640x480
Screen curvature: none
Origin: Mainland China
Horizontal Viewing Angle: 165°
Panel Type: TN(防护工具)
Display Size: 23.6"
Vertical Viewing Angle: 165°
Black and White Response Time: 1 ms
Screen Type: LCD
Plug Type: US PLUG
Built-in Speaker: No
Brightness: 500cd/m
Pixel Pitch: 0.217mm
Application: Desktop
Contrast Ratio: 800:1
Launch Date: 2016
Feature: USB Port
Feature: Touch Screen
Products Status: STOCK
Certification: CE
Certification: RoHS
Contrast Ratio: 650:1
Refresh Rate: 60Hz
Response Time: 3ms
Raspberry Pi Touchscreen: HDMI Screen Display
Monitor 3.5 inch HDMI: JRP3509B
Compatible con Raspberry Pi 4: 480*320
【Product description】
●.3.5 inch standard display, 480 × 320 Hardware resolution, Up to 1920x1080 Software configuration resolution.
●.Resistance touch screen.
●.Support backlight control alone, the backlight can be turned off to save power.
●. Support Raspberry Pi, BB Black, Banana Pi and other mainstream mini PC.
●.Can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display .
●.Used as a raspberry pi display that supports Raspbian, Ubuntu, Kali-Linux, Kodi, win10 IOT, single-touch, free drive.
●.Work as a PC monitor, support win7, win8, win10 system 5 point touch (XP and older version system: single-point touch),
free drive.
●.CE, RoHS certification.
【Product Parameters】

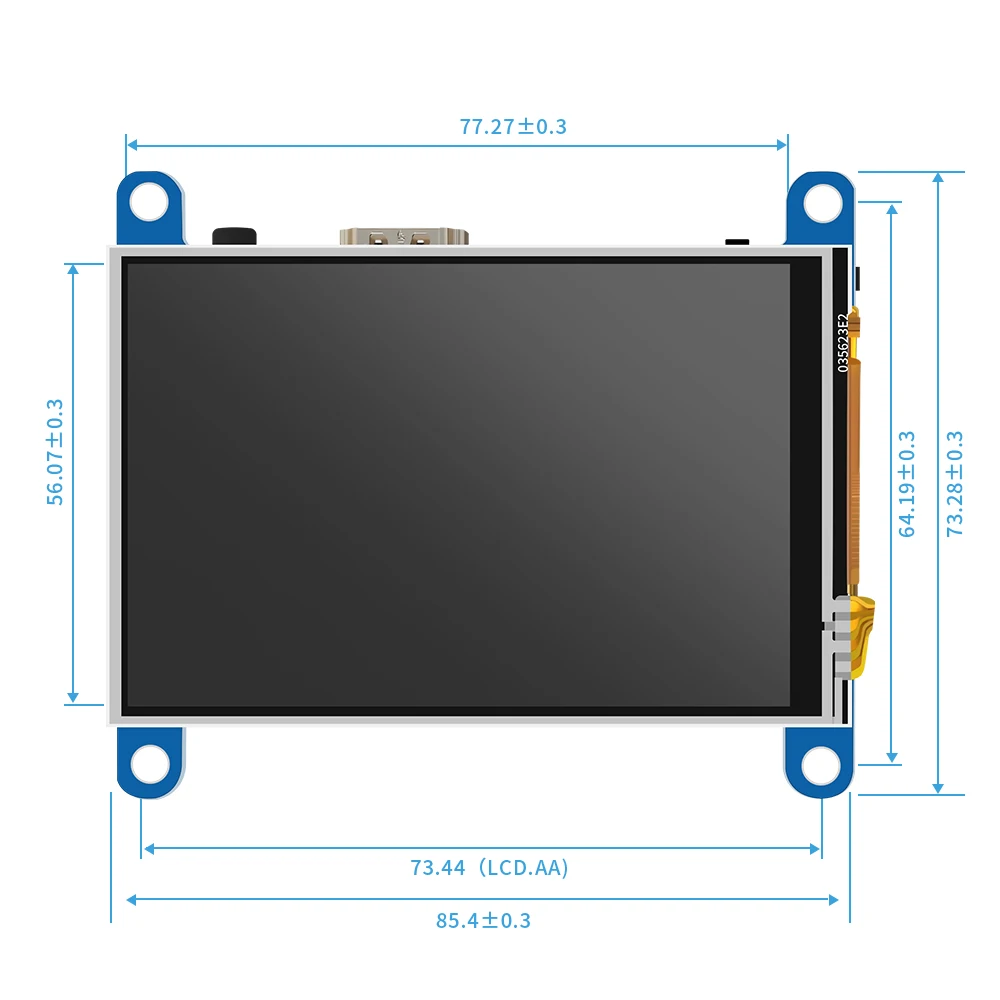

●.Size:3.5 (inch) ●. Resolution:480 ×320 (dots) ●. SKU: JRP3509
●. Touch: Resistive touch ●.Weight: 200 (g)
How to use with Raspbian/Ubuntu Mate/Win10 IoT Core System
Step 1, Install Raspbian official image
Download the latest image from the official download.
Install the system according to the official tutorial steps.
Step 2, modify the “config.txt”
After the programming of Step1 is completed, open the config.txt file of TF card root directory and
add the following code at the end of the file, save and eject Micro SD Card safely:max_usb_current=1
hdmi_force_hotplug=1
config_hdmi_boost=7
hdmi_group=2
hdmi_mode=87
hdmi_drive=1
display_rotate=0
hdmi_cvt 480 320 60 6 0 0 0
Step 3, Drive the HDMI with the Raspberry Pi
Insert the TF Card to Raspberry Pi, connect the Raspberry Pi and LCD by HDMI cable;
connect USB cable to one of the four USB ports of Raspberry Pi,and connect the other end of the USB cable to the USB port of the LCD;
then supply power to Raspberry Pi; after that if the display and touch both are OK,it means drive successfully (please use the full 2A for power supply).
How to use as PC monitor
Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
