Description
SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
Connection Type: WireLess
Power: Dry battery
Display: Color
Feature: Photograph
Feature: Video
Item Type: VIDEO DOORBELL
Itercom: Yes
Alarm: Yes
Certification: CE
Certification: RoHS
Smart home platform: Alexa
Smart home platform: Tuya
Smart home platform: Google Assistant
Update 1: Update to 3MP Resolution
Update 2: 5V 1A Type-C charging Port
Feature: Adjust Volume via APP
Product Name 1: Cat Eye Visual Doorbell
Product Name 2: Tuya Door Peephole Camera
Product Name 3: IP Camera
Rechargeable Battery: 5000mAh Built-In
WiFi: Suitable for 2.4G
Angle: Diagonal 166° View
Two Way Audio: Support
Alexa Google Live View: Support
Night Vision: Yes
Alexa Google Announcement: Yes
Cat-eye: 17~57MM
Door Thickness: 35~105MM
LCD Size: 4.3 Inch
SD Card: Max. 128G TF Card
App: Tuya Smart or Smart Life
Size of Monitor: 112*90*26
Size of Doorbell: 65*65*60
Vertical: 75°
Horizontal: 137°
Choice: yes
semi_Choice: yes
SupportONLY2.4Ghz Wi-Fi to connect to APP.5Ghz Wi-Fi Not Supported!
Two Upgrade:
Upgrade to 3MP Resolution;
Upgrade to Type-C charging port
Tuya Smart Peephole Viewer WiFi Digital Door Viewer (1 Doorbell 1 Monitor)
- Built-in 5000mAh rechargeable battery with 4.3' Monitor
- When press door camera, monitor view will auto pop-up
- Support Alexa/Google Announcement or Alexa Echo show/Google Chromecast live view.
ANNOUNCEMENT:
- when you press door camera, the ALEXA ANNOUNCEMENT with " someone at the smart doorbell(DEVICE NAME)"
VOICE COMMAND LIVE VIEW:
- Voice Command to wake up door viewer with: alexa, show me device name ; or hey, google, show me device name. MAKE SURE SLECT ALEXA SKU for this function
【Tuya Smart 4.3" LCD Digital Peephole Door Viewer Camera 3MP 1080P】
It can connect to WiFi router wirelessly. You can monitor (handheld including smartphones, Android tablets) and one or two-way intercom with noise reduction (view visitors, video calls, snapshots, recordings, etc.). The system function menu is located in the mobile APP console instead of the indoor display. (The device is widely used in homes, apartments, villas, hotels or offices, etc.).At the same time the large 4.3" LCD screen enables you or your family to see out the door clearly and sharply.
【PIR detection and 166° Wide Angle】
Using 3MP Wide View Angle:Diagonal 166 °;Horizontal 137 °;Vertical: 75°, automatic switching of day/night vision sensitivity (adjustable; distance is about 3-4 meters), TFT color LCD display, suitable for AHD images and videos. Motion detection (PIR motion sensor can automatically detect body movement and trigger push messages and videos (stored to TFT card or mobile phone) within seconds, keeping your home safe 24 hours a day.166° Wide Angle, Easily Maximize Your Home Security with a Clear View of Your Doorway.
【Two-way intercom brings convenience】
You can tell the courier where to put the package, or warn strangers, theft, voyeurs, etc. to stay away from your house. No need to open the door or communicate face-to-face, the smart doorbell camera with two-way intercom function can save your family from unnecessary danger or accident through the APP.
【Long-lasting battery and app control】
Built-in 5000 mAh rechargeable large capacity battery supports 30 days long standby (usually 3-5 calls per day), low battery reminder and USB port charging. This digital door viewer supports both iOS and Android, download the Smart Life App to receive every detail of what happens every day at your front door anytime, anywhere. Never miss a visitor or prevent theft, strangers or voyeurs.
【TF Card or Cloud Storage】
Support Max. 128G TF Card for local or event recording. Also support 30days trial cloud storage based on Tuya platform
【Peephole Diameter and Door Thickness Requirements】
Please note that the installation requires a hole through which you can connect the camera to the screen.
If there is no peephole, please drill a peephole with a diameter of 15 to 60 mm in a door with a thickness of 35 to 145mm.
Tuya WiFi 3MP 1080P Peephole Door Camera Viewer 4.3 Inch
View Angle and PIR Motion Detection
You can see within a 166 degree range and if someone moves in front of you, it will also be detected
3MP 1080P High Resolution Peephole Door Camera
Provide high clear day and night view
Battery Capacity and Usage Duration
1-2 months' Use with 5000mAh Battery Built-In based on 10-20 events per day; Battery NOT replaced
It takes at least 8~10 hours to charge,you must use 5V1A charger,do not use fast charger!Please note,otherwise the battery is easily demaged.
Alexa Google Door Press Announcement
When someone press door camera, alexa/google devicce will have announcement" Someone at the DEVICE NAME"
Alexa Google Door Press Announcement and Live View
- When someone press door camera, alexa/google devicce will have announcement" Someone at the DEVICE NAME" and Echo show or Chromecast will pop up the LIVE VIEW.
- You can also wake up the doorbell via voice comamand alexa, show me device name ; or hey, google, show me device name.
PRODUCT SKU WITH ALEXA WORKS SUPPORT THIS FUNCTION

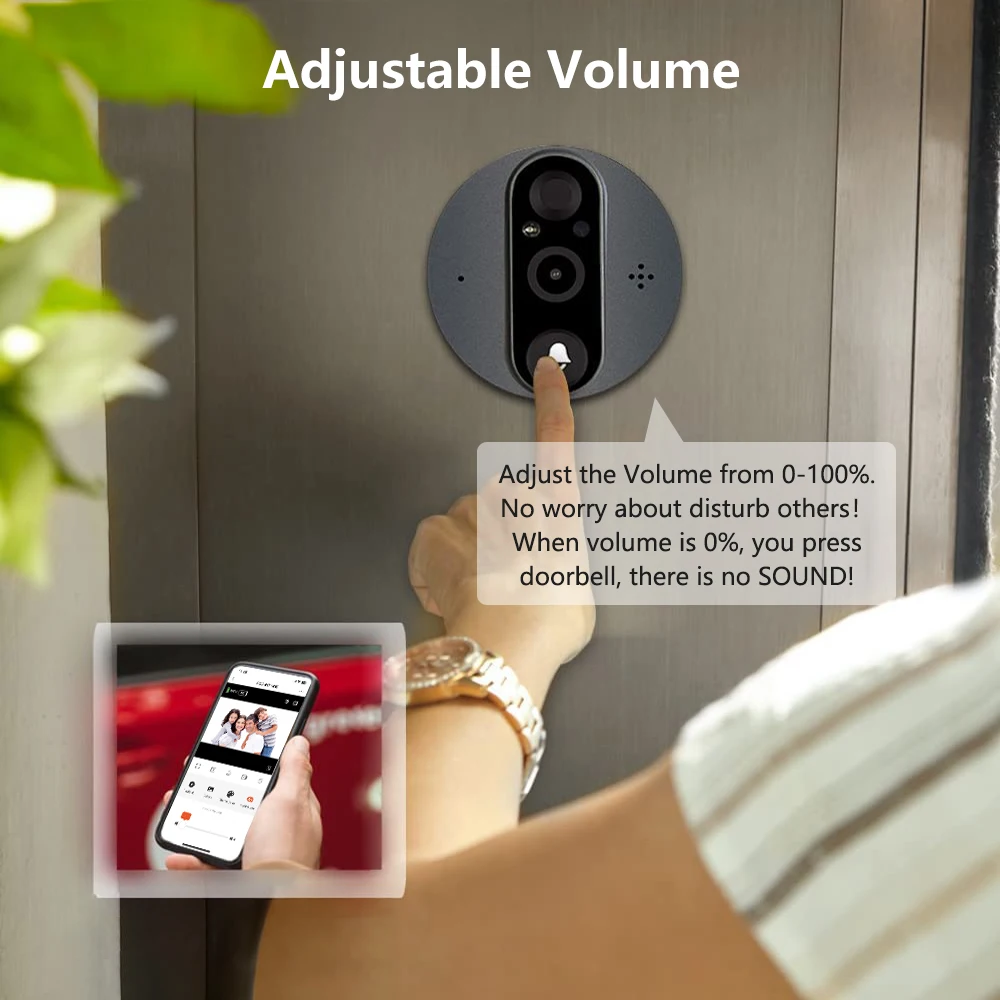

Can Adjust the Volume
Low Battery Reminder and App Notification
Product Size Information

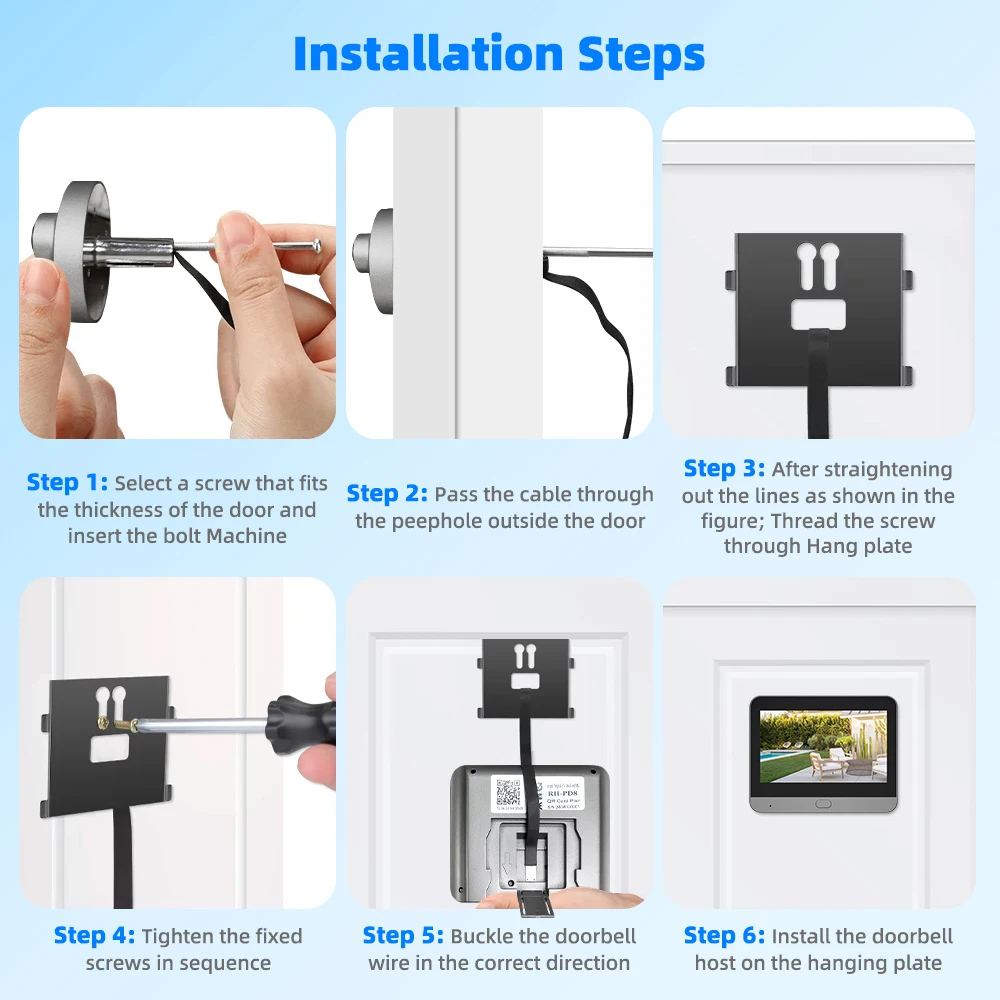

Installation Instructions
Door Thickness and Peephole Diameter requirements:
Smart Multi-View
You can see the scene under four lenses at the same time, and it is a color vision
Share to the one you loved!
Download the app " Smart Life" or " Tuya Smart" from iOS APP Store or Google Play to start smart life.
