SPECIFICATIONS

Brand Name: Aideepen

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display Size: 2.9 Inches & Under

Certification: none

Model Number: 7.83Hz Schumann Waves Resonance Generator

Working voltage: DC 5V (DC 4-15V)

Default frequency: 7.83Hz

Adjustment range: 0.01Hz~100000Hz pure sine wave

Power interface: Type-c



Feature:

1. This product is made of high quality materials, the use of low temperature drift crystal oscillator and high precision DAC special chip, the product has good frequency stability;

2. This product can not only output 7.83Hz Schuman wave, but also add programmable frequency modulation technology, can adjust the frequency in the range of 0.01Hz~100000Hz;

3.2 kinds of specifications, there are 2 kinds without shell and with shell can be selected according to demand;

4. Digital circuit crystal frequency benchmark, more stable, stronger anti-interference;

5. The power supply interface adopts the Type-c interface, which is easy to use and supports Type-c to Type-c power supplies.



Product Description:

Schuman wave itself is not directly acting on sound or video products to improve the sound quality, but the role of the space environment, so that people's body and mind can be relaxed, improve the body's perception of sound and images, improve the health of the human body work efficiency, relieve psychological pressure also has a good effect. The product can not only output 7.83Hz Schumann wave, but also adjust the frequency in the range of 0.01Hz-100KHz, digital circuit crystal oscillator frequency reference, more stable, stronger anti-interference, using low-temperature drift crystal oscillator and high-precision DAC dedicated chip, can precisely output frequency and pure sine wave.



Product parameters:

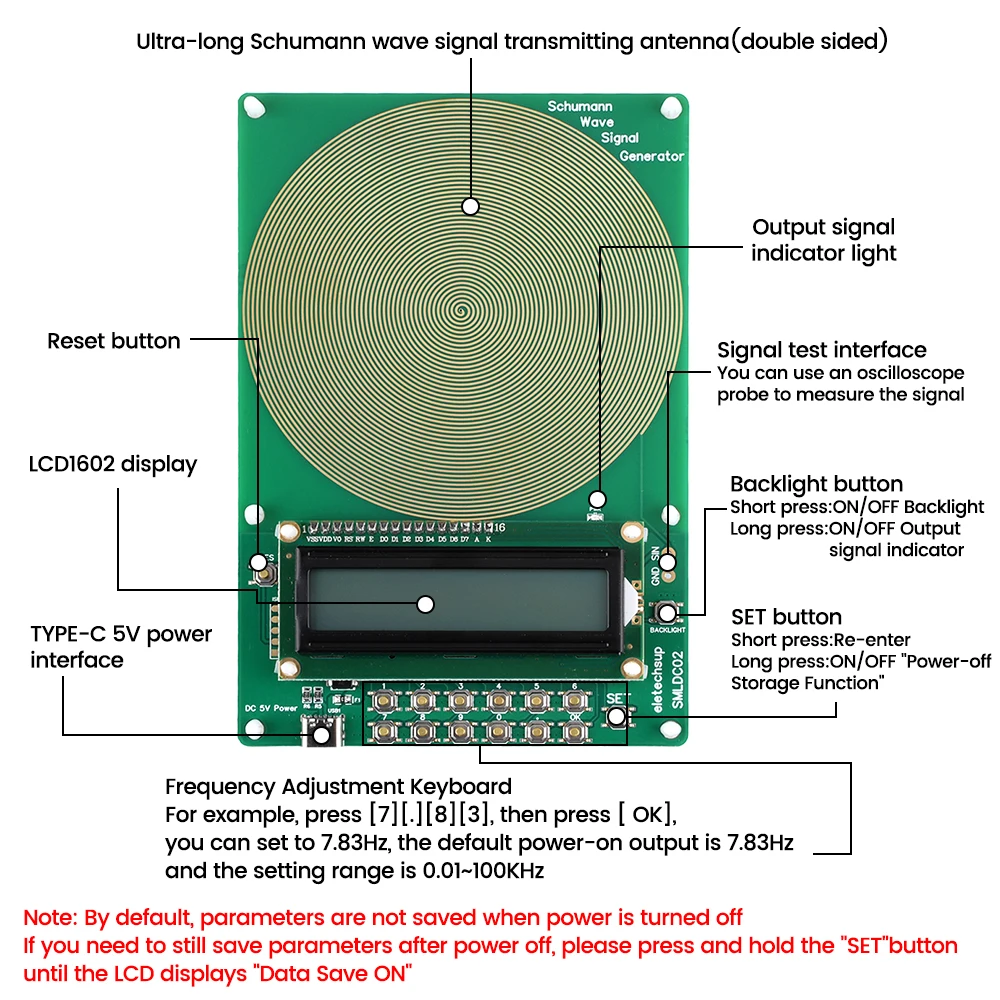

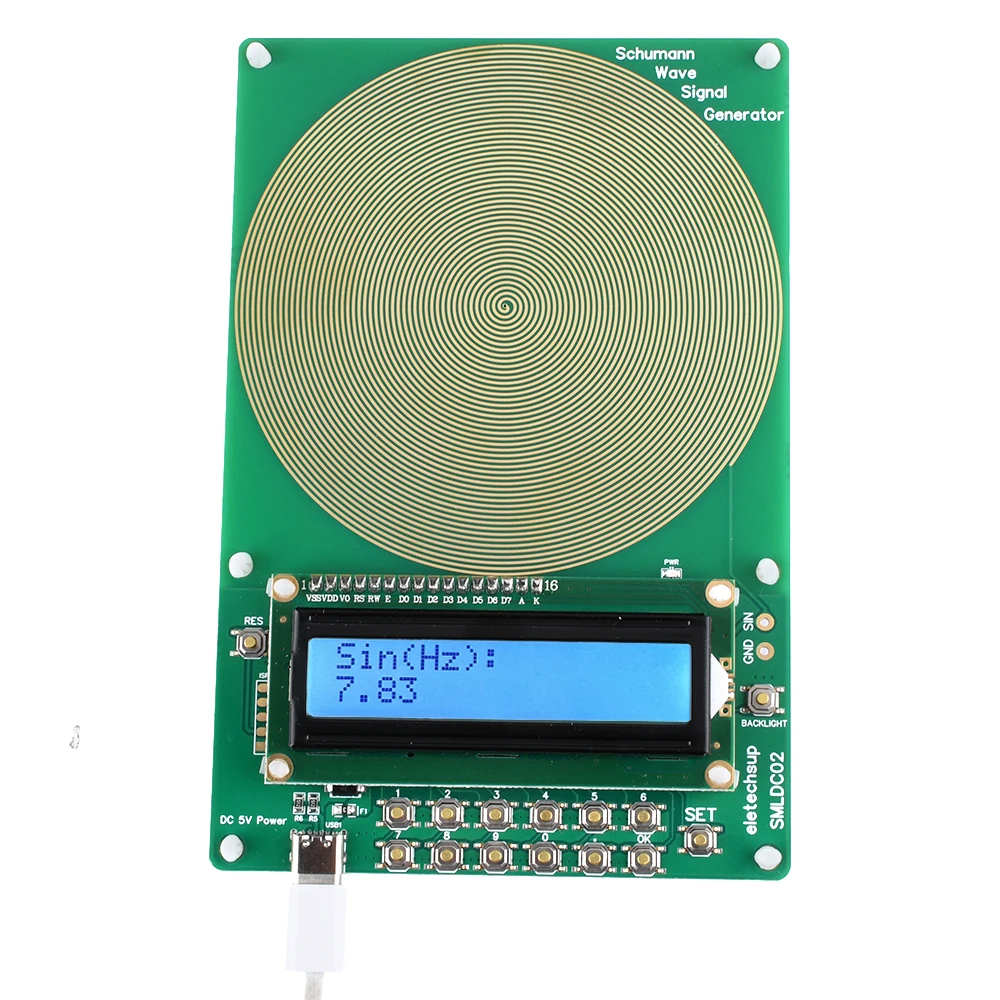

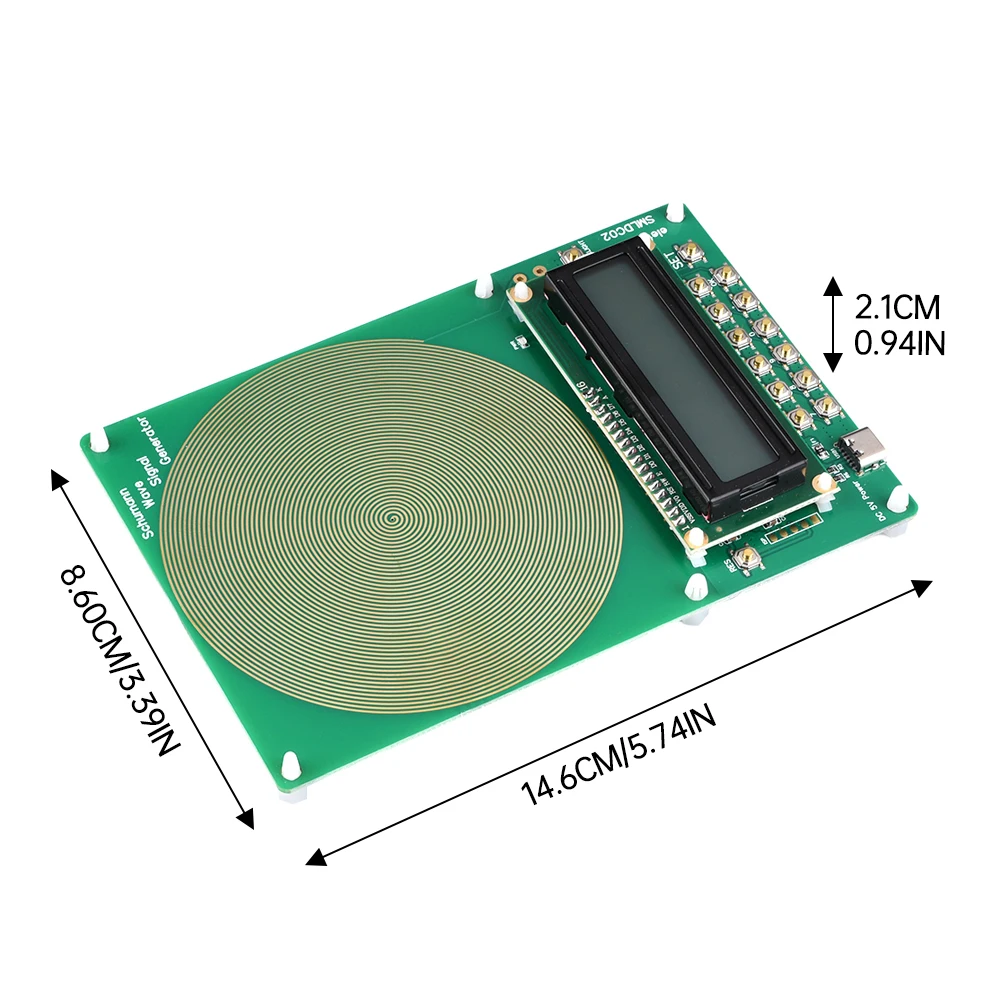

without case:

Working voltage: DC 5V (DC 4-15V)

Working current: 8-14MA

Power interface: Type-c (Support Type-c to Type-c power supply)

Default frequency: 7.83Hz

Adjustment range: 0.01Hz~100000Hz pure sine wave

Signal voltage amplitude: 3V

PCB board size: 150*100*12MM

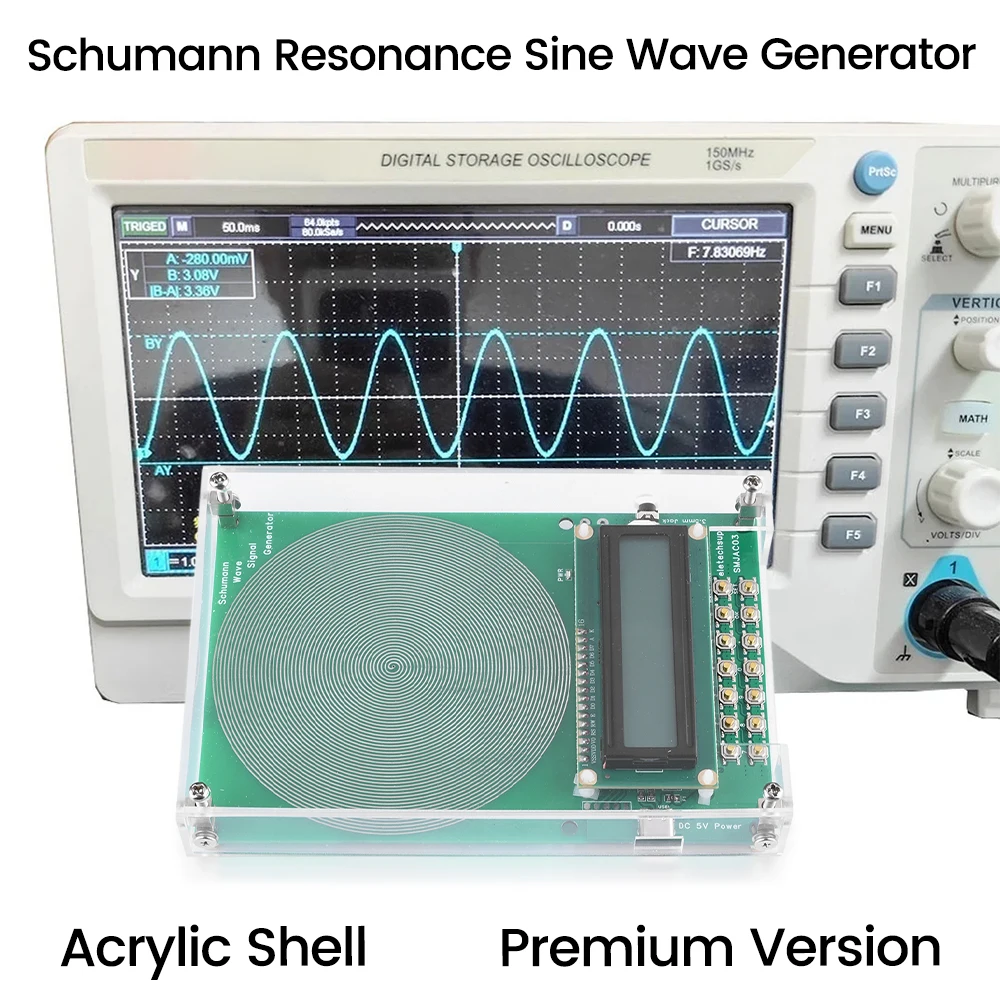

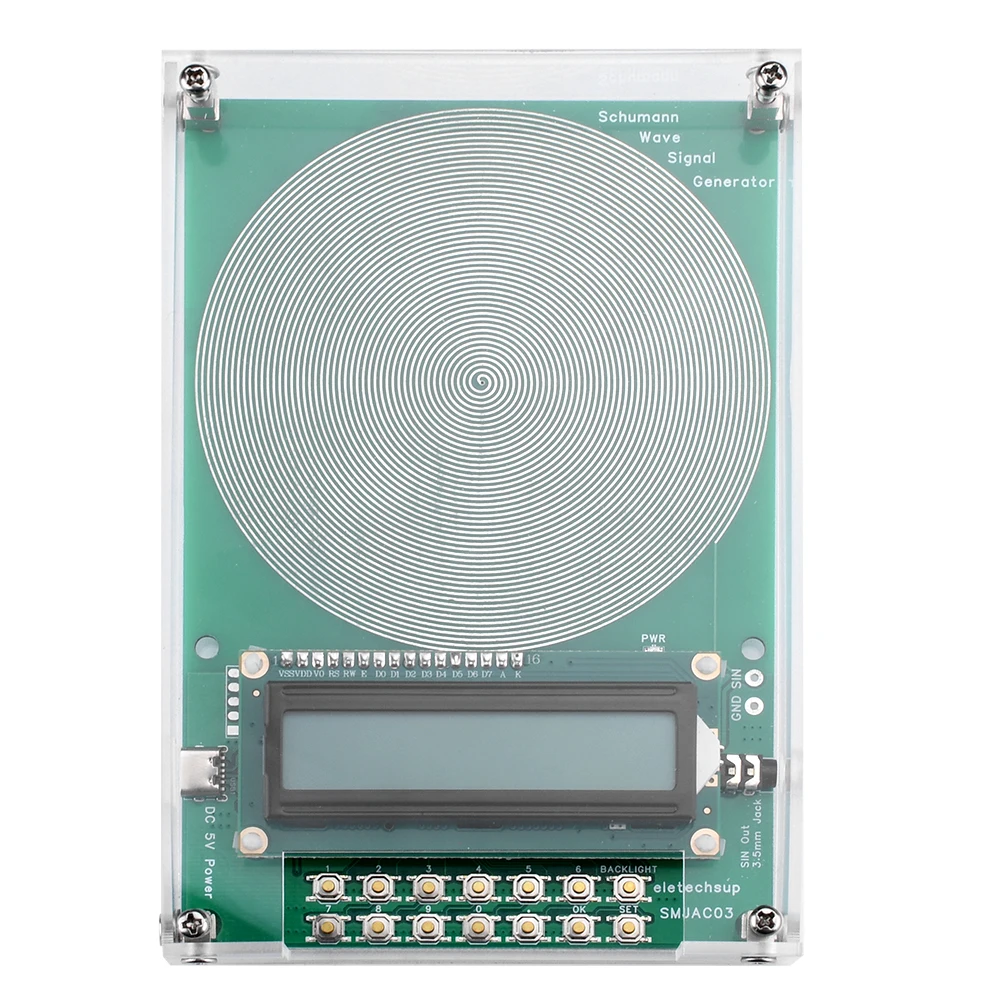

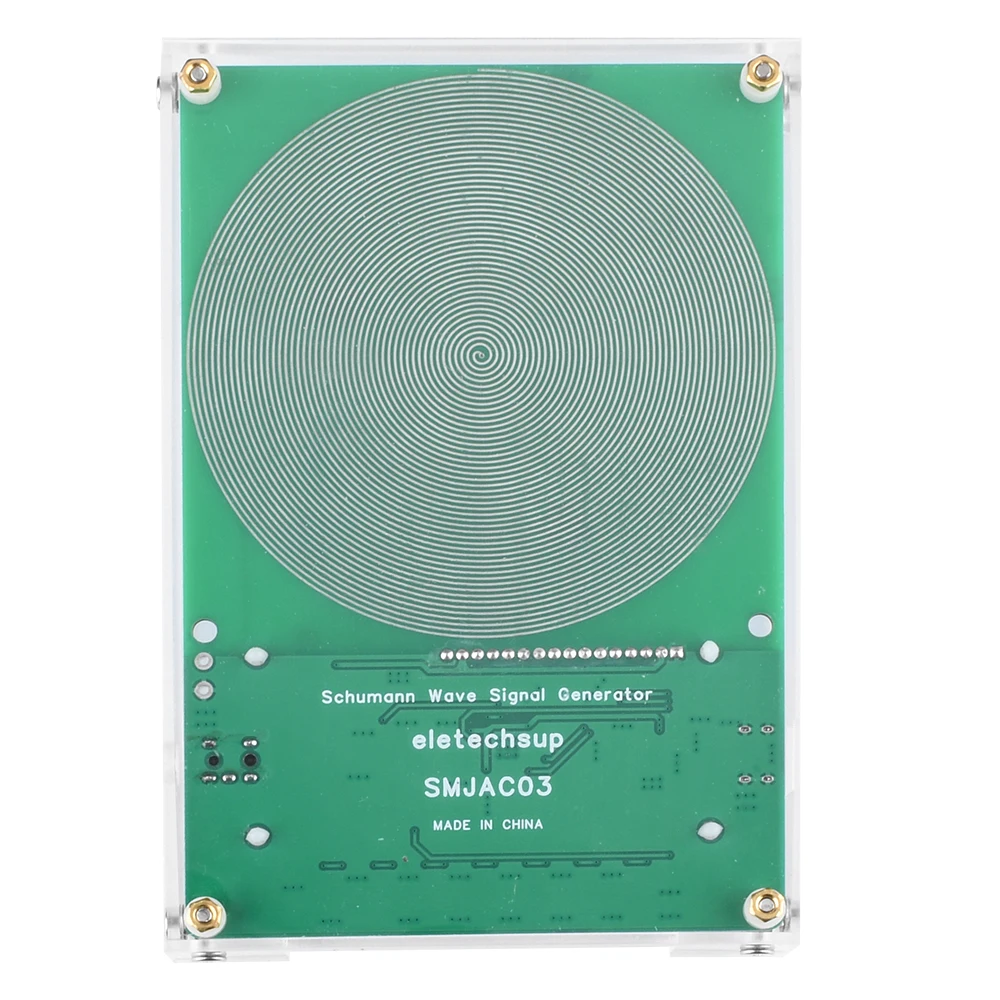

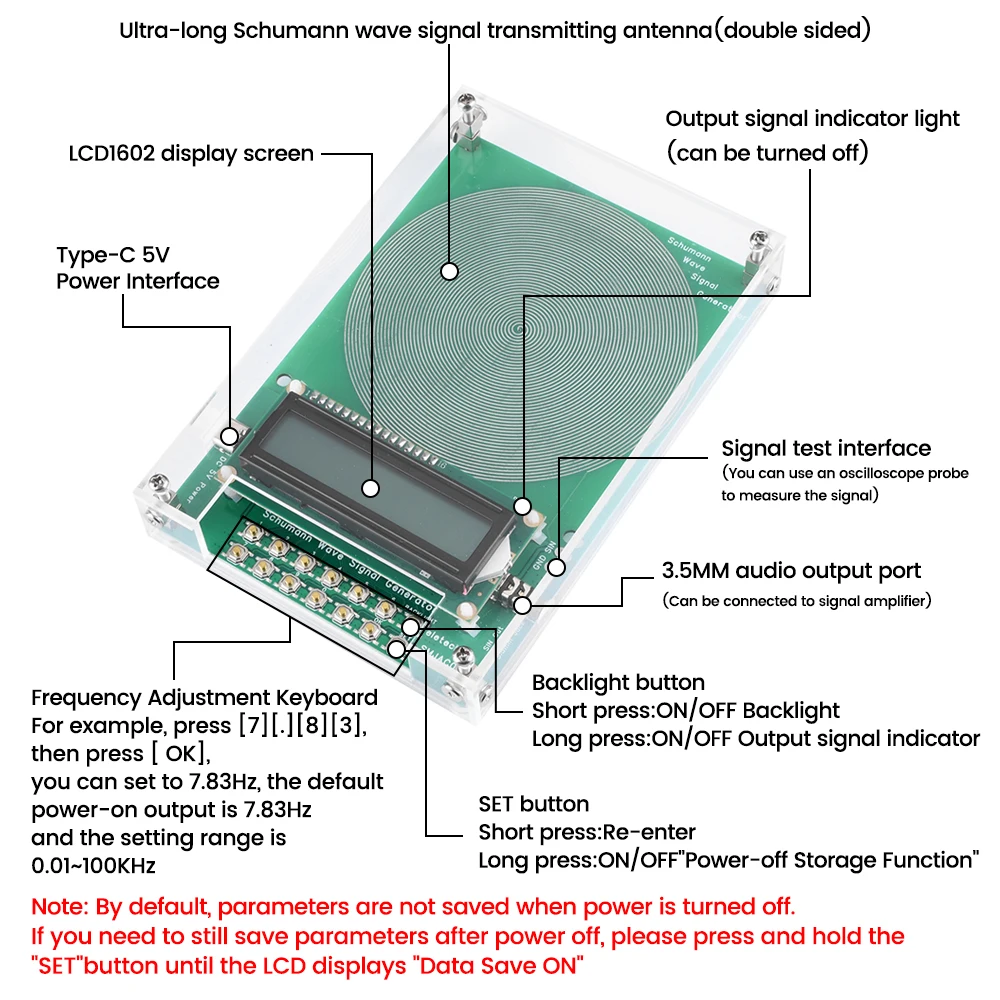

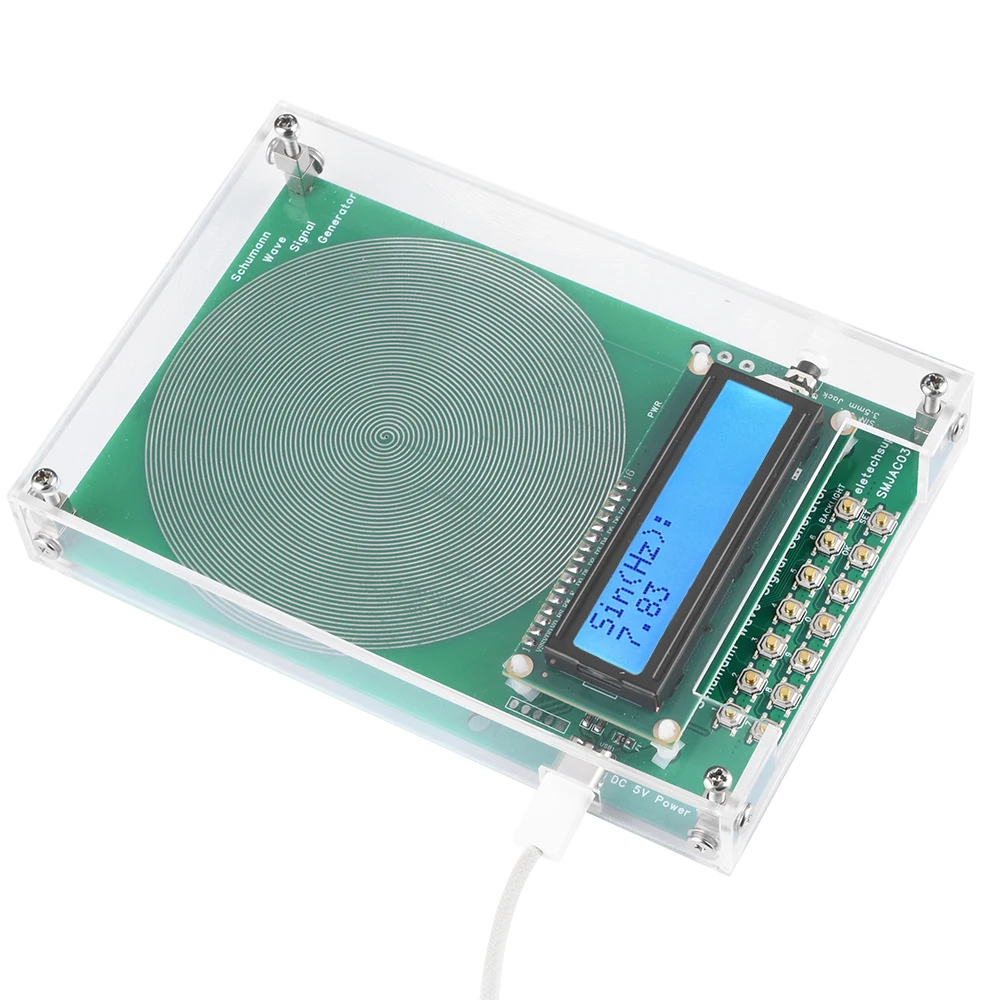

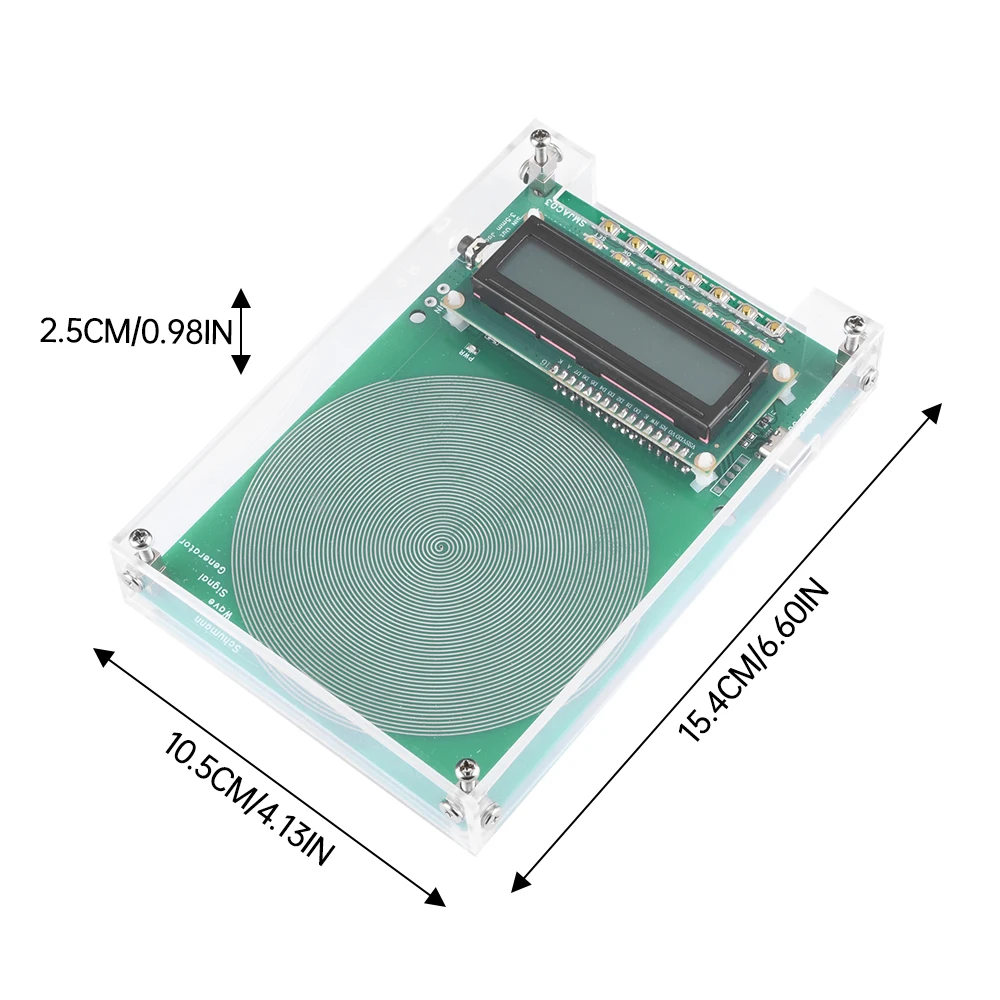

with acrylic case:

Working voltage: DC 5V (DC 4-15V)

Working current: 9-14mA

Power interface: Type-c (Support Type-c to Type-c power supply)

Default frequency: 7.83Hz

Adjustment range: 0.01Hz~100000Hz pure sine wave

Signal voltage amplitude: 3V

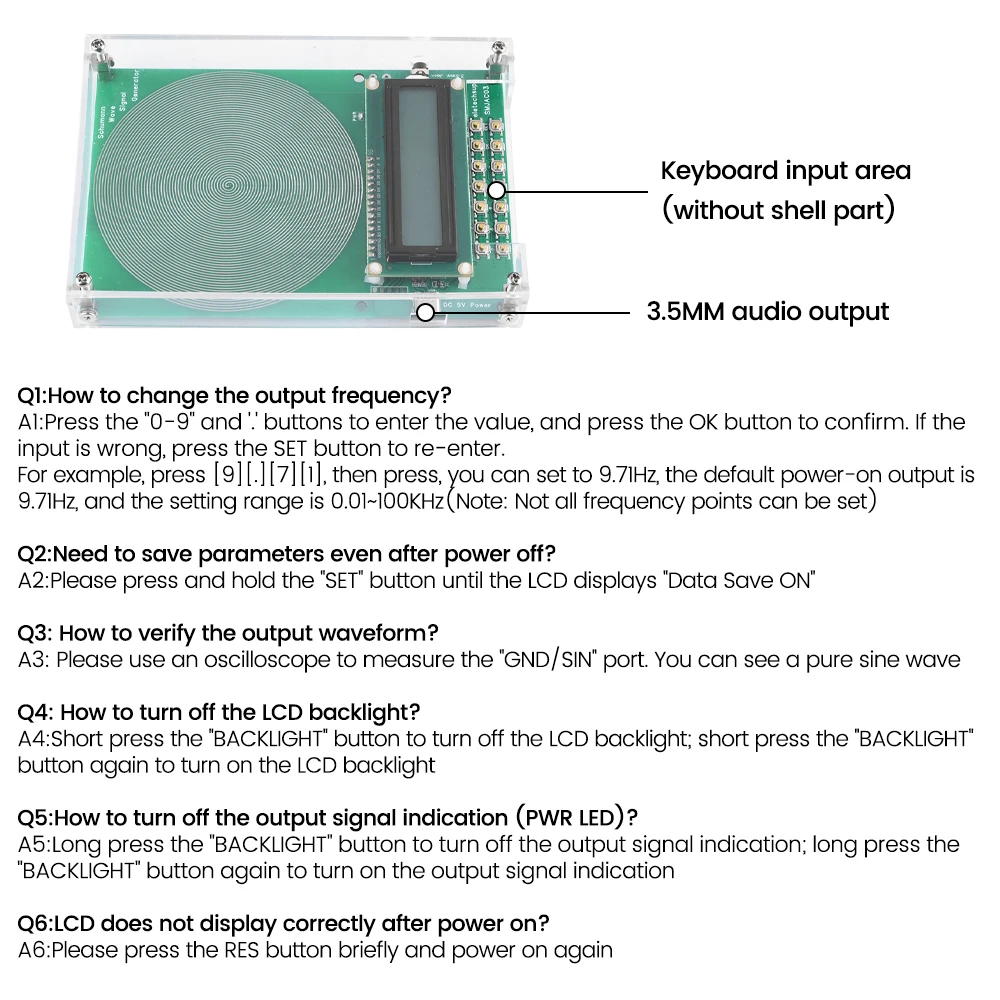

Has 3.5MM audio output interface

With acrylic housing

Size: 155*105*26MM (with shell)



Package Included:

1 x 7.83Hz Schumann Waves Resonance Generator Ultralow Frequency Pulse Audio Resonator Type-C Interface 0.01Hz~100000Hz Adjustable
