Description
SPECIFICATIONS
Brand Name: Gaqqee
Origin: Mainland China
DIY Supplies: ELECTRICAL
Display Size: 2.9 Inches & Under
Certification: CE
Model Number: -10-10V 0-10V Signal Source Signal Generator
Accuracy: 0.01V
Output Range: -10-10V
Feature 1: -10V-10V Voltage Signal Generator
Feature 2: 0-10V Adjustable Current Voltage Simulator
Feature 3: 0-10V 0~5V Voltage Signal Generator
Feature 4: function generator
Feature 5: 0-10V Signal Generator
Feature 6: Signal Sources DAC Analog Output
Choice: yes
semi_Choice: yes

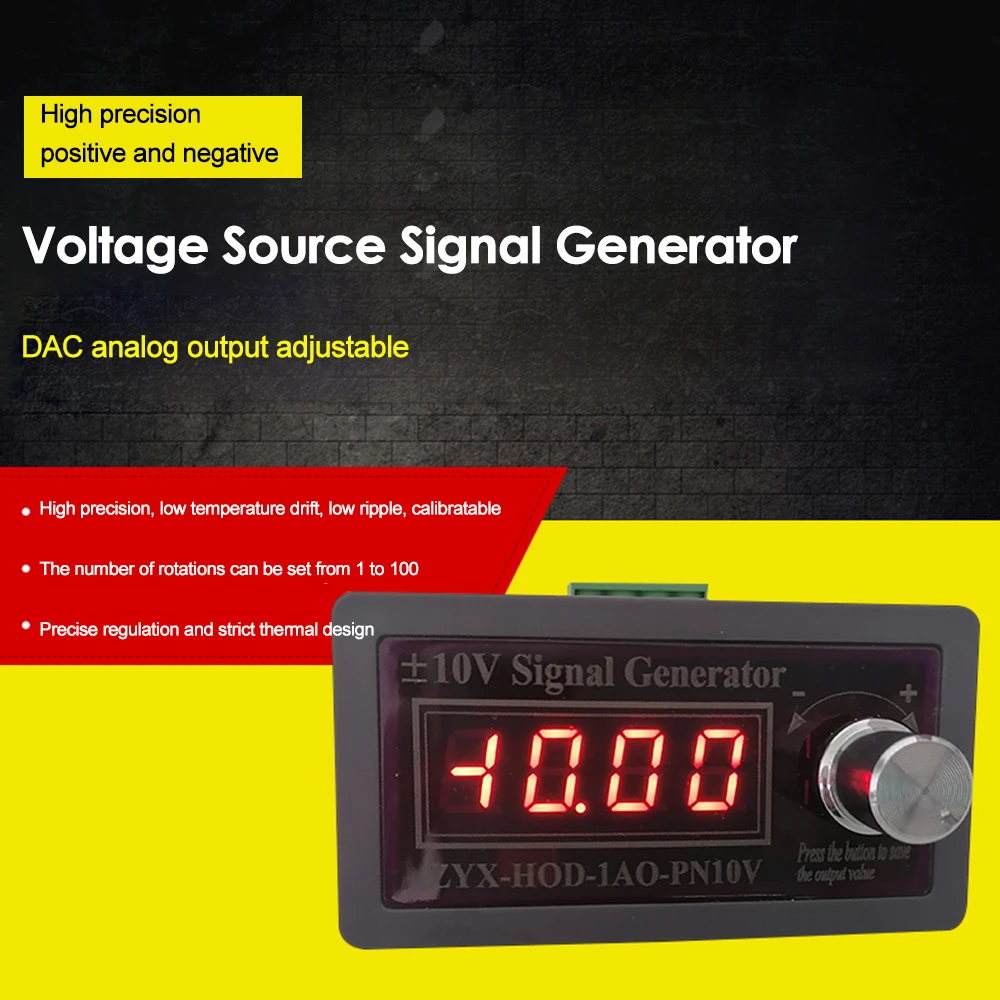

Features:
1.5MM large terminal, the required screwdriver is consistent with the conventional instrument, which is convenient for wiring;
2. Single power supply, internal dual power supply voltage regulation, high reliability, high precision; 3.4-bit 0.4-inch high-brightness large digital tube display, dedicated chip driver for clear display;
4. Coarse and fine-tuning mode can be set, and the number of turns can be set, which is convenient for quick and precise adjustment;

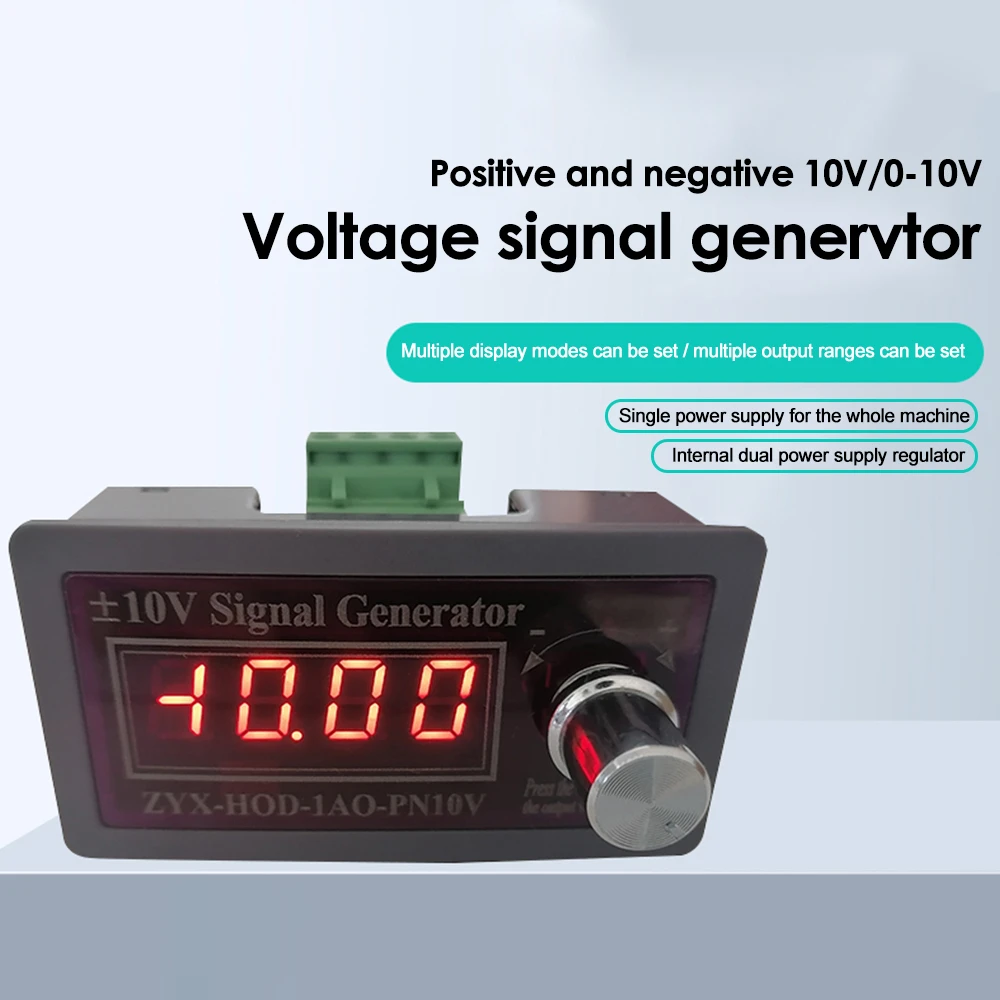

5. The output range can be set: ±10V, ±5V, 0~10V, -10~0V, 0~5V, etc.;
6. The display mode can be set: actual voltage/0-100.0%/50Hz, just look at the value;
7. Linear output, can be calibrated, the actual output can be consistent with the customer equipment display;
8. Digital encoder, bright electroplating knob, durable and not affected by the environment;
9. Display accuracy 0.01V, output accuracy 0.01V, high-precision linear output;

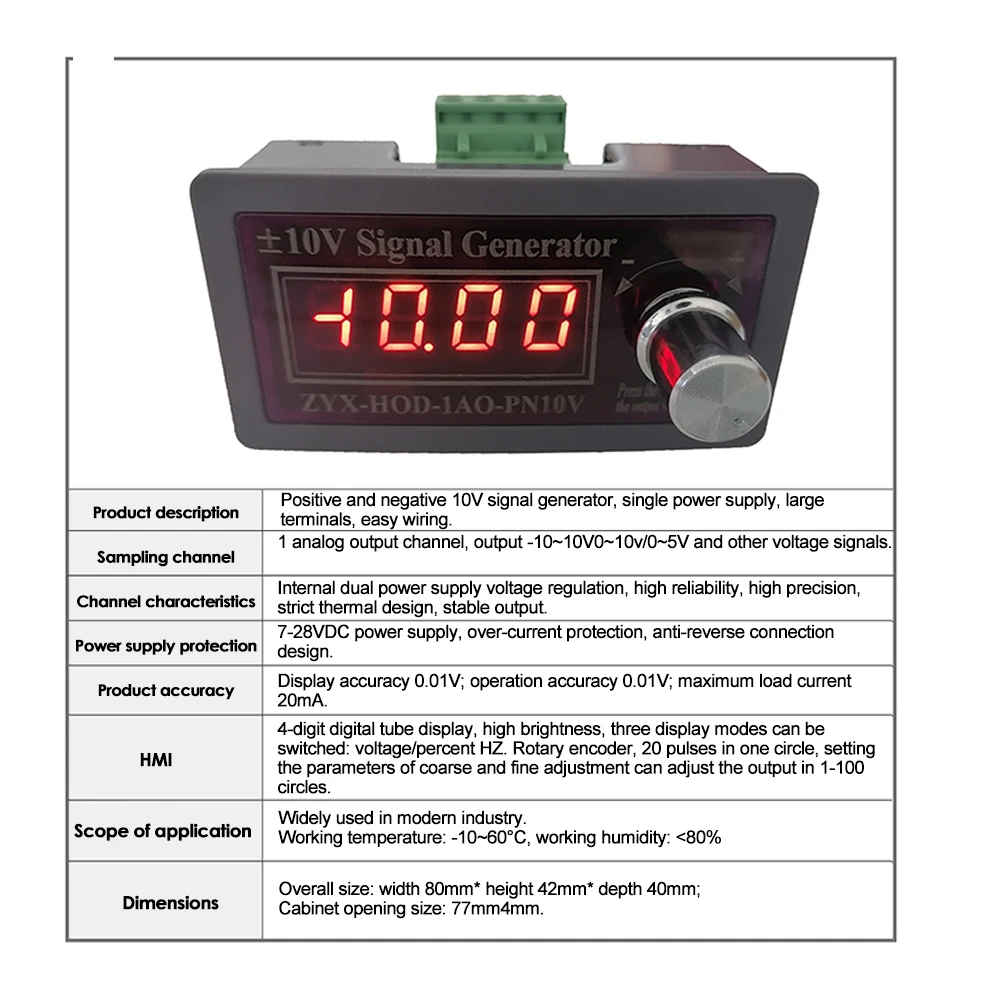

Product parameters:

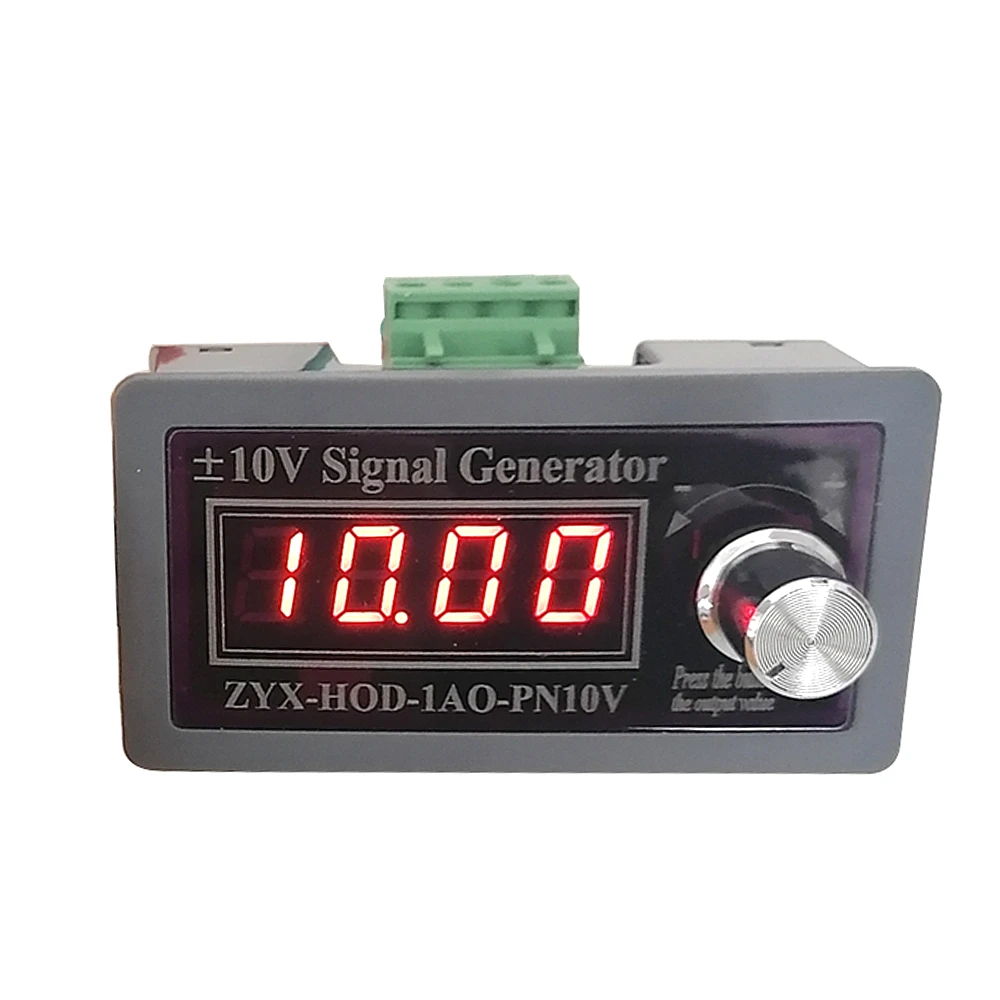

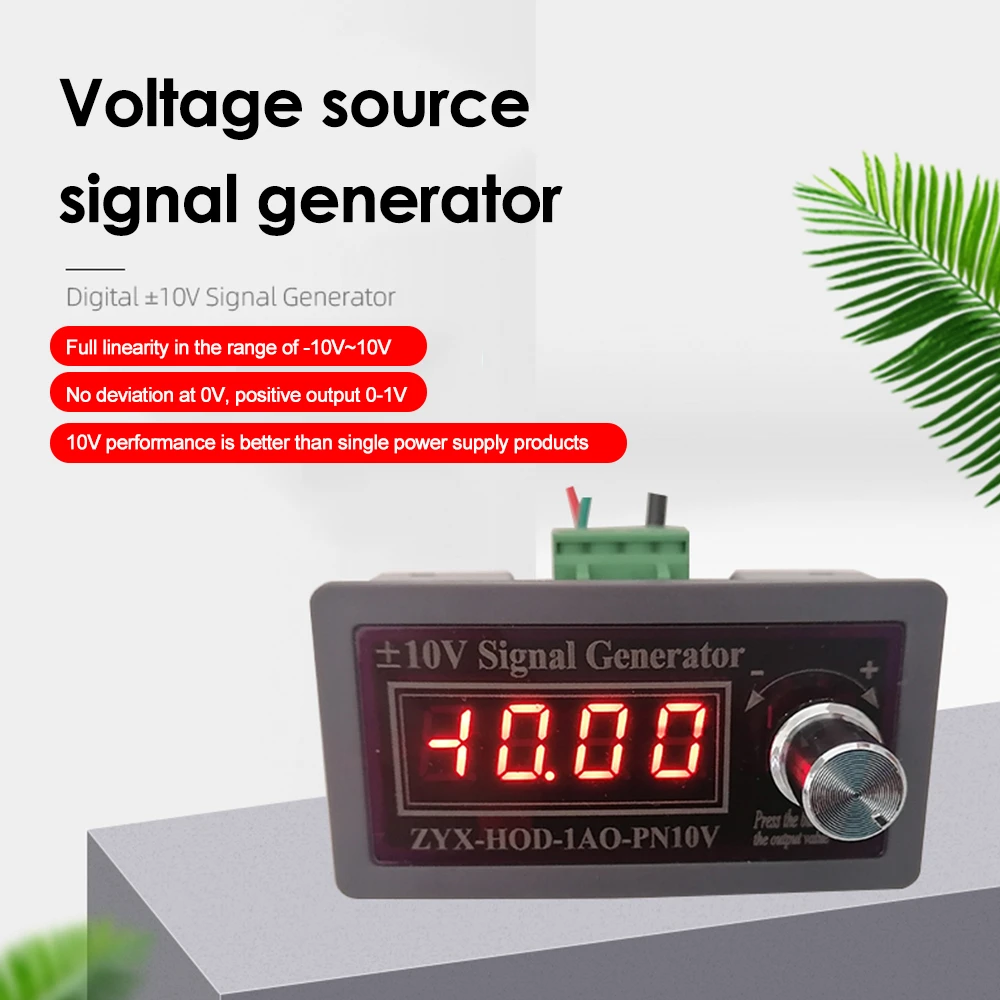

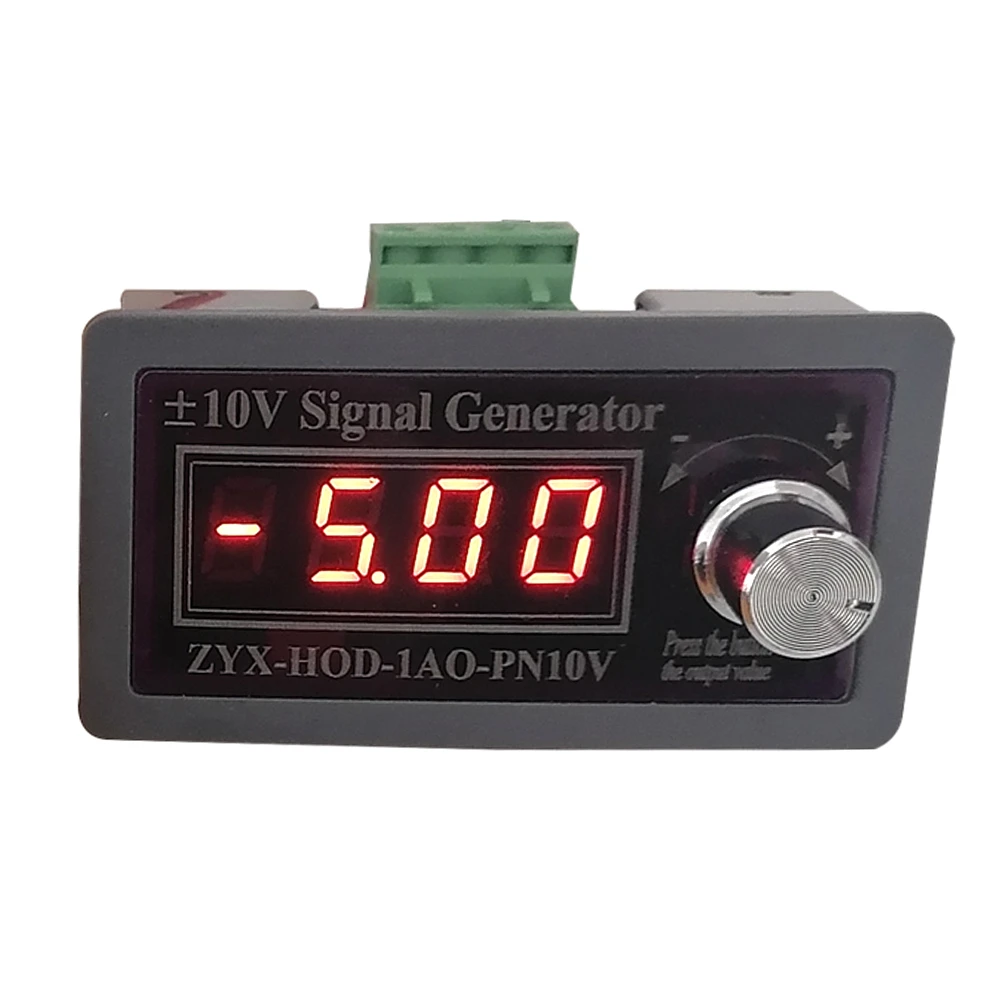

Product name: ±10V/0-10V voltage signal generator (optional)
Sampling channel: 1 analog output channel, output -10~10V/0~10V/0~5V and other voltage signals.
Channel characteristics: Internal dual power supply voltage regulation, high reliability, high precision, strict thermal design, stable output.
Power supply protection: 7-28VDC power supply, with over-current protection and anti-reverse connection design.
Product accuracy: display accuracy 0.01V; operation accuracy 0.01V; maximum load current 20mA.
Human-machine interface: 4-digit digital tube display, high brightness, three display modes can be switched: voltage/percentage/HZo
Rotary encoder, 20 pulses in one circle, setting the parameters of coarse and fine adjustment can adjust the output in 1-100 circles.
Scope of application: widely used in modern industry. Working temperature: -10~60°C, working humidity: <80%.
Packing list:
0-10V/±10V voltage signal generator*1
