SPECIFICATIONS

Brand Name: Aocoda-RC

Origin: Mainland China

Certification: CE

Gender: Unisex

Age Range: 14 Years & up

Use: Vehicles & Remote Control Toys

Place of Origin: China

Brand Name: Aocoda-RC

Model Number: H760

Size: 37*37mm

Type: FPV Racing Drone

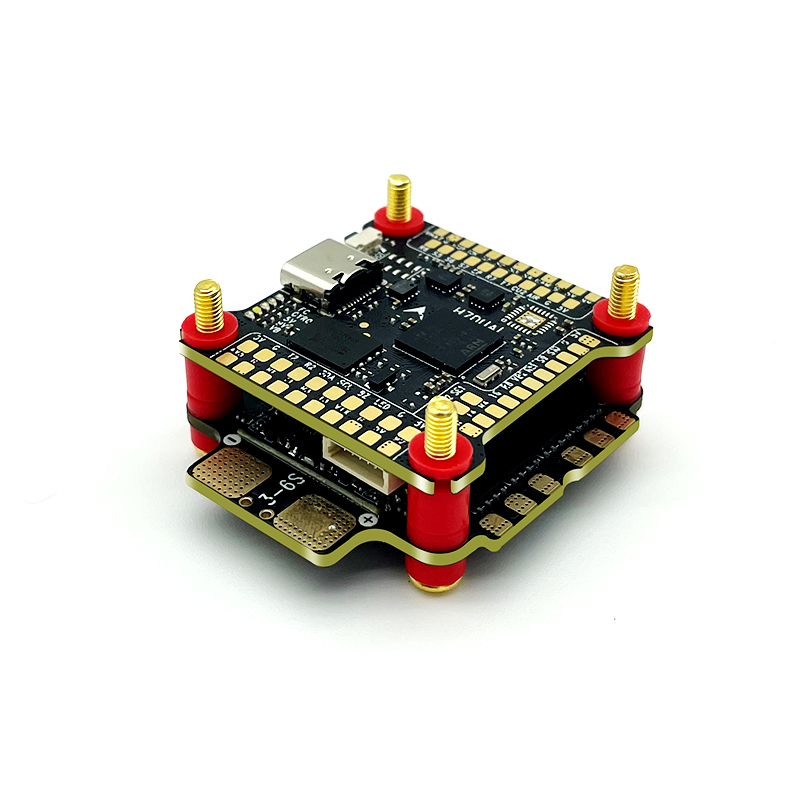

Aocoda-RC BEETLE H760D STACK  H743  Flight Controller  60A Blheli32 4in1 ESC

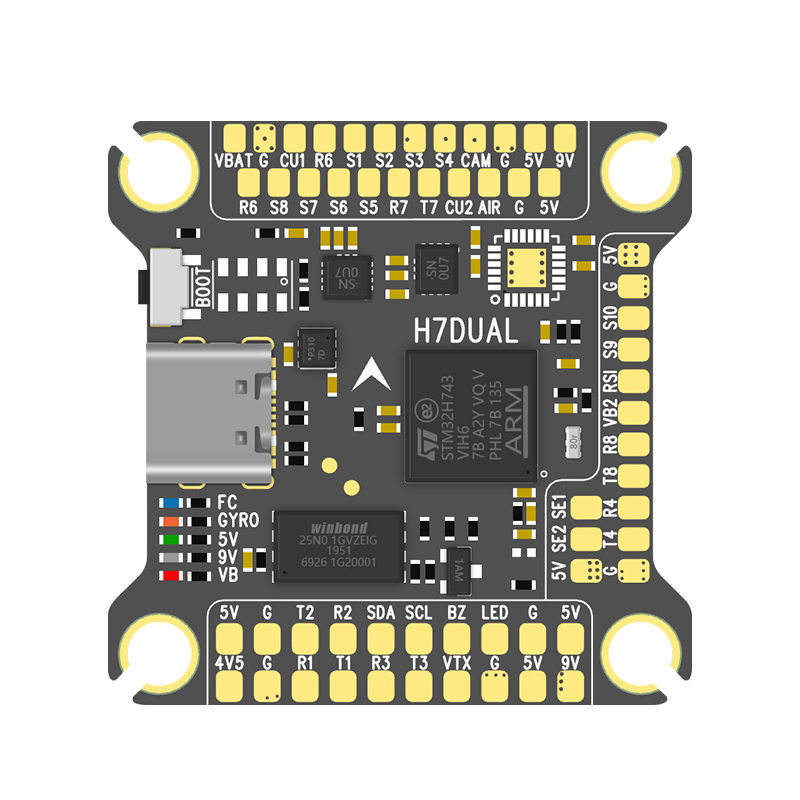

FC Specifcations
MCU: STM32H743VIH6
Gyroscope: BMI270 X2
Barometer: BMP280DPS310MS5611(Optional)
BlackBox: 128MB
Motor output: 10ch
Servo outport: 2ch
Serial port: 8ch
input voltage: 3-6SLipo
BEC: 5V/2.5A,9V/3A
Dimensions: 37mmX37mm
Installing Hole: 30.5mmX30.5mm
Weight: 8.8g
Firmware name: AOCODARCH7DUAL

Accessory part
Aocoda-RC BEETLE H7DUAL BMI270  X1
8PIN SH1.0 Signal Wires X2
M3*8 Shock absorbing ball X4

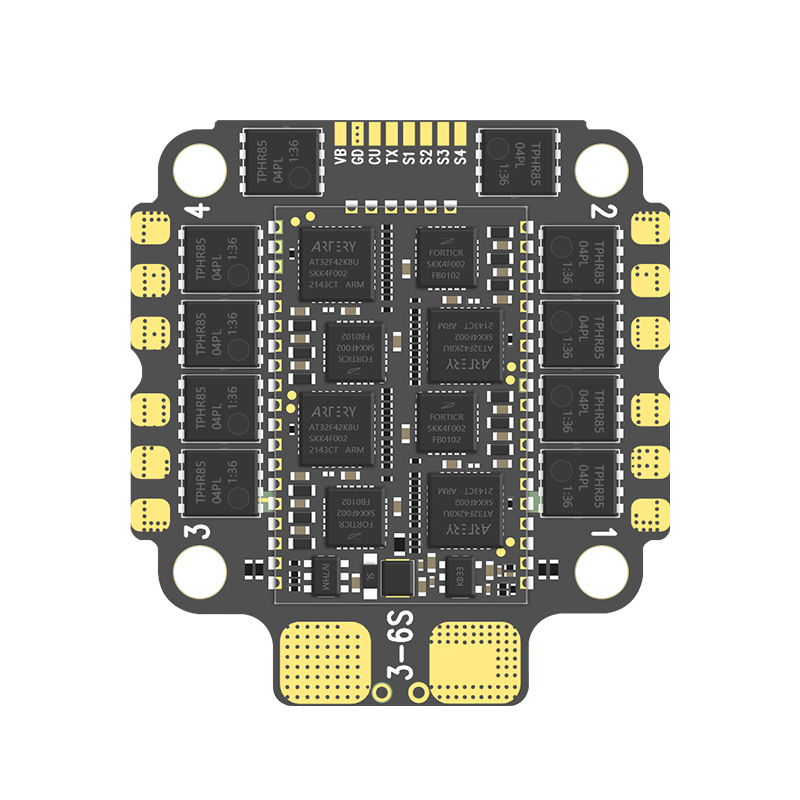

ESC Specifications
Continuous Current: 60AX4
Burst Current: 70AX4
Input Voltage: 3-6S LiPo
ESC Protocol: Dshot150/300/600/1200&MultiShot/Proshot/PWMetc
ESC Telemetry: support
Amperage meter: support scale ratio 140 offset-1500
BEC: No output
Dimensions: 41mmX44.5mm
Installing Hole: M330.5mmX30.5mm

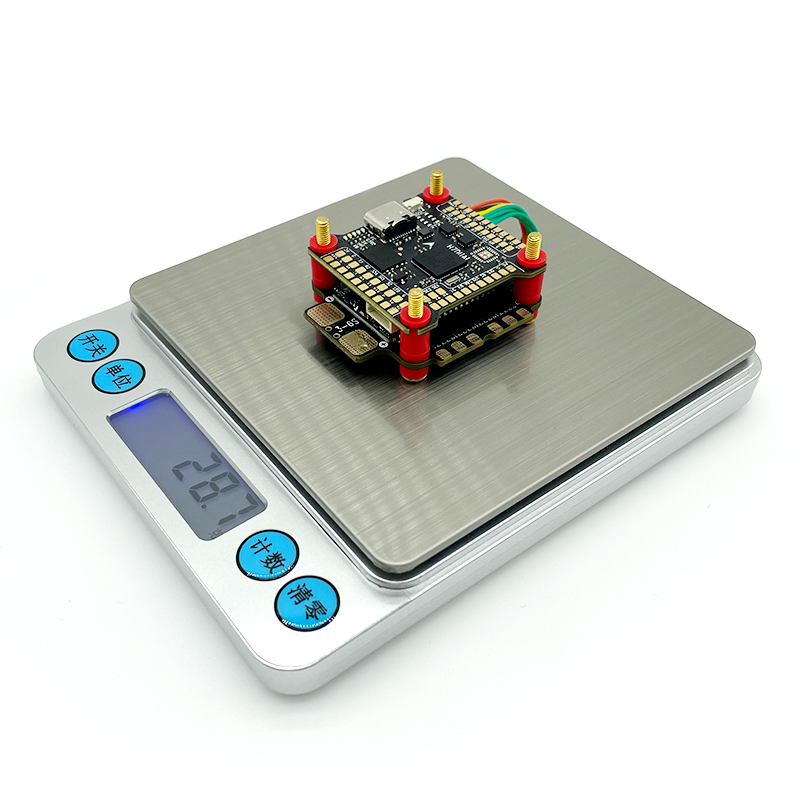

Weight: 13.8g
The firmware: AocodaRC-BL32-4IN1-60A

Accessories list
Aocoda-RC BEETLE 4in1 ESC X1
M3*8 Shock absorbing ball X5
Electrolytic capacitor:470uF 35VX1
8PIN SH1.0 Signal Wires X1
M3 Nylon nuts X4
12AWG Power cables X1
