Description
SPECIFICATIONS
Brand Name: Aideepen
Origin: Mainland China
DIY Supplies: ELECTRICAL
Certification: CE
Model Number: 0-10V Voltage Signal Generator
Supply voltage: DC15V~30V
Output voltage: 0V~10V
Load capacity: maximum output current of 0.2A
Adjustment accuracy: 0.01V
Output accuracy: 0.01V
Display element: 4-digit 0.4-inch digital tube
Working temperature: -10~60℃
Feature1: back cover protection
Feature2: Strict thermal design
Feature3: High precision
Feature4: strong load
Feature5: programmable

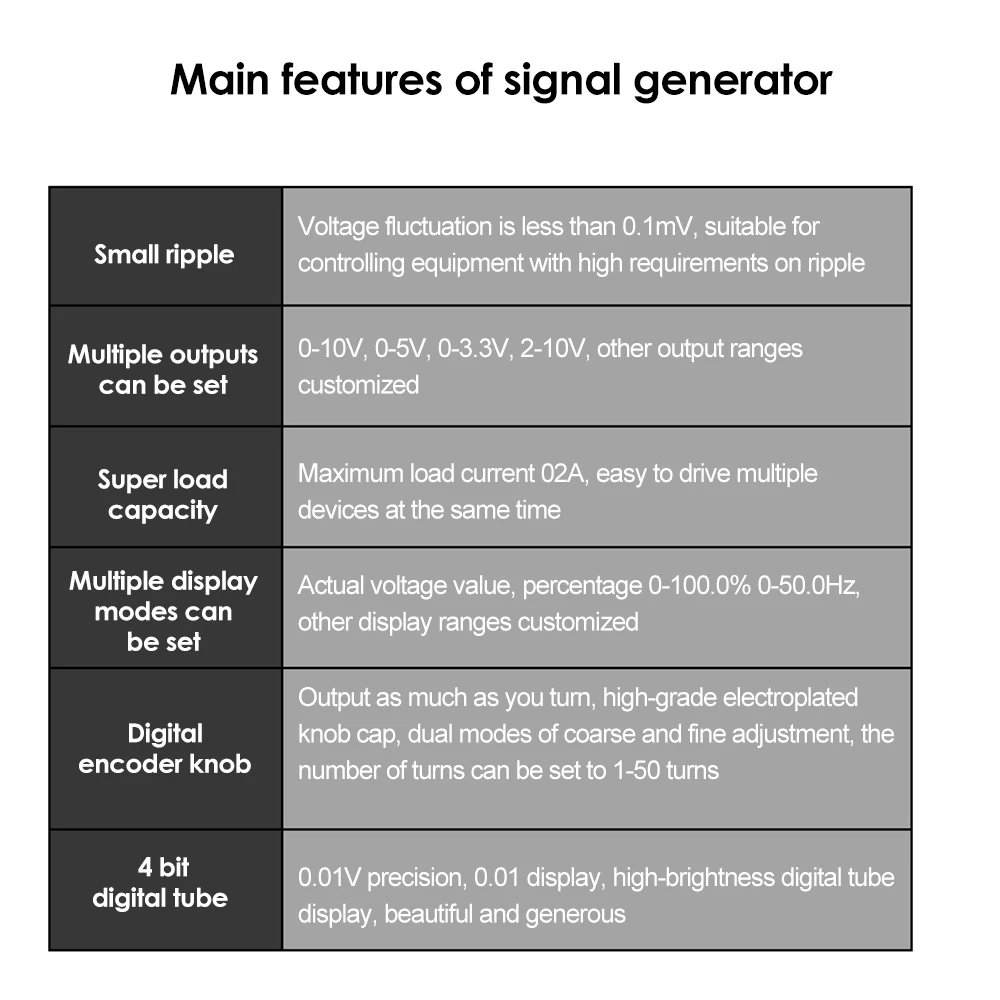

Features:
1. Strong practicability and wide range of uses to ensure stable and long-term effect

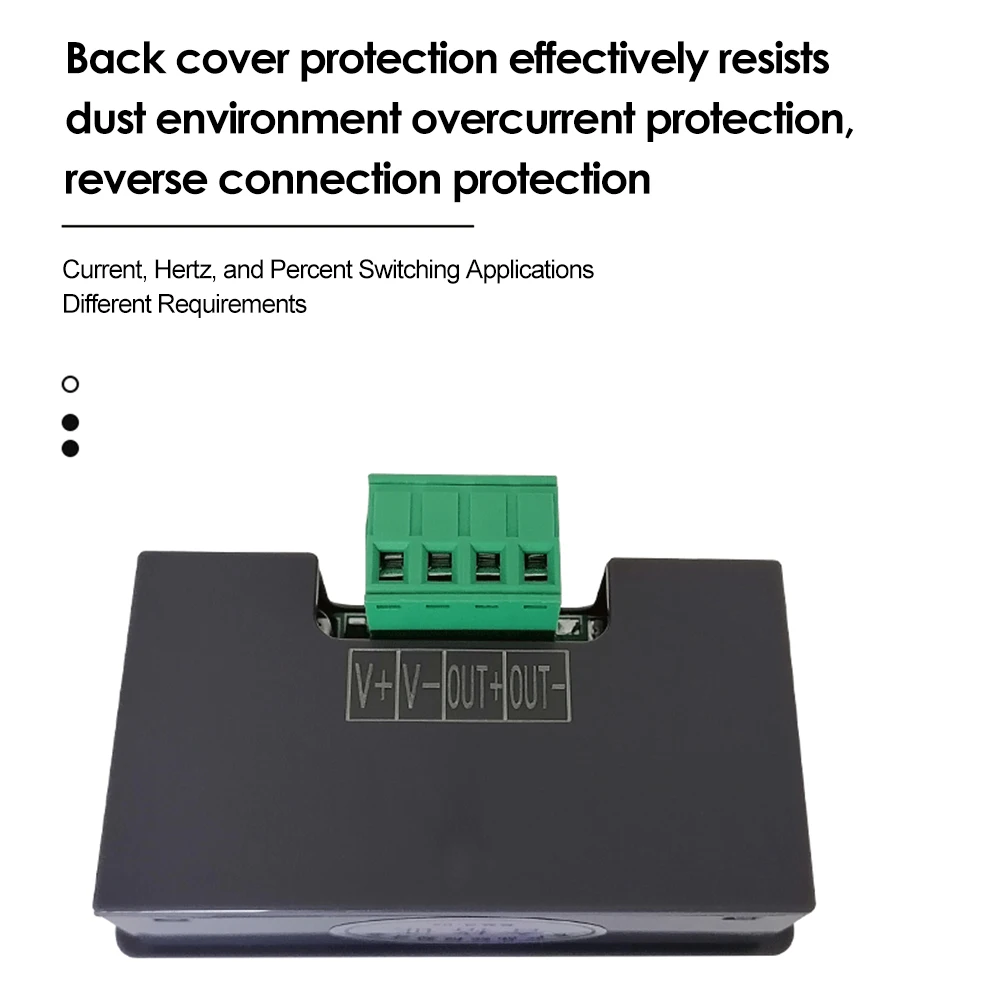

2. The back cover protection effectively resists dust environment overcurrent protection, reverse connection protection
3. Strict thermal design, stable output and long service life
4. High precision, strong load, programmable
5. The number of calibratable rotation circles can be set to 1-50 circles

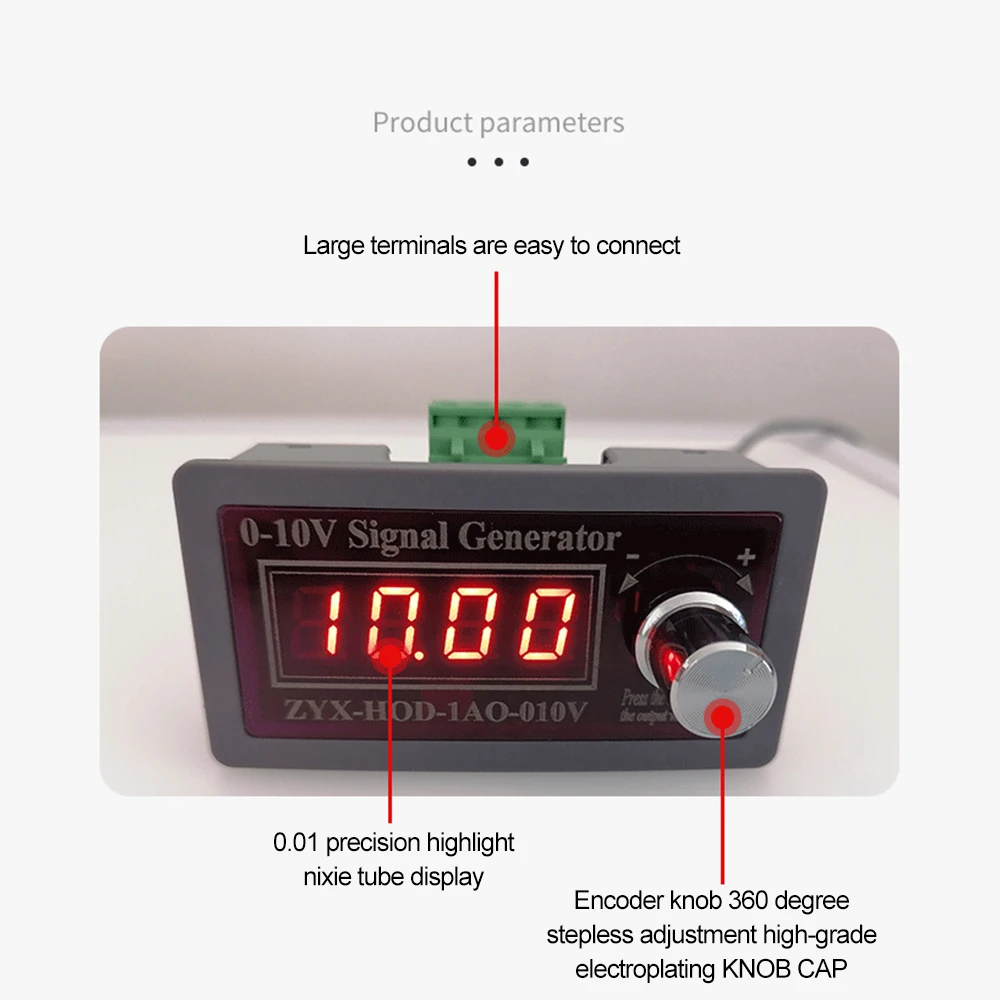

Product Parameters:
Product name: 0-3.3V 10V voltage signal generator, large terminal, easy wiring
Supply voltage: DC15V~30V
Output voltage: 0V~10V
Load capacity: maximum output current of 0.2A
Adjustment accuracy: 0.01V
Output accuracy: 0.01V
Display element: 4-digit 0.4-inch digital tube
Working temperature: -10~60℃
Packing List:
0-10V Voltage Signal Generator*1
