Description
SPECIFICATIONS
Input voltage: USB 5V,AC/DC 7V-32V,AC85-250V
APP: Smart Life / Tuya Smart
Feature 1: Work with Alexa
Feature 2: Work with Google home
Feature 3: Inching/Self-locking/Interlock Relay
Feature 4: Timing Schedules
Name 1: smart home remote
Name 2: smart wifi relay
Name 3: google home module
Name 4: smart relay
Name 5: google switch
Name 6: smart relay wifi
Name 7: smart relay wifi
Name 8: remote control relays
Name 9: switch wifi switch
Name 10: switch wifi switch
Name 11: switch wifi switch
Name 12: wireless relay module
Name 13: wireless relay module
Name 14: wifi smart switch
Brand Name: Scimagic-RC
Model Number: WIFI smart switch
Origin: Mainland China
Certification: CE
Choice: yes
semi_Choice: yes

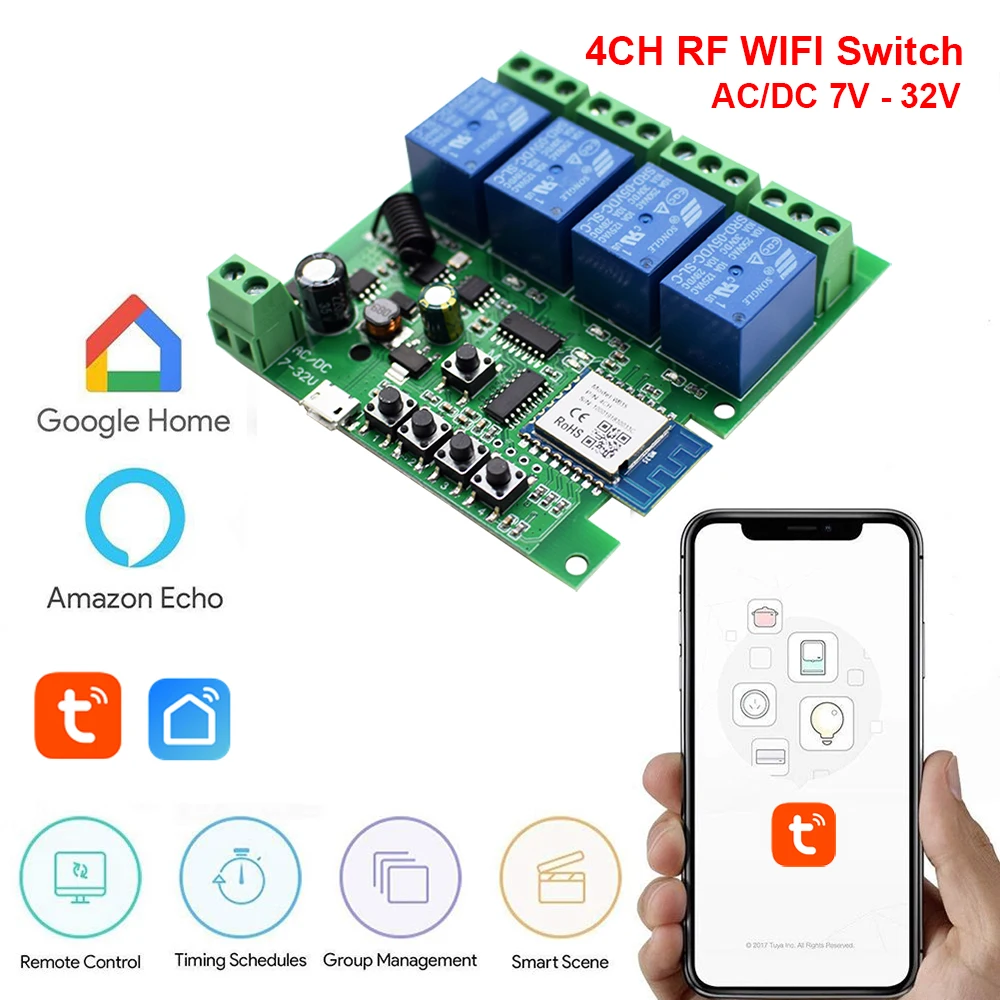

Wifi 4 Channel Relay (Three Working Modes)
Use for
1.Remotely give a pulse signal to turn on/off Lights,Lamps and other home appliance.
2.Remotely give a pulse signal to turn on/off Garage Door,Door Access
3.Remotely give a pulse signal to control DC Motor,AC Motor to Forward and Reverse
Overview:

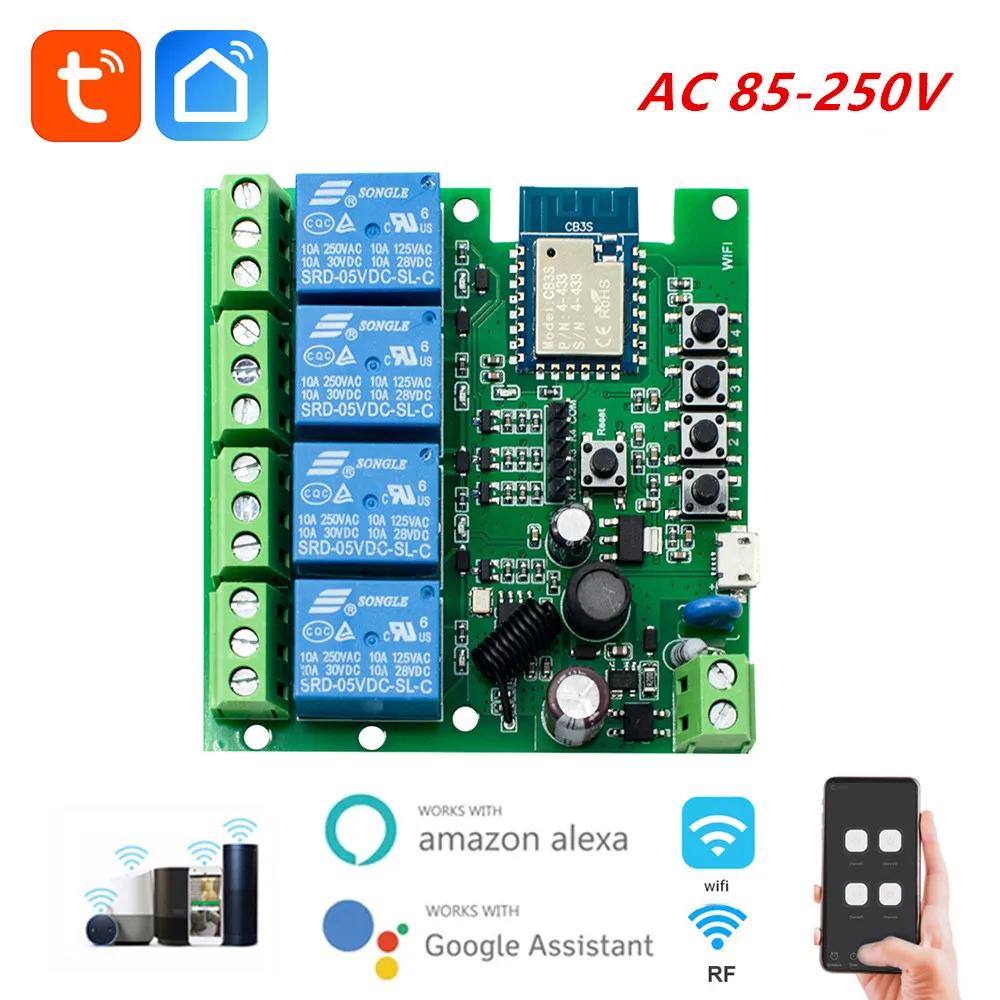

This product is a 4 channels universal WiFi wireless smart switch with RF 433MHz module, for your smart home system to remotely and automatically turn on/off home appliances and electronic devices by phone APP. It also can be controlled by RF remote controller indoors. It can connect and control four appliances on APP at the same time, and you can independently turn on/off each of the four gangs. It also supports timing turning on/off the appliances at a specified time, and share to others so that you can control your smart home together with your family. You can also voice control your home appliances by Amazon Alexa, and for Google Home/Nest,IFTTT, and enjoy intelligent life and make your home smarter.
Features:
*App Support: Free iOS and for Android mobile Tuya APP/Smart Life APP.
*Sync Status: Real-time device status provided to App.
*Remote ON/OFF: Turn 4 electrical devices on/off remotely from anywhere.
*RF Remote control: Turn on/off by 433MHz RF Remote indoors.
*3 Working Modes: Switch among interlock/self-locking/inching modes.
*Independent control: Control each gang separately in Tuya APP/Smart Life APP.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, Garage door opener，Motor,etc.
*Timing: Supports 8 enabled countdown/single/repeat timing tasks to turn on/off at specified time.
*DIN Rail Mounted: Great for industrial control.
*Voice Control: Compatible perfectly with Amazon Alexa, for Google Home, for Google Nest,IFTTT.
*Share Control: Control your smart home together with your family.
Specifications:
Input voltage : DC/AC 7-32V , AC85-250V,Micro USB 5V input.
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.
What can I use it for?
*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off
*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY
Noted :
Your have the correct wifi password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 0.5s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).
Special Note.
This smart switch is only compatible with 433MHz learning code remote controls.
It is highly recommended that you purchase my remote control.
It is not compatible with scroll code or clone code remotes.
Include:
Type 1 , Type 3:
1* wifi module (without shell)
1* manual
Type 2 , Type 4:
1* wifi module (without shell)
1* manual
1*Remote control (without battery)
Type 5 , Type 7：
1* wifi module (Shell included)
1* manual
Type 6 , Type 8：
1* wifi module (Shell included)
1* manual
1*Remote control (without battery)
Type 9 :
1*Remote control (without battery)
Type 10：
2*Remote control (without battery)
APP Control From Anywhere
You can rermote control smart device via mobile phone APP antytime and anywhere.
Family Sharing
Share the control with family member.Enjoy the convenience and happiness together
Three control methods for easy control
Voice control, app control, remote control
Smart switch, bid farewell to traditional switching methods
