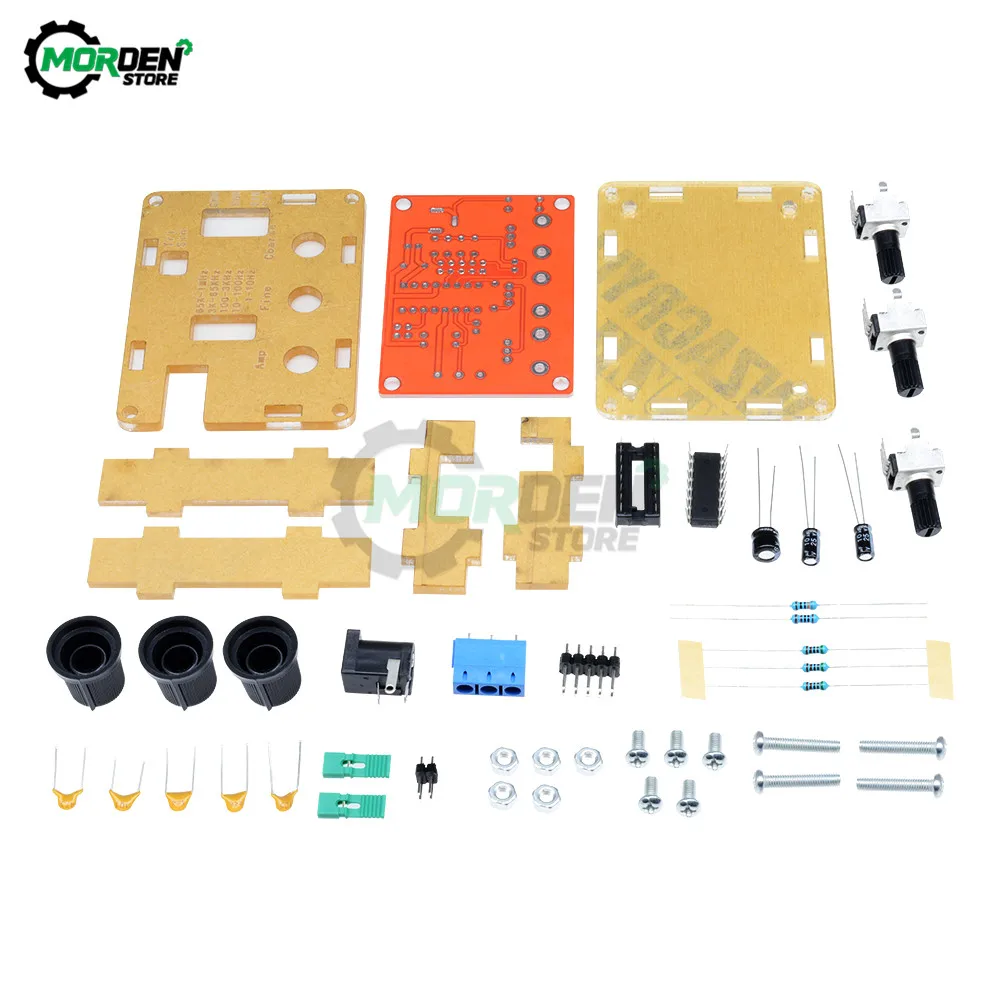

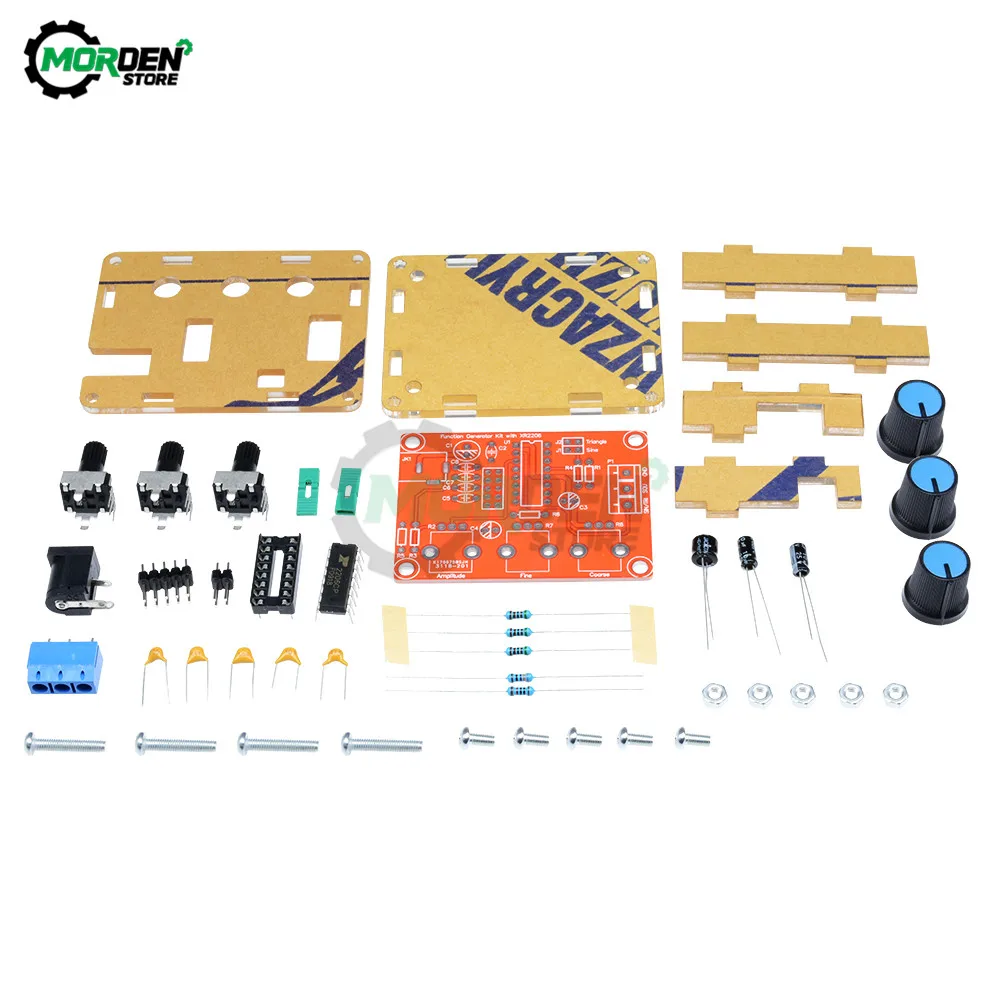

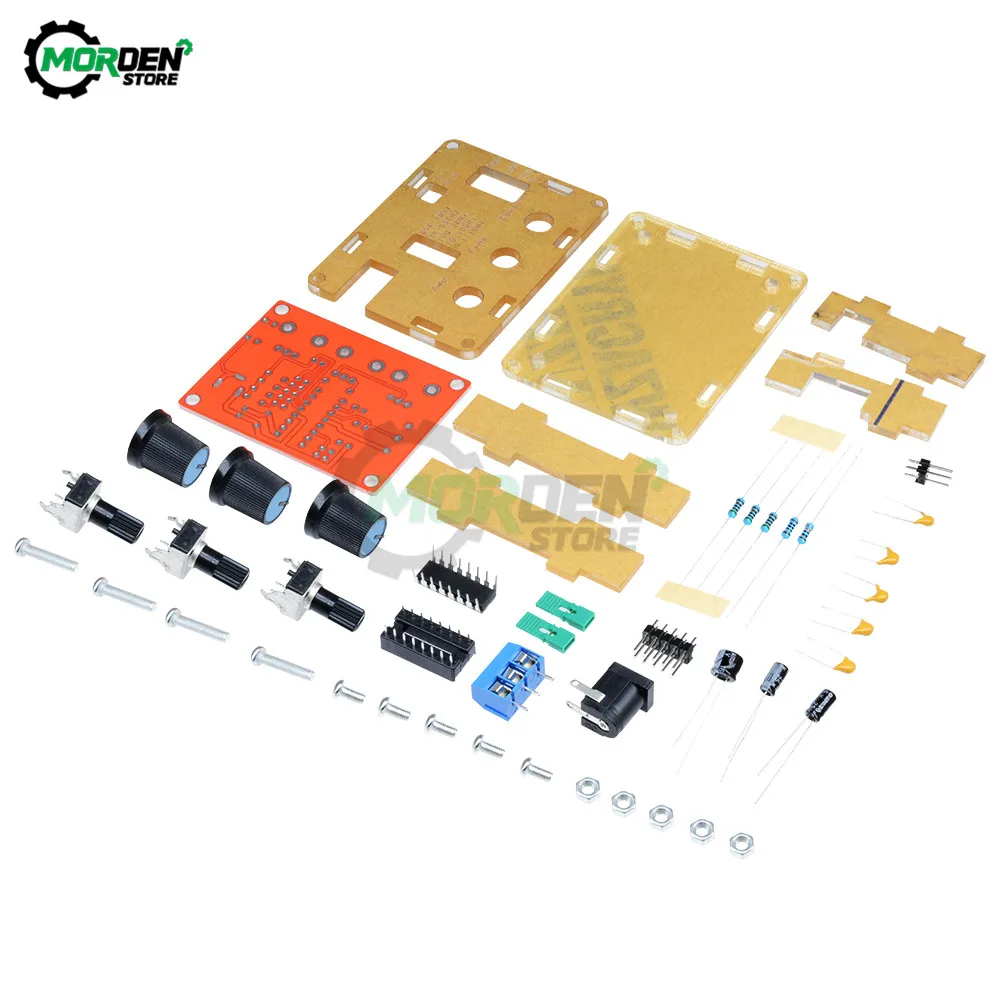

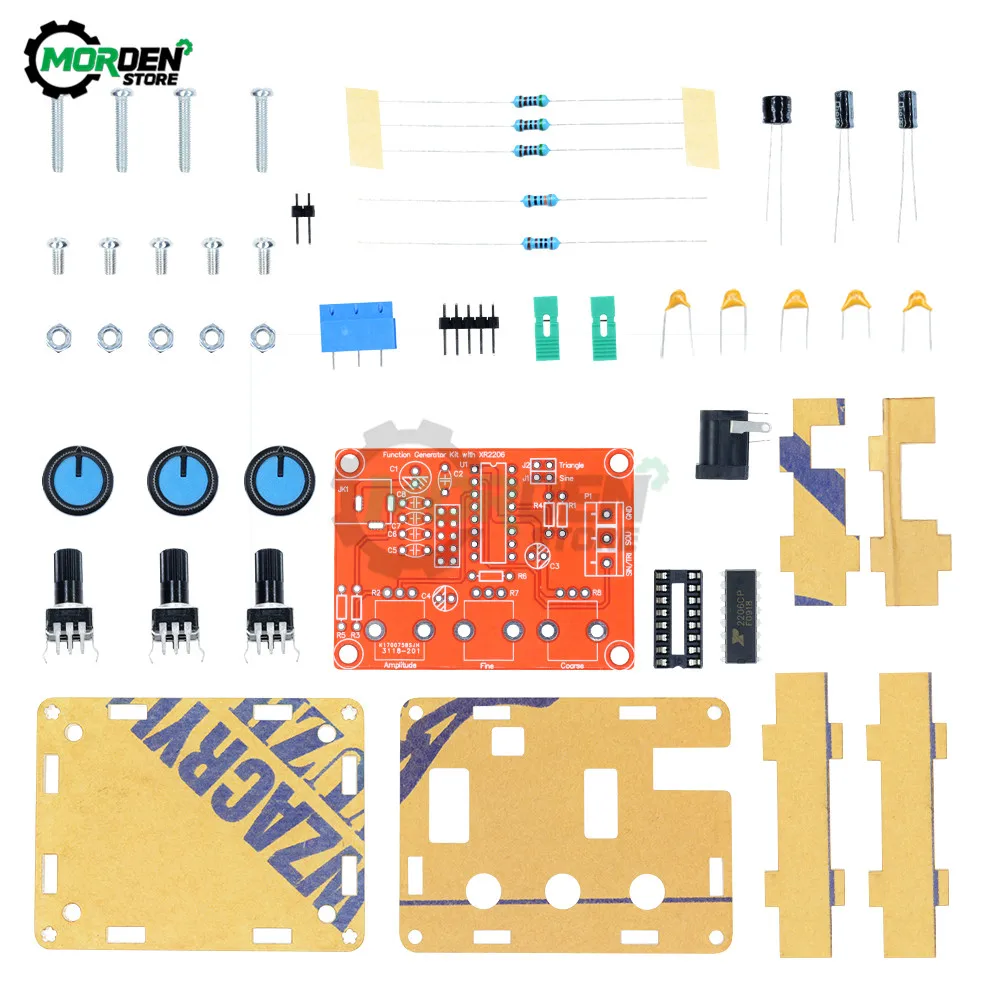

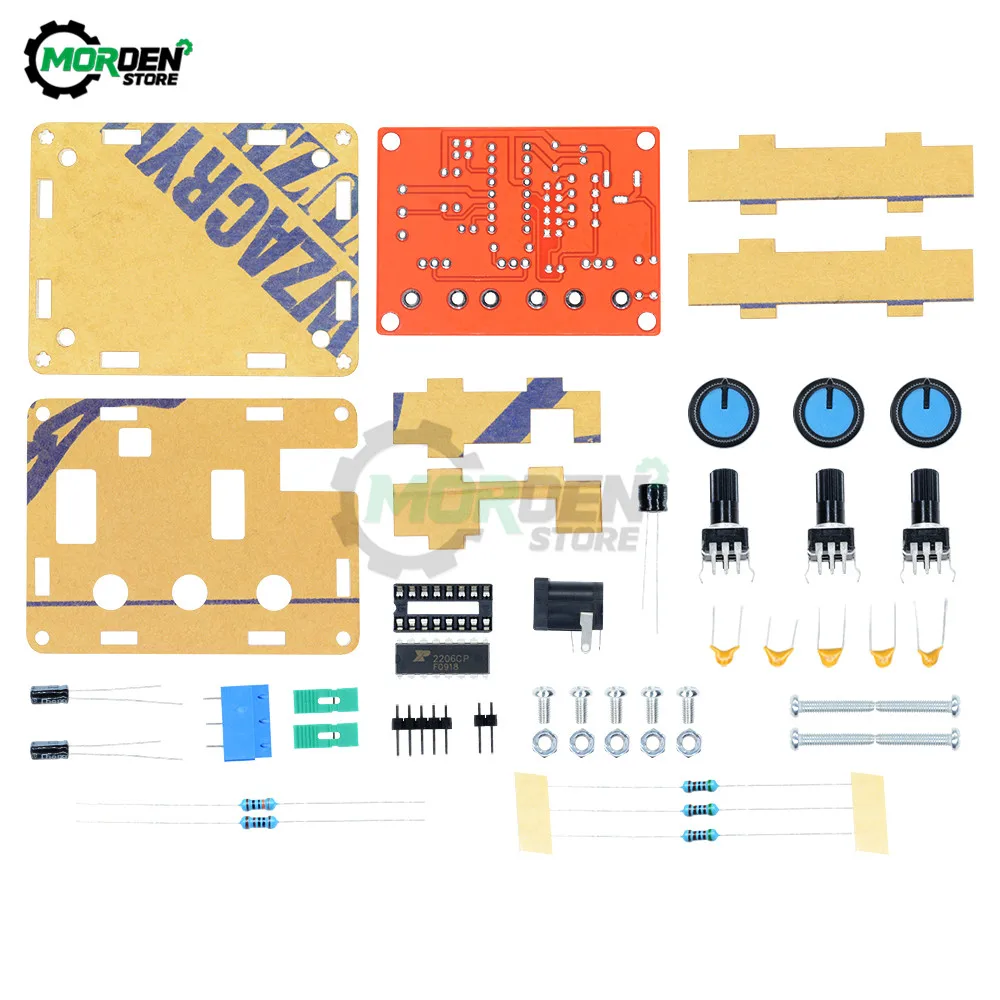

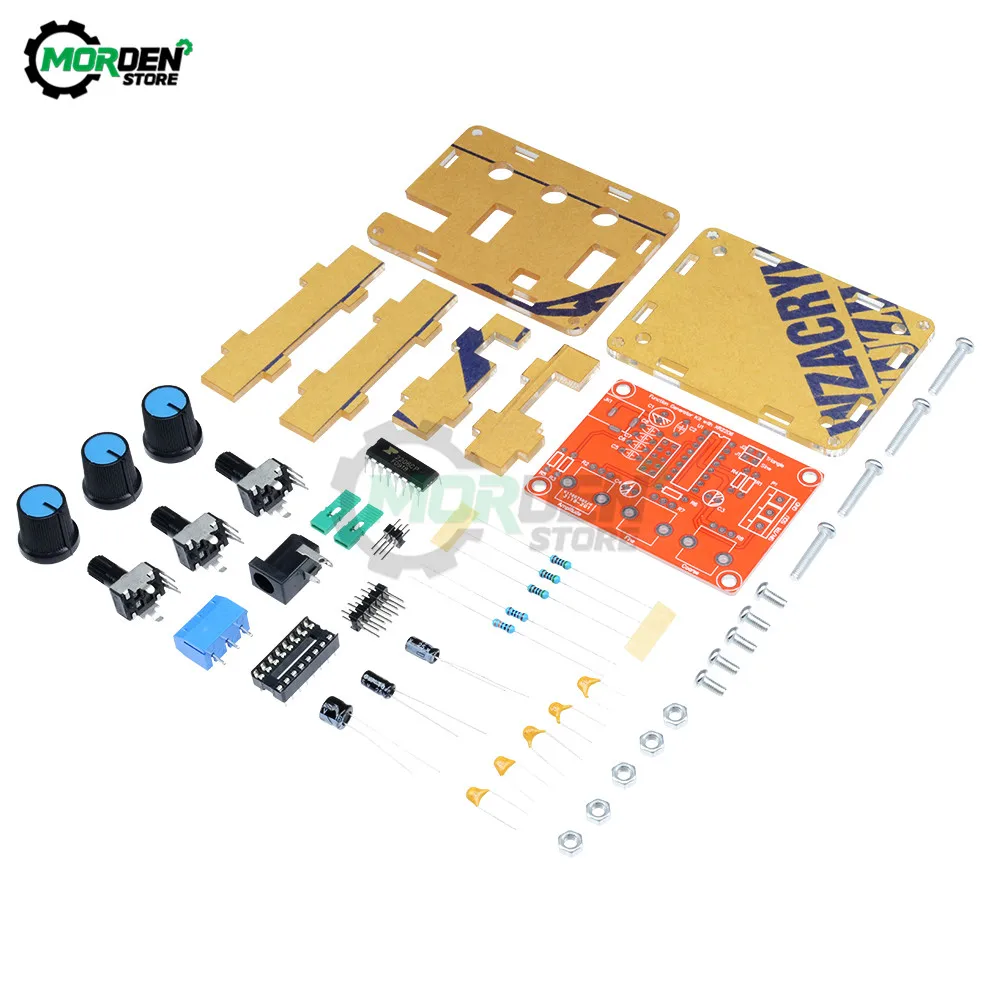

DC 9-12V XR2206 Function Signal Generator DIY Kit Sine/Triangle/Square Output 1Hz -1MHz Signal Generator Adjustable module

Save 7%

Price:
Sale price$11.14 Regular price$11.94
Stock:
In stock

Description

SPECIFICATIONS

Brand Name: Aideepen

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display Size: 2.9 Inches & Under

Certification: CE

Model Number: XR2206

Choice: yes

semi_Choice: yes

Feature:
Voltage Supply: 9-12V DC Input
Waveforms: Square, Sine & Triangle
Impedance: 600 Ohm + 10%
Frequency: 1Hz - 1MHz
SINE WAVE
Amplitude: 0 - 3V at 9V DC input
Distortion: Less than 1% (at 1kHz)
Flatness: +0.05dB 1Hz - 100kHz
SQUARE WAVE
Amplitude: 8V (no load) at 9V DC input
Rise Time: Less than 50ns (at 1kHz)
Fall Time: Less than 30ns (at 1kHz)
Symmetry: Less than 5% (at 1kHz)
TRIANGLE WAVE
Amplitude: 0 - 3V at 9V DC input
Linearity: Less than 1% (up to 100kHz) 10mA
