Description
SPECIFICATIONS
Brand Name: FNIRSI
Origin: Mainland China
Hign-concerned Chemical: None
DIY Supplies: ELECTRICAL
Display Size: 2.9 Inches & Under
Certification: CE
Model Number: SG-002

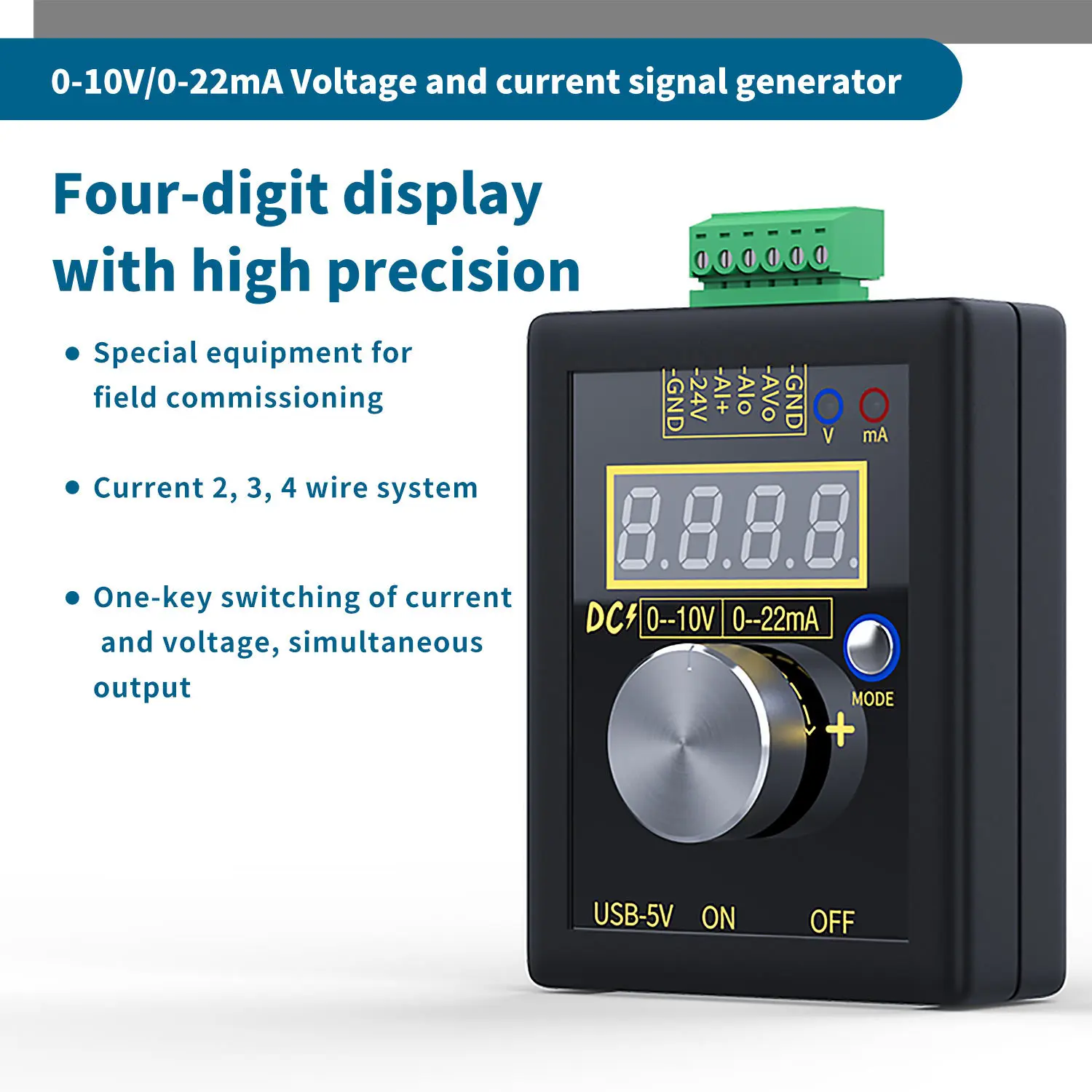

Digital 4-20mA 0-10V Voltage Signal Generator 0-20mA Current Transmitter Professional Electronic Measuring Instruments

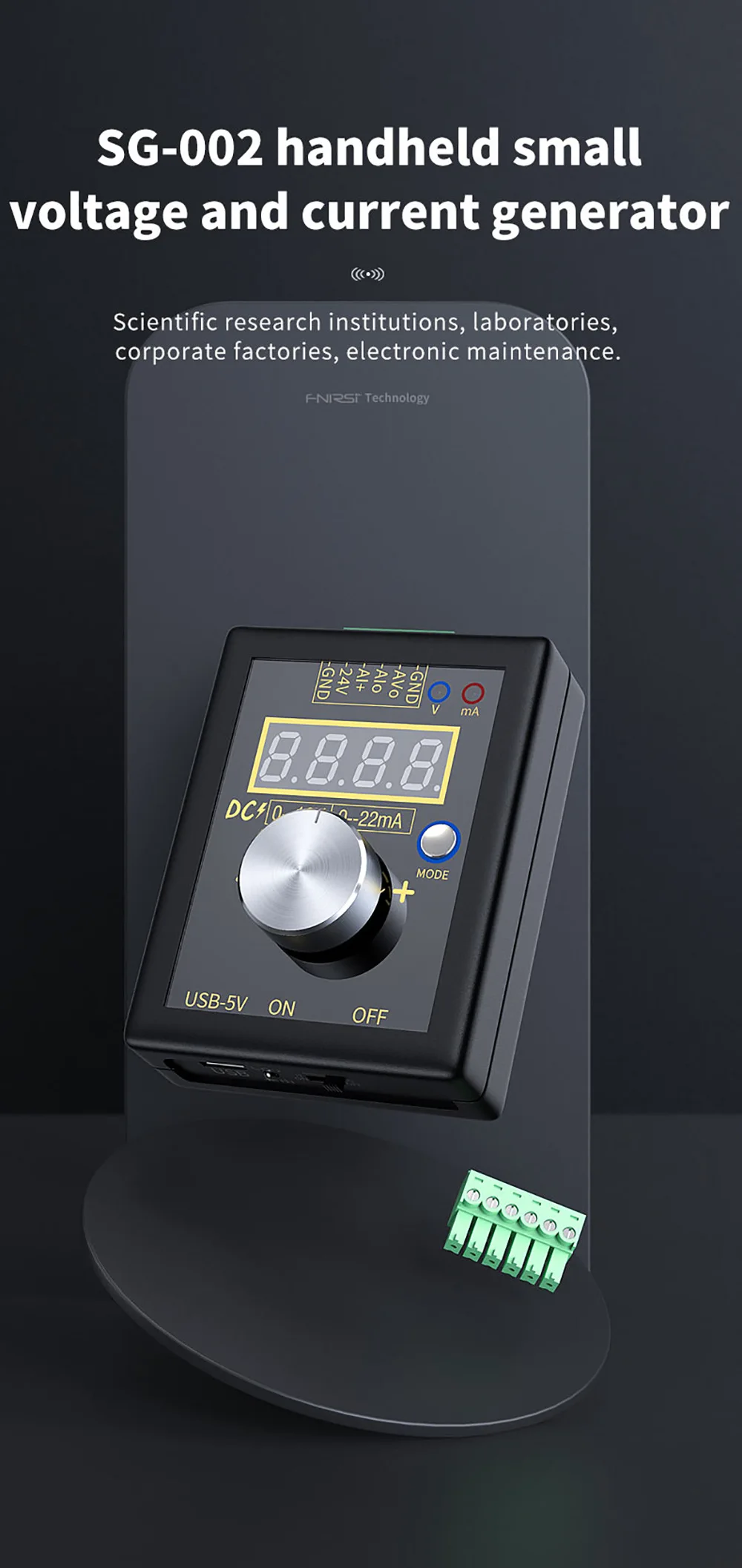

This handheld small voltage and current signal generator can be used in scientific research, laboratories, company factories, electrical maintenance, etc. Come and try.
Feature:
The voltage and current signal generator is the most commonly used electrical test instrument for electrical engineers and technicians during onsite installation, commissioning, overhaul and maintenance of electrical equipment.

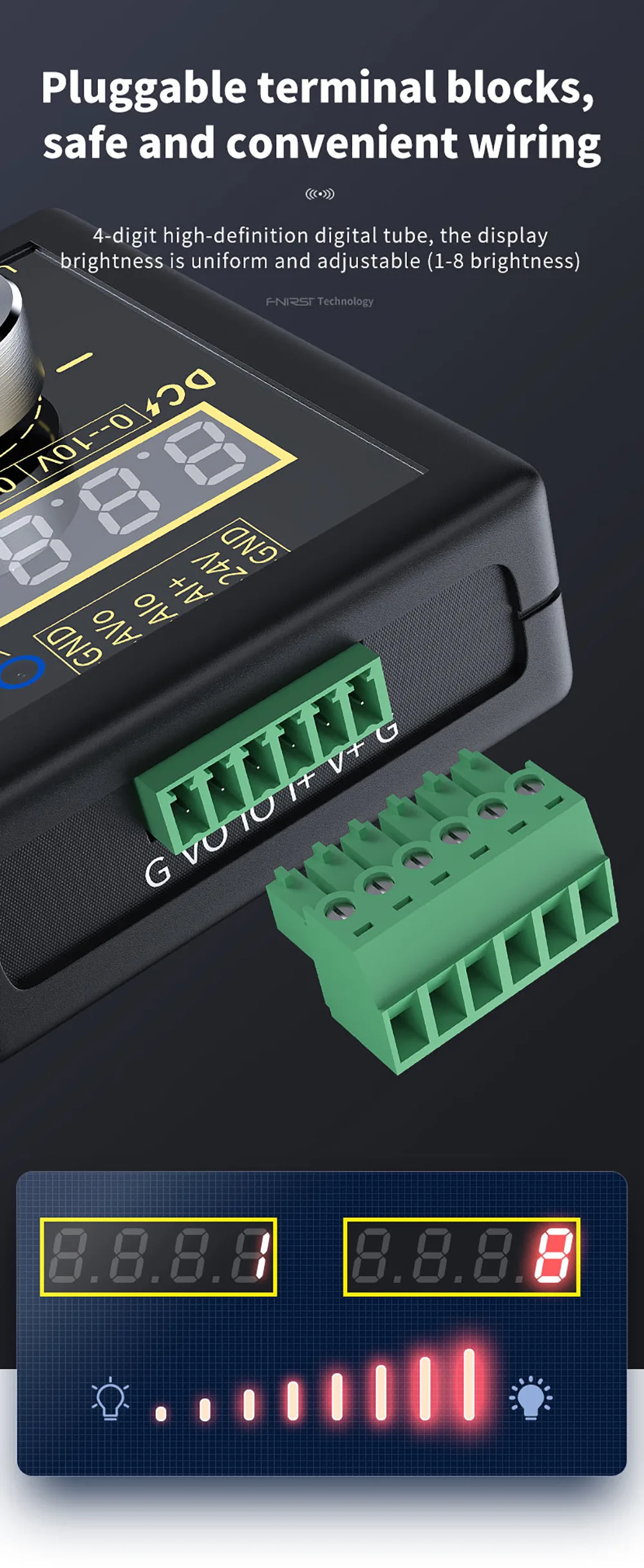

Pluggable terminal blocks, safe and convenient wiring.
4-digit high-definition digital tube, the display brightness is evenly adjustable (1-8 brightness).

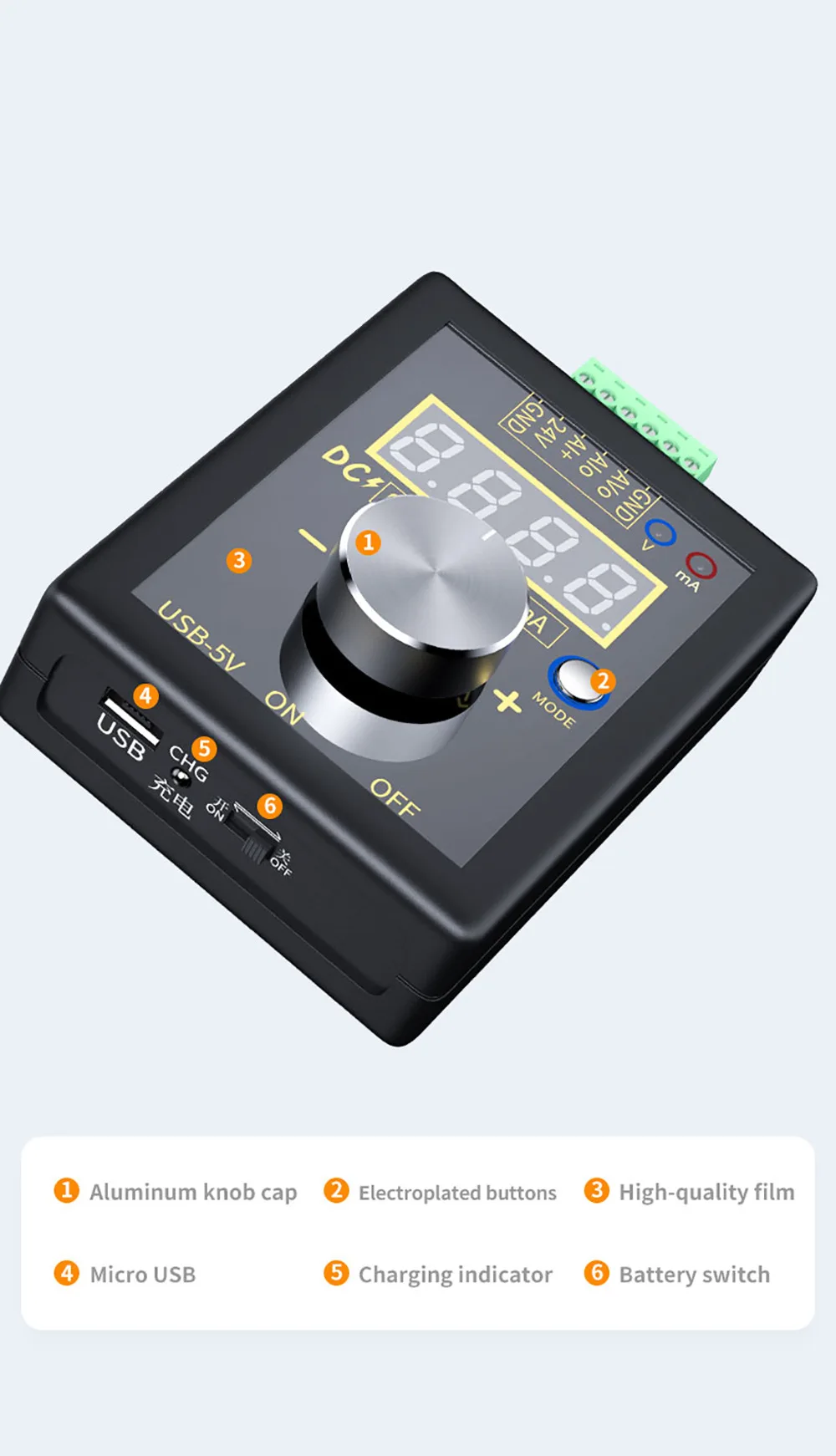

Aluminum knob cap, electroplating button, high-quality film, charging indicator, battery switch.

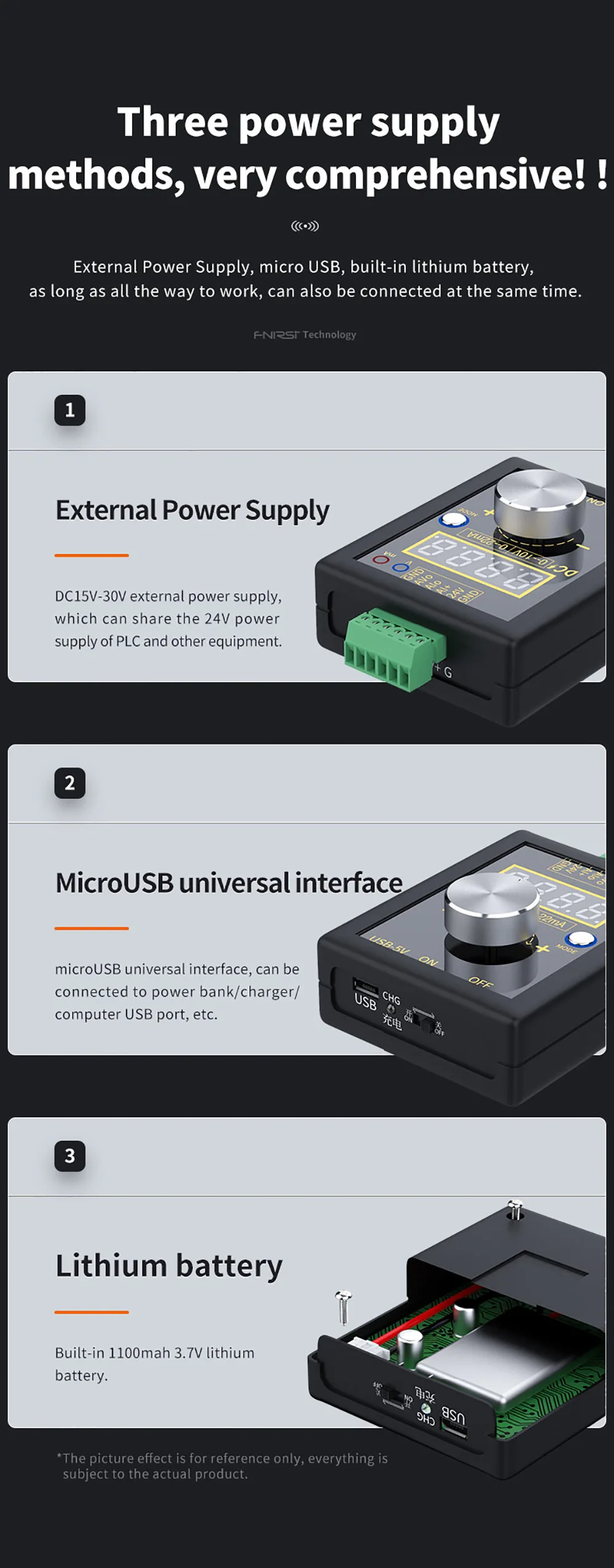

Three power supply methods: external power supply, DC5V micro USB, built-in lithium battery (only when type 1 is selected, the built-in lithium battery charging mode can be used). As long as you work all the way, you can also connect at the same time.
DC 15-30V external power supply, which can share the 24V power supply of PLC and other equipment.
MicroUSB universal interface, can be connected to mobile power, charger, computer USB port, etc.

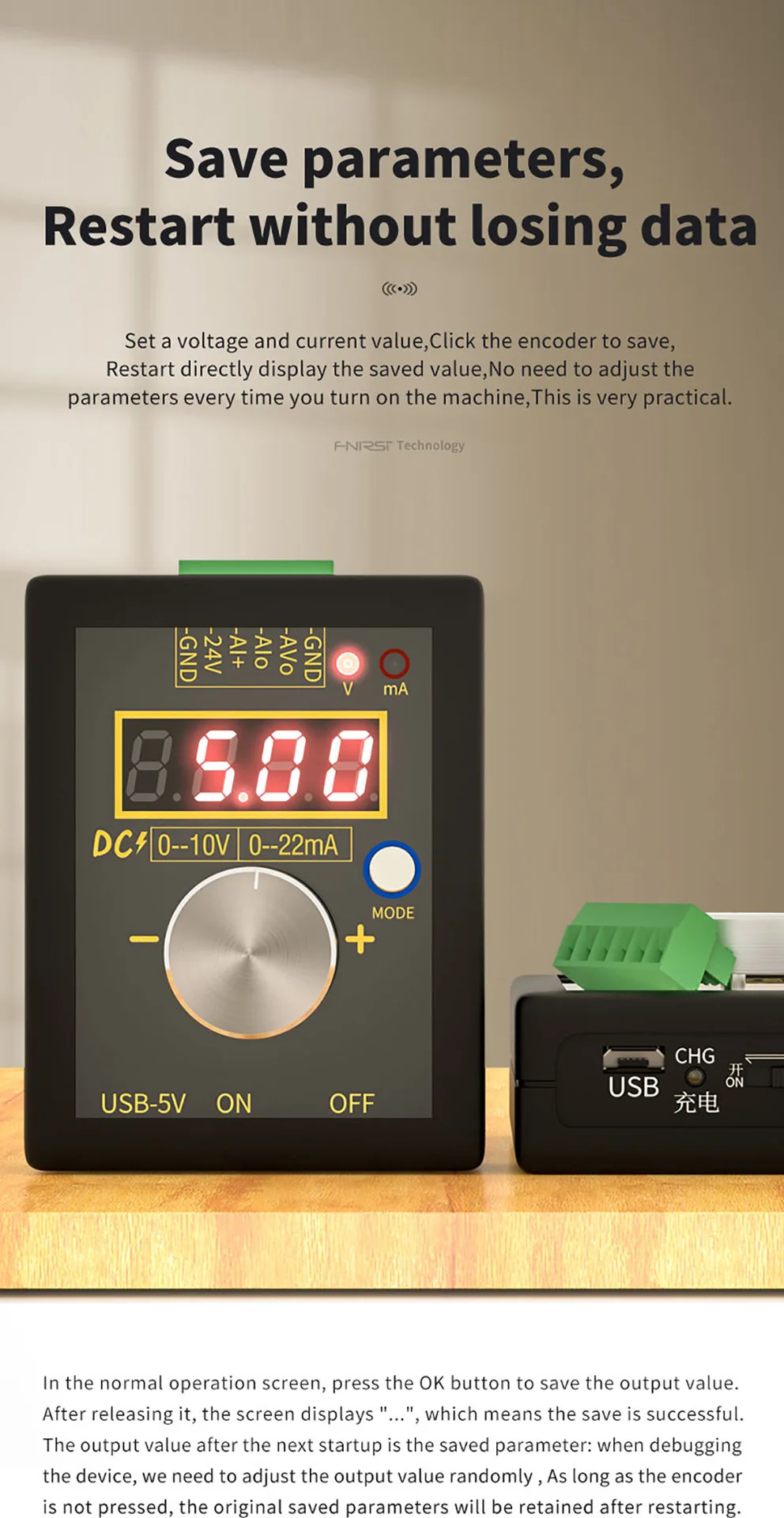

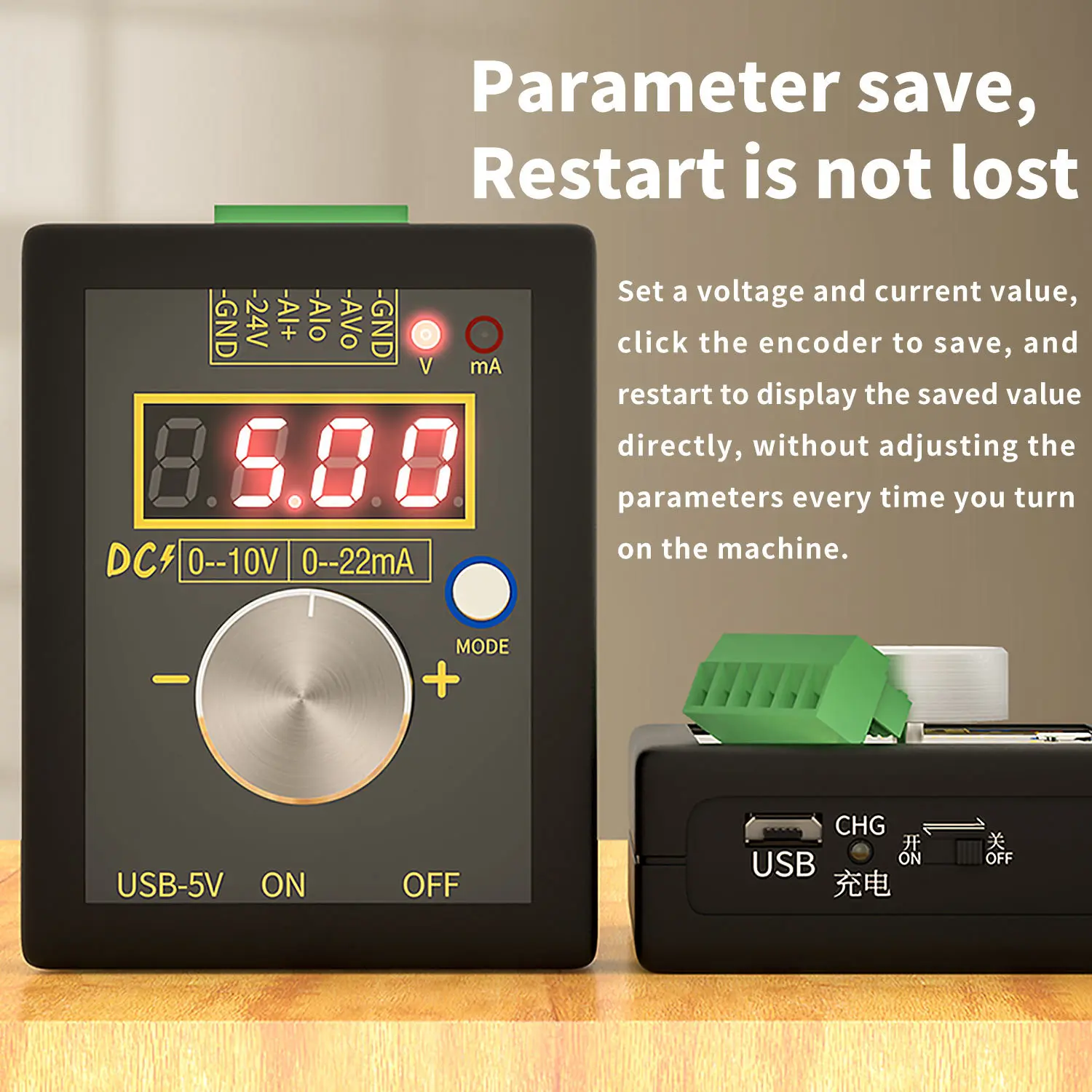

On the normal operation screen, save a voltage and current value, click the encoder to save, and after releasing the "OK" button, the screen displays "...", indicating that the save is successful. After restarting, the saved value will be displayed directly, and there is no need to adjust the parameters every time when starting up, which is very practical.

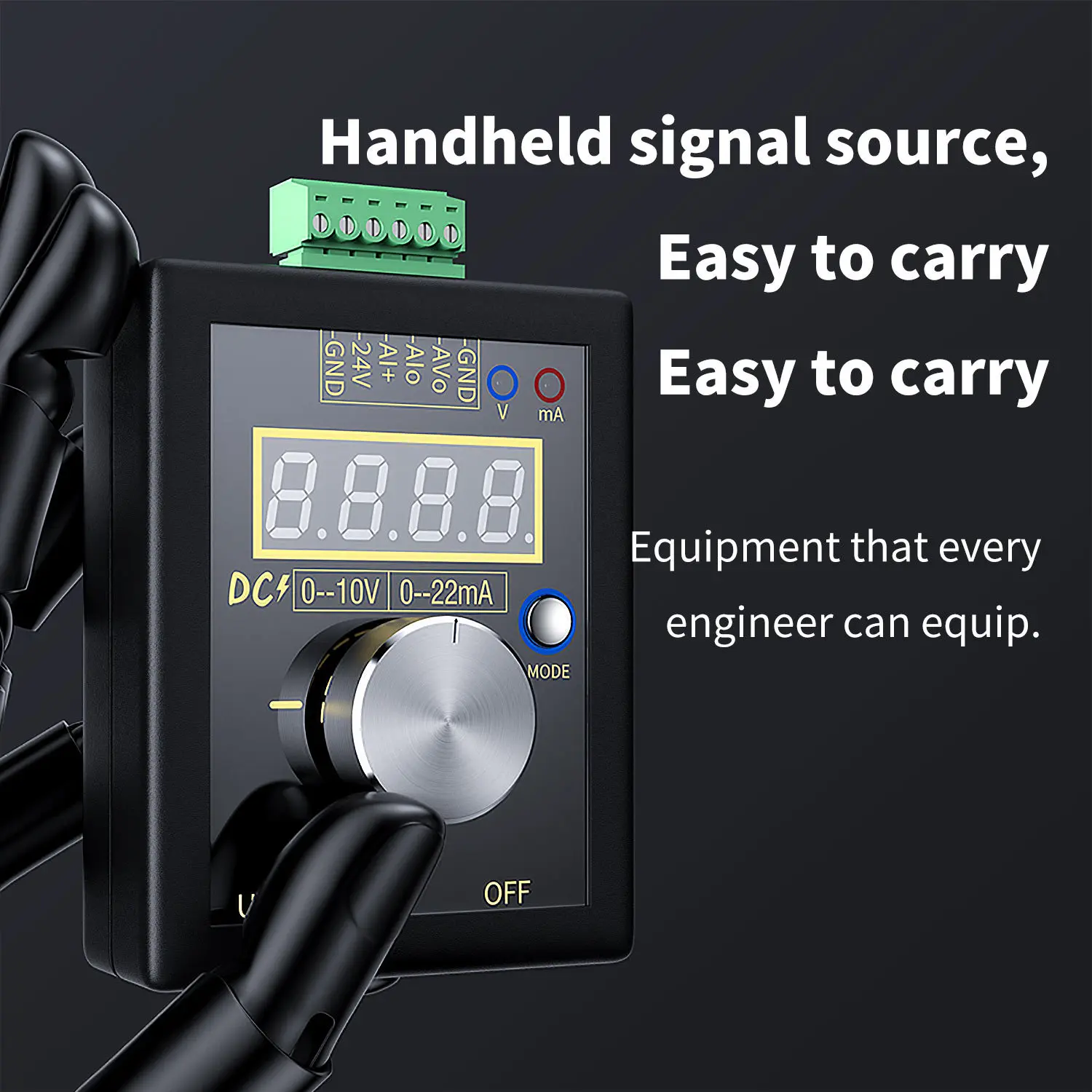

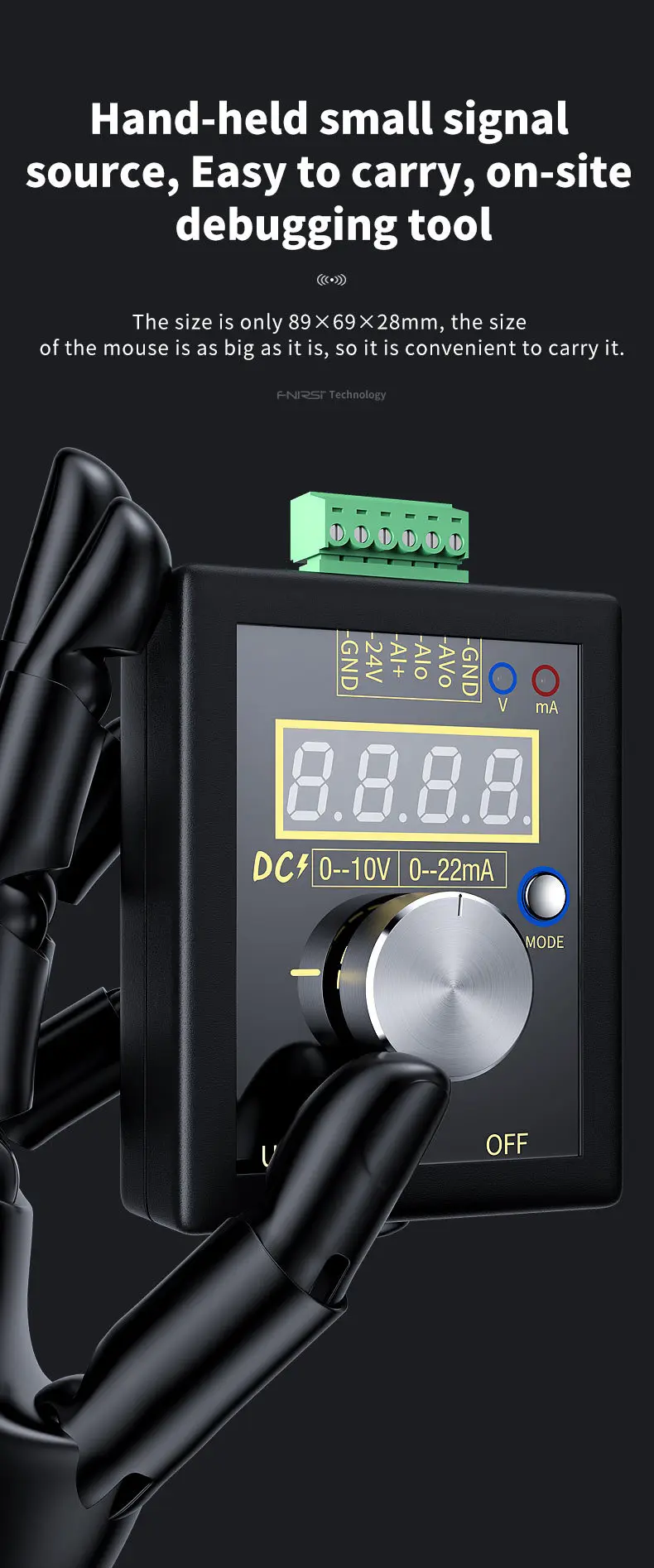

Easy to carry and small in size, it is the best choice for on-site debugging.
Specification:
Material: ABS
Colour: black
Voltage output: 0-10V
Current output: 0-22mA
Type: 1-2 (optional)
Charging method: built-in lithium battery (only type 1), external power supply, DC5V micro USB
Battery: 1*Lithium battery, 3.7V, 1100mAh (only type 1 included)
Size: about 89*69*28mm/3.5*2.7*1.1in
Packing size: about 90*70*38mm/3.5*2.8*1.5in
Weight:
Type 1: about 95g/3.4oz
Type 2: about 115g/4.1oz
Packing List: (optional)
Type 1:
1 * Voltage and Current Generator (not including battery)
Either
Type 2:
1 * Voltage and Current Generator (including battery
