SPECIFICATIONS

Brand Name: diymore

Origin: Mainland China

DIY Supplies: ELECTRICAL

Display Size: 2.9 Inches & Under

Model Number: VGA Signal Generator

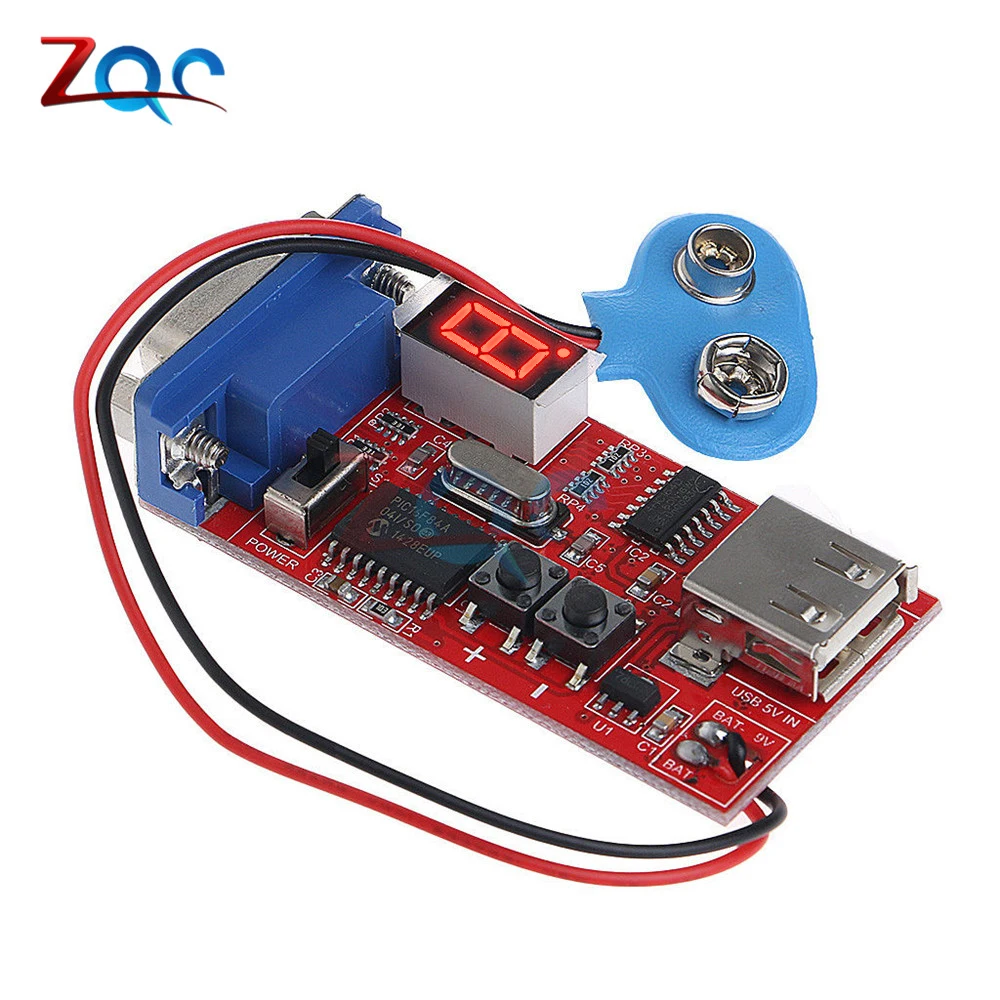

[9V Battery USB Output VGA Signal Generator Module]

Specification:

Voltage:9V DC or USB Power (Not include)

Size: 60*30mm

Output: Standard VGA/XGA RGBHV signal on an HD15F connector(15 pin D connector)Resolutions: 640 x 480, 60 Hz 75Hz. 800 x 600, 75 Hz. 1024 x 768,75 Hz.



Feature:

Perfectly designed for on-site maintenance personnel,support the multimeter with 9V battery and USB power supply, light volume, convenient to carry.

Can produce 15 different parameters and different resolution VGA signals, suitable for all kinds of different performance monitor.

It is a Simple and compact VGA/XGA color generator.

A unique, practical product for testing and adjusting VGA/SVGA/XGA display devices such as monitors, projectors, etc. In the four most common VGA resolution modes - 640x480, 800x600, 1024x768 and HV8-1,HV8-2,HV8-4 and HV8-8

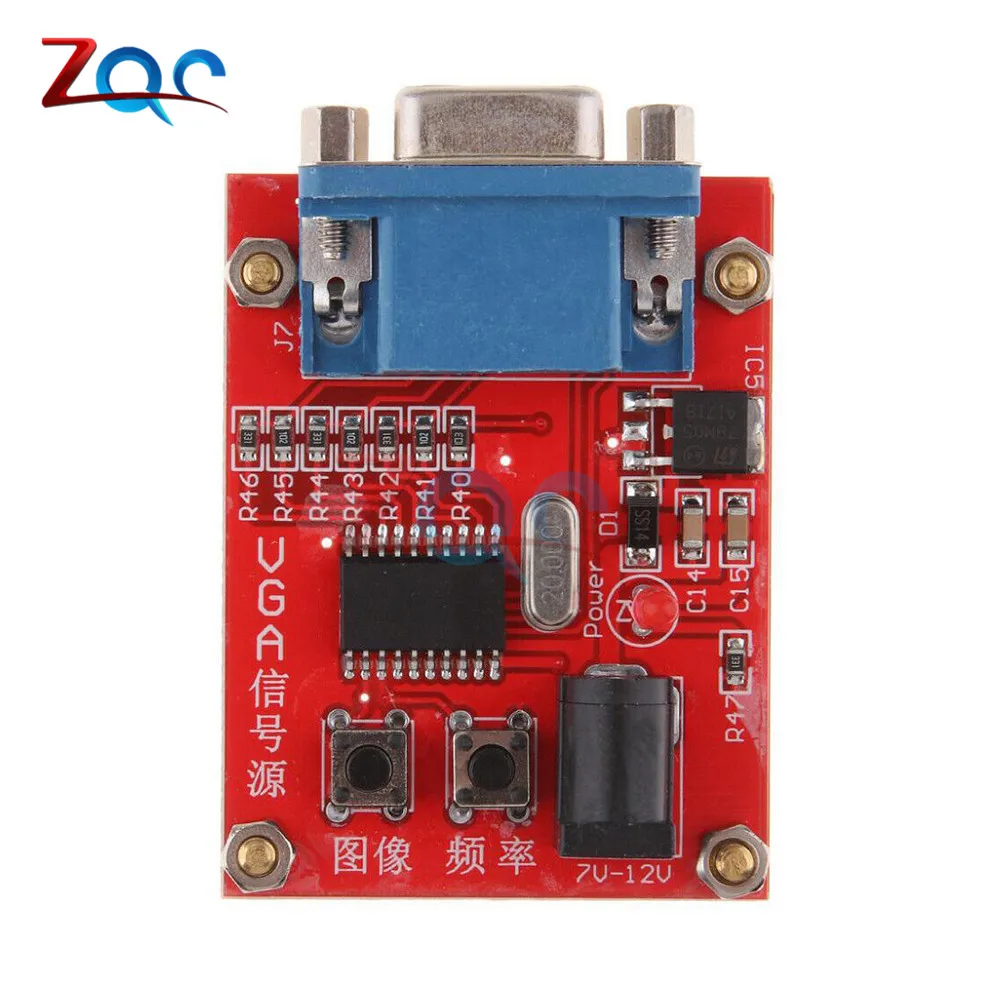

[DC Plug Output VGA Signal Generator Module]

Specification:

Power Supply: DC 7V - 12V Power Input.

Resolutions: 640*480 800*600 1024*768 1280*1024

Size: 5.6cm (length)*4.2cm (width)



Package Included:

1 * VGA Signal Generator
