LoraTap Tuya Smart Life Garage Door Sensors Opener Controller WiFi Switch Alexa Opening Home Remote Control Contact Voice Portal

Save 4%

Price:
Sale price$44.15 Regular price$45.85
Stock:
In stock

Description

SPECIFICATIONS

Brand Name: LoraTap

Origin: Mainland China

Current: 10A

Features: Smart Home WiFi Garage Door Controller

Material: Plastic

Item Type: SWITCHES

Warranty: 2 years

Switch Type: REMOTE CONTROL

Certification: RoHS

Certification: CE

Certification: ce

Certification: EMC

Certification: FCC

Certification: LVD

Certification: ROHS

Model Number: GDC100W

Is Smart Device: YES

Input Voltage: 100-250VAC

Output: Impulse Dry Contact Signal

App Name: Tuya, Smart Life

Support: Support IOS, Android, free App

Support: Hands-free Voice Control

Compatible with: Google home, Amazon Alexa, Yandex Alice

App Control: Remote Control

Wireless Type: Only Wi-Fi 2.4GHz, not support 5GHz Wi-Fi

Sensor Cable Length: 5 meters

Door Sensor Action: <30mm

Plastic Material: Fireproof ABS

Factory Quality: ISO9001:2015 factory

Certification: CE, RED, EMC, RoHS

Choice: yes

semi_Choice: yes





























Note before Order, please test compatibility

- Please check if your garage controller is compatible with our module.

- You can use the pliers to short-circuit the wall button terminal on the opener. If the garage door opens or closes, it can work with our smart controller.

- The 3th Generation garage door DC version is powered by USB, so the device does not come with a USB adapter, please use it with the destination national standard USB adapter after receiving it.

- ZigBee version garage door controller need work with Tuya ZigBee Hub, please make sure you already have a Tuya ZigBee Hub.

- This ZigBee version garage door can't work with other brands' ZigBee Hub, please make sure your ZigBee Hub is from Tuya.

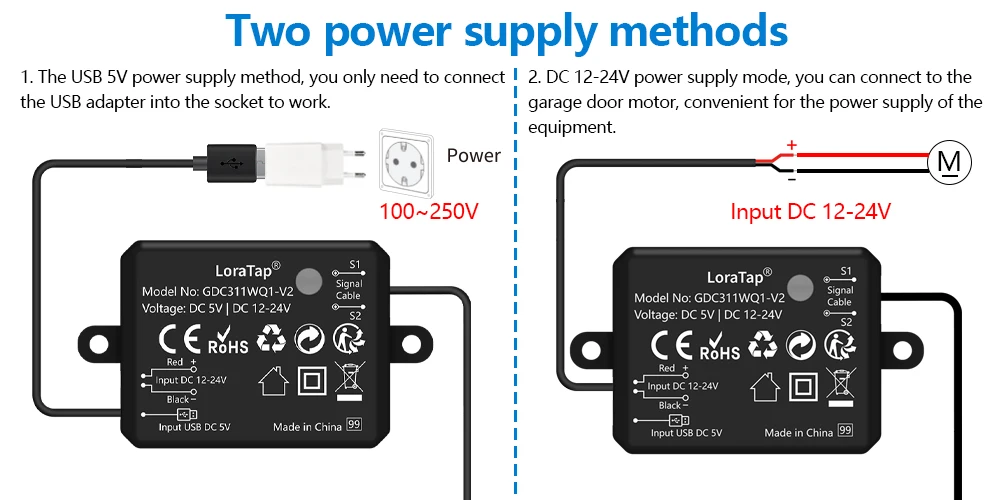

The 3rd Generation WiFi product has been upgraded to two safer and more convenient power supply methods, and the original power cord has been replaced with a corresponding standard USB adapter plug.

1. The USB 5V power supply method, you only need to connect the USB adapter into the socket to work.

2. DC 12-24V power supply mode, you can connect to the garage door motor, convenient for the power supply of the equipment.

FAQ

• It is not important to the brand of the engine. This smart device is connected in parallel with the existing wall push button.

• The output of this device is impulse dry contact signal. The relay is isolated from the internal circuit of the module. You can hang parallel to the button with any voltage. This gives a short pulse(not a constant pulse) and simulates the pressing button.

• It can work for opening a sliding gate if you have a one gang wall push button for the gate. This smart device is connected in parallel with the wall push button.

• You don’t need to buy a Hub for this device, this device connects to the WiFi of the House. But a strong WiFi signal is a must for this device, try to connect your phone to WiFi next to the engine, if it works the device will work otherwise look for a WiFi signal repeater.

• This is a WiFi only device, it doesn’t work with any RF 433Mhz or RF 868Mhz remote.

• This device is not compatible with HomeKit. But you can add Tap-to-Run Scene to Siri Shortcut in smart life app.

• You can choose EU Standard Plug option if you are in Brazil.

Garage door opener controller characteristics:

1、Smart your garage Door by phone,Remote and Voice Control, just tapping the Tuya or Smart Life App from anywhere or speaking to your Alexa, Google Assistant . Enable the door open or close even when you are not at the site
2、Bluetooth pairing function,In order to ensure the stable connection of the device, we have added the Bluetooth configuration method to increase the stability of the device connection.
3、Voice Control by Google Home, or Alexa Assistant device

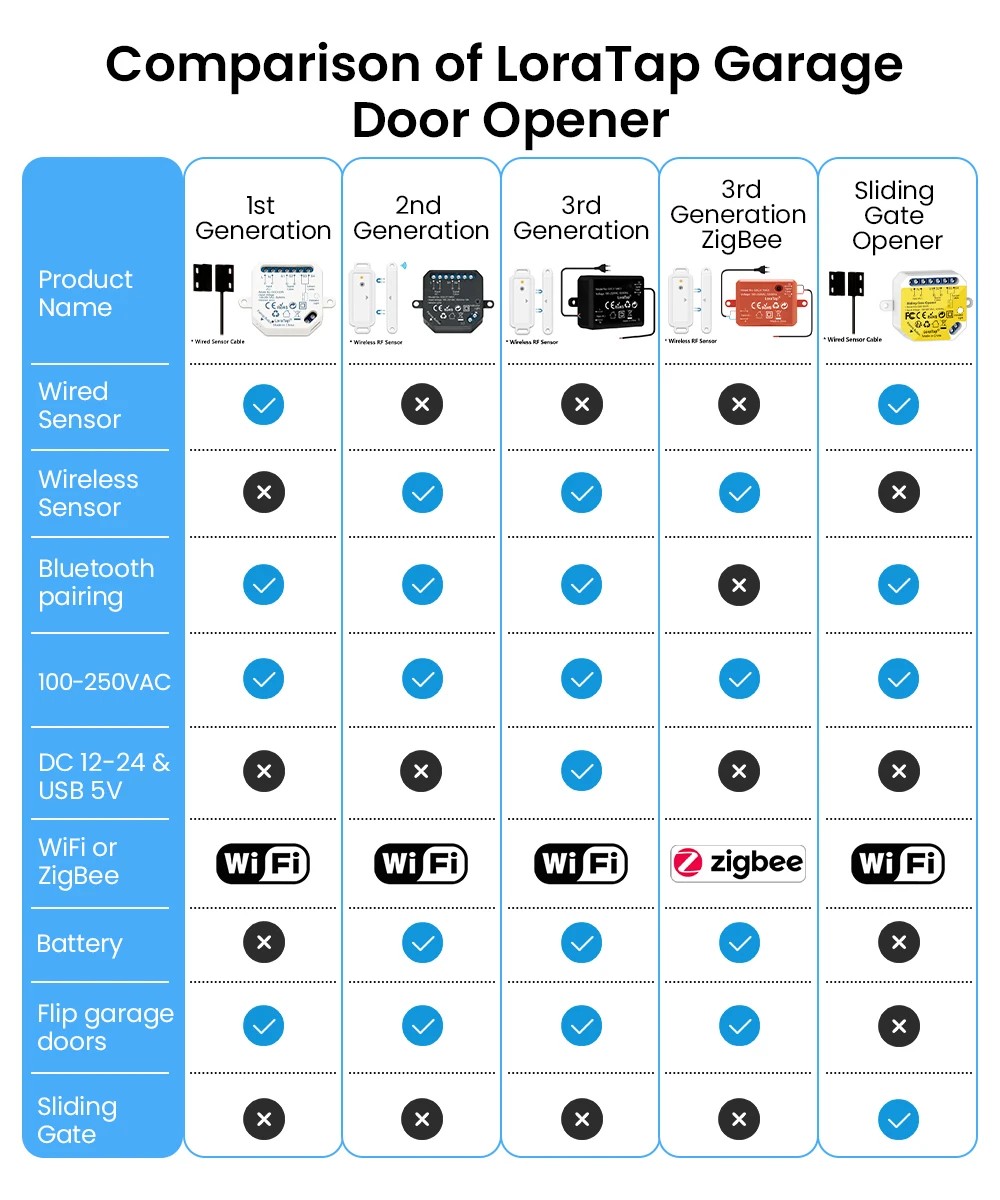

4、Multi-type garage doors, easy to use,Our garage doors are available in wired and wireless versions, as well as WiFi and ZigBee versions, which can basically cover most garage door environments.
5、Device security note,Be alerted from App with different notification modes such as garage door open/ close status, overtime notification and overnight notification to remind you close the garage door.

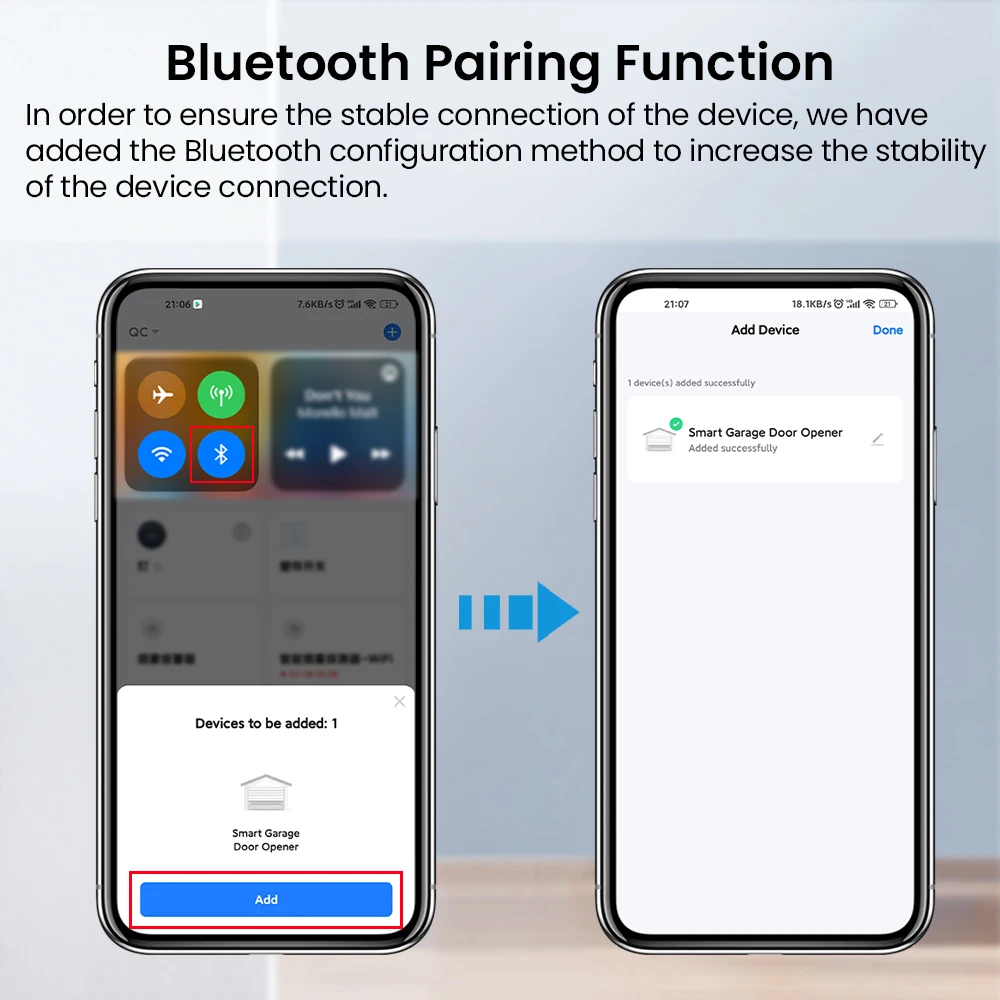

Bluetooth pairing function

In order to ensure the stable connection of the device, we have added the Bluetooth configuration method to increase the stability of the device connection.

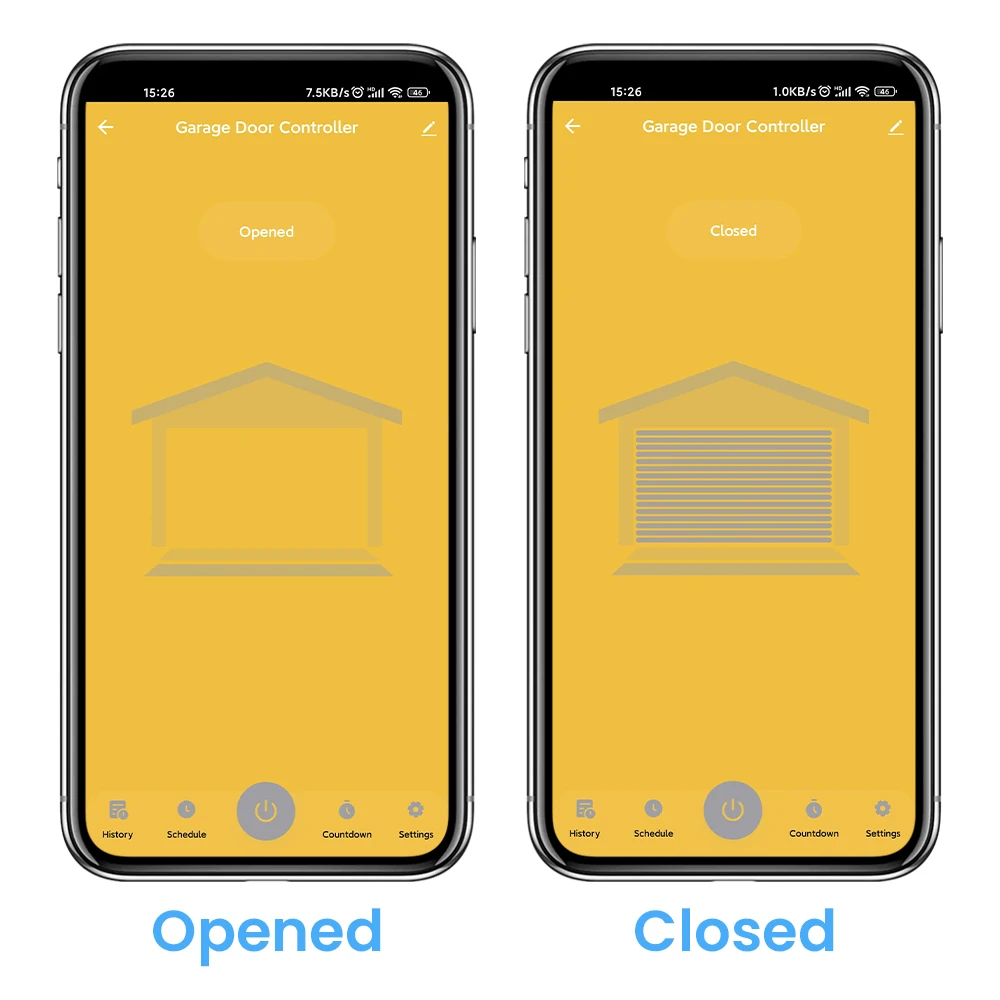

Smart your garage Door by phone

Remote and Voice Control, just tapping the Tuya or Smart Life App from anywhere or speaking to your Alexa, Google Assistant . Enable the door open or close even when you are not at the site.

Stay Safe

Be alerted from App with different notification modes such as garage door open/ close status, overtime notification and overnight notification to remind you close the garage door

Voice Control

Voice Control by Google Home, or Alexa

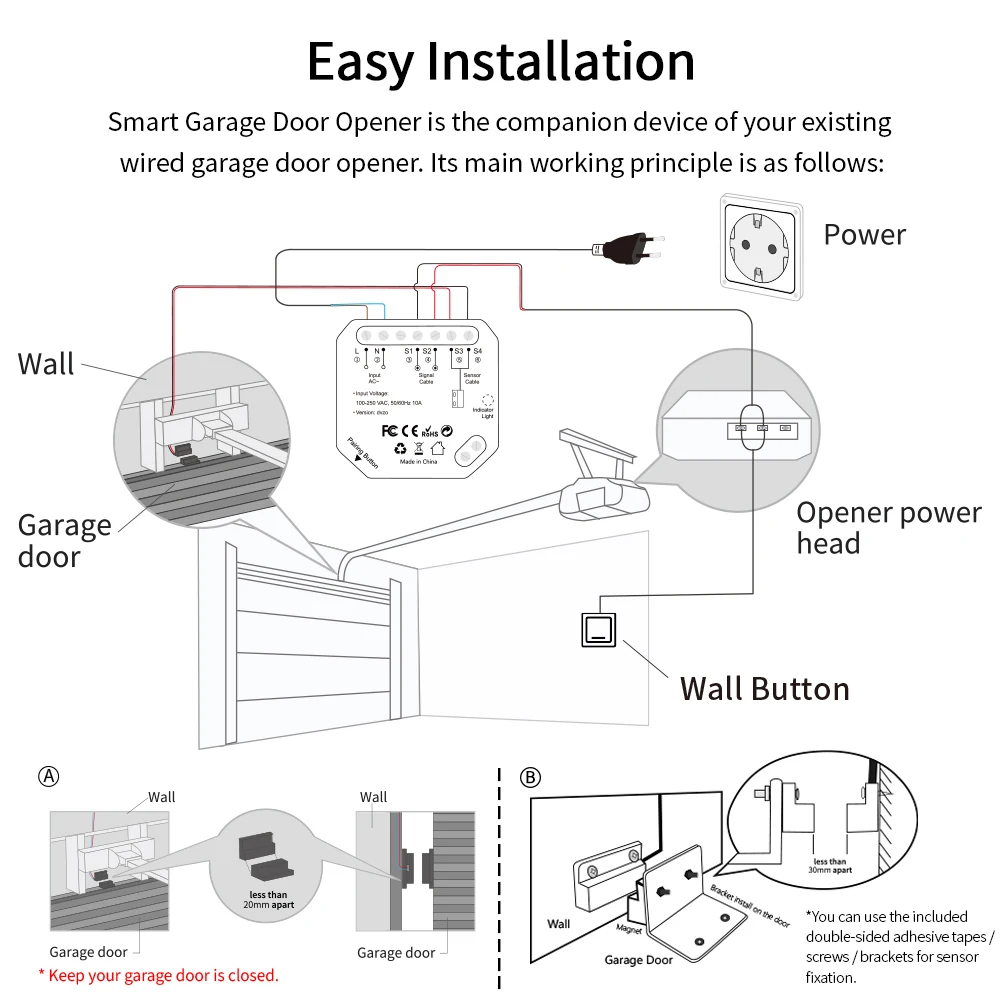

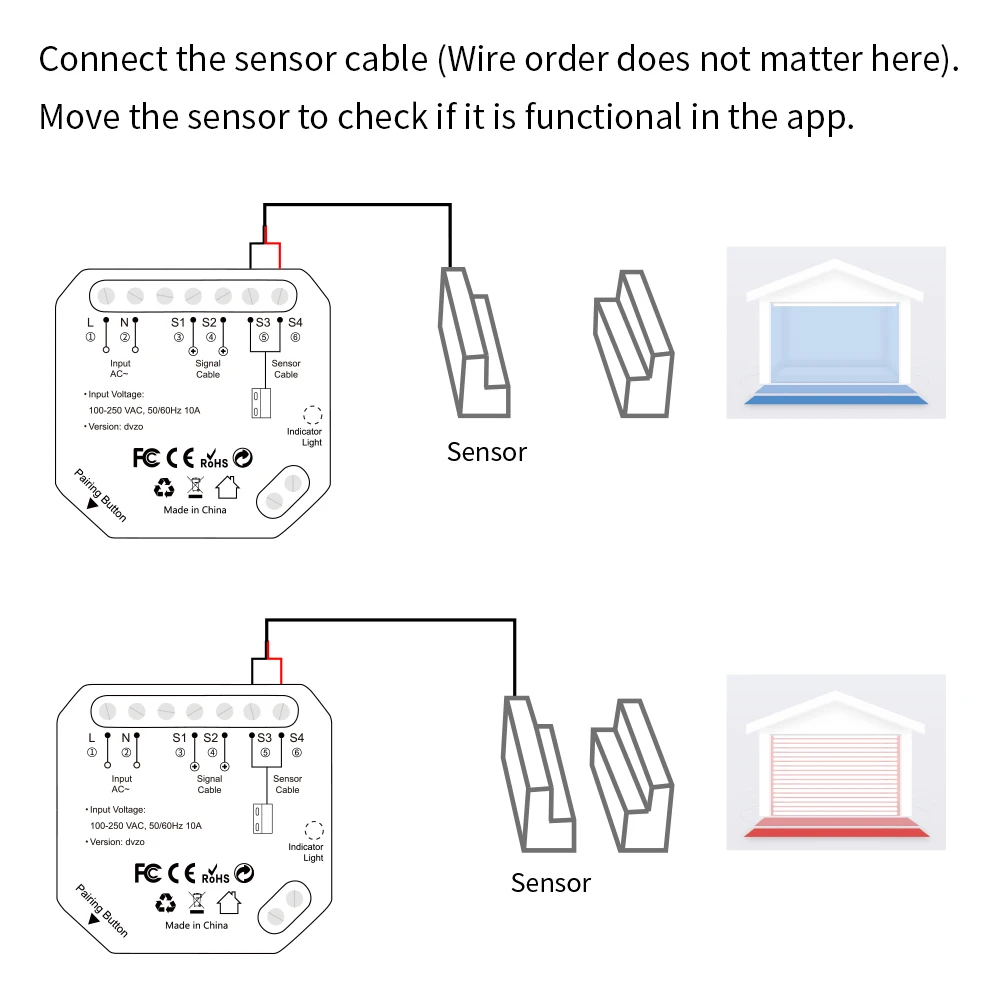

Installation

The main working principle is as below

Specification

Voltage: 100-250VAC, 50/60Hz
sensor action distance: below 30mm
length of the sensor cable: 5 meters
Wireless Protocol: Wi-Fi 2.4 Ghz( don't support 5Ghz Wifi band)
APP Name: Smart Life, Tuya
Voice Conrol: Google Assistant, Amazon Echo Alexa
Dimensions:48mm*47mm*22mm
Colour: White
Plastic Material: Fireproof ABS
Certification: CE, RED, EMC, RoHS
Produced by ISO9001:2015 factory: Yes
Patented Product: Yes

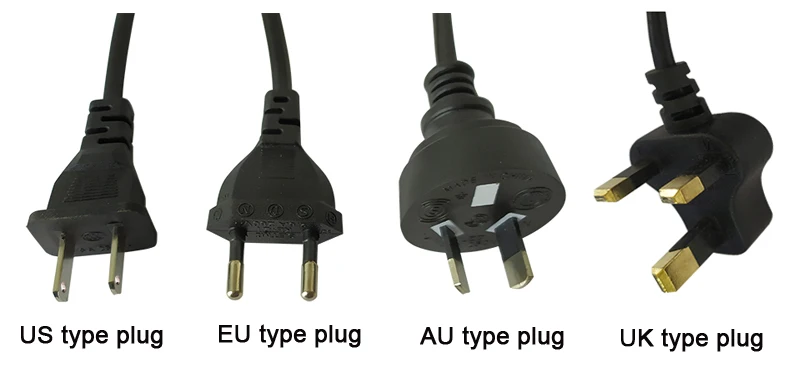

Different standard plugs

Please select the corresponding standard product according to your needs.

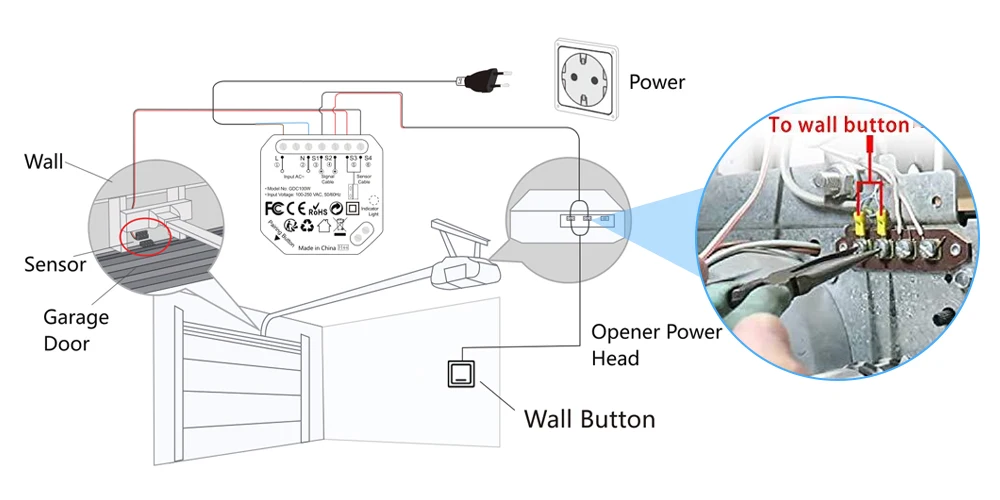

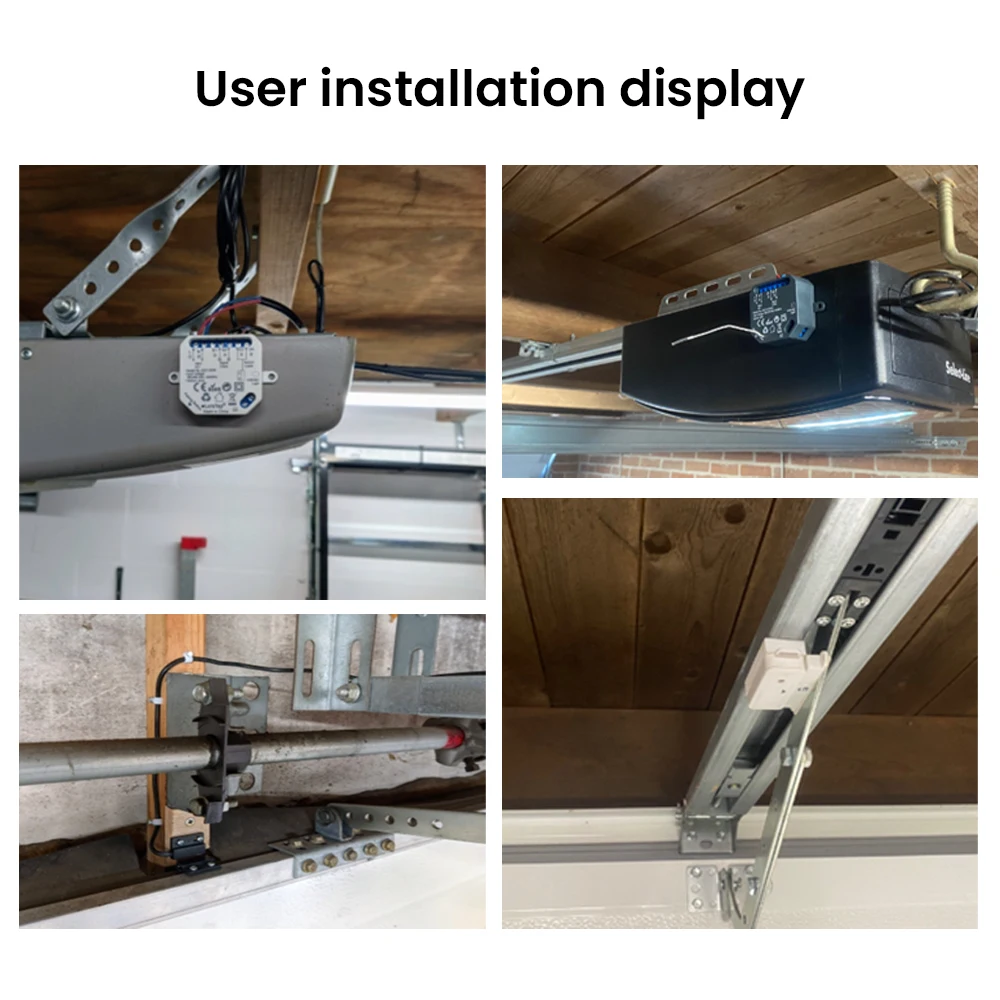

User installation display

We have all the accessories you need in the box, you don't need to pay extra cost.

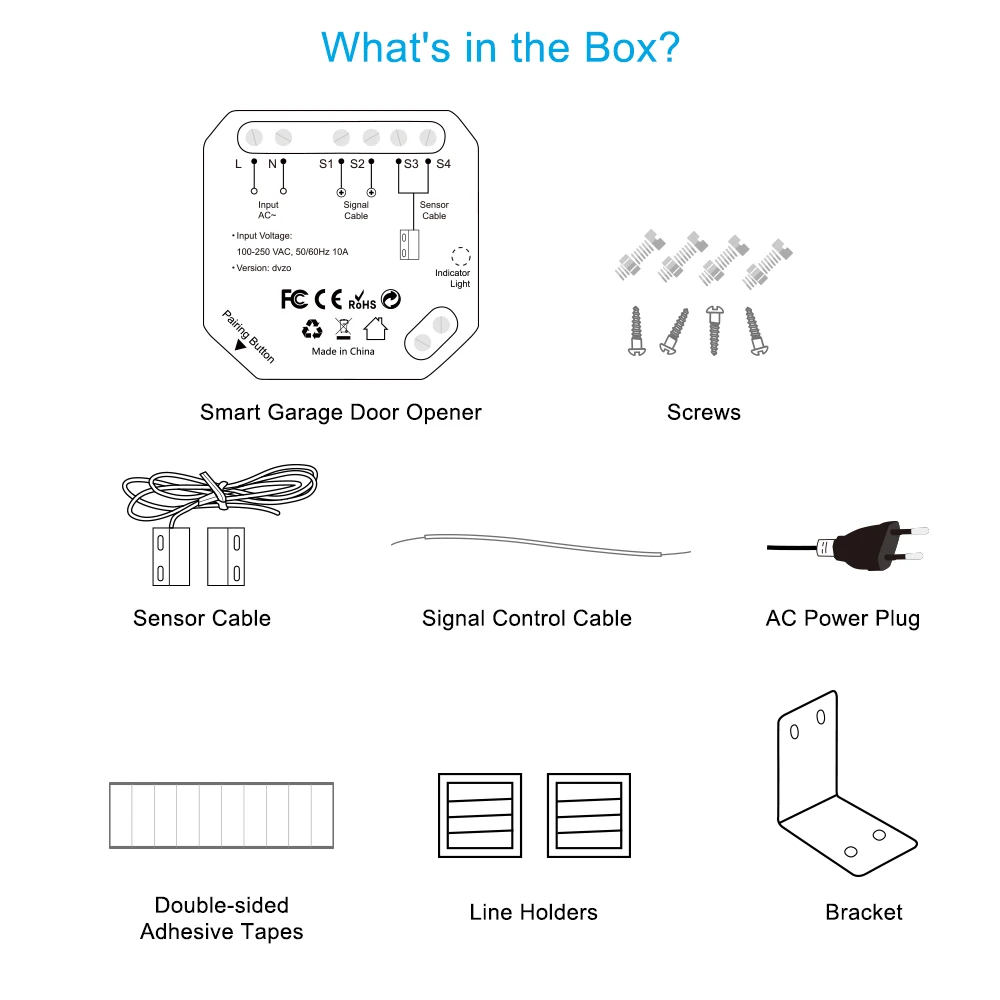

What's in the box?

1 * Smart Wi-Fi Garage Door Opener
1 * 5 meters Sensor Cable
1 * Sensor
1 * Signal Control Cable
1 * AC Power Plug
4 * Double-sided adhesive
10 * Cable ties adhesive for cable management
10 * Steel nail line card for cable management
1 * Bracket
1 * Screw Driver
1 * User Guide
