SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

Material: Composite Material

Recommend Age: 14+y

RC Parts & Accs: MICRO BEC

Size: 18x15x4.5mm

For Vehicle Type: Airplanes

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: MBEC12S

Remote Control Peripherals/Devices: Remote Controller

Tool Supplies: Assembly Category

Quantity: 1 pcs

Technical parameters: KV1100

Model Number: Matek MICRO BEC 6-60V

Four-wheel Drive Attributes: Assemblage

Wheelbase: Bottom Plate





• Due to shortage of chips, the voltage regulator chip has been replaced with SOP-8 package.
• PCB 1mm wider.
• Identical performance as previous version.

• Wide 6V to 60V Operating Input Range
• Start-up Voltage >=6.7V
• VOut 5V, 9V or 12V Adj. Default is 5V.
• Maximum Duty Cycle: 100%,   when input voltage< setting value,  Regulator output voltage = Input voltage
• Continuous load current: Depends on input voltage and heat dissipation.

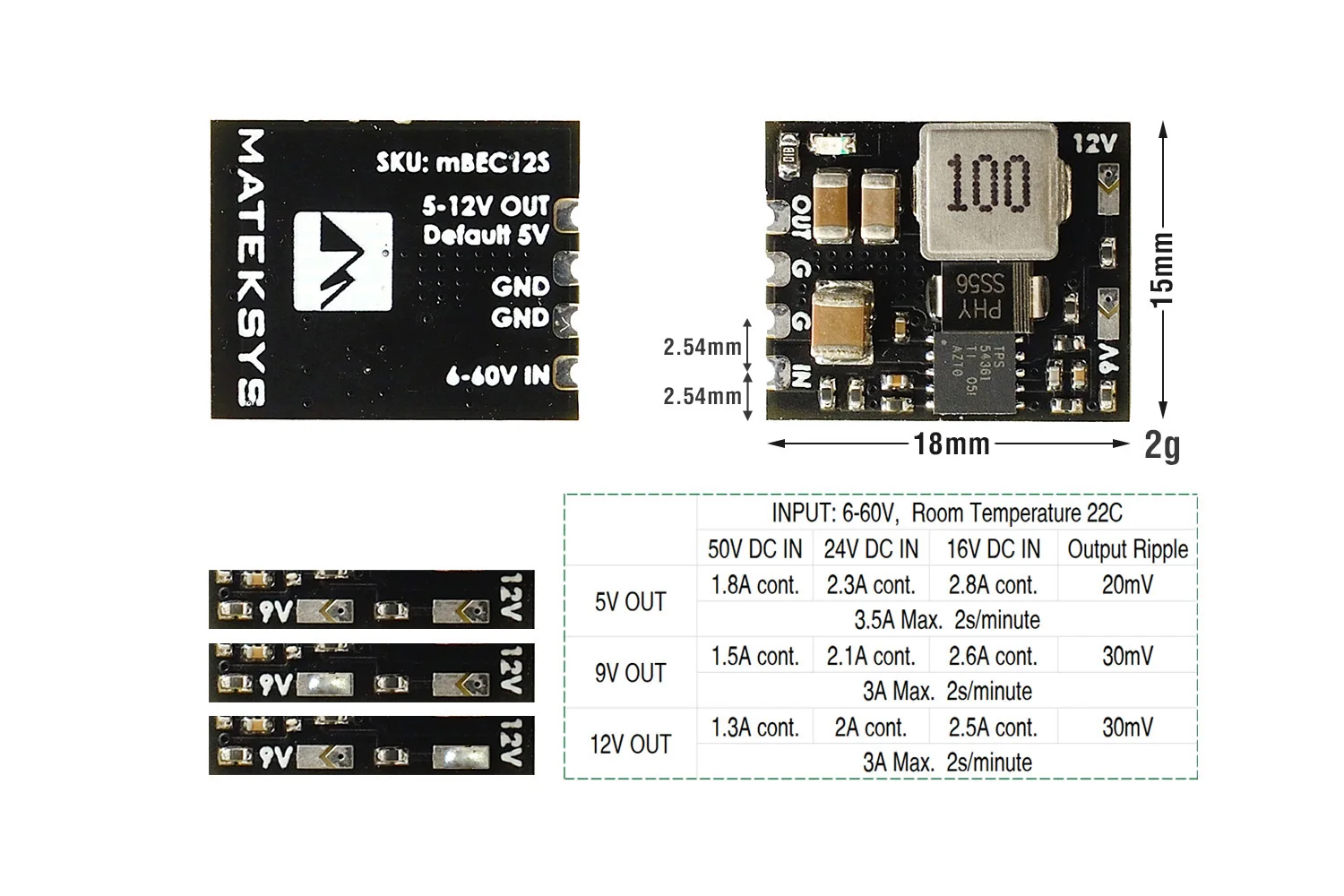

• 	INPUT: 6-60V,  Room Temperature. 22C,  without additional heat sink
  	50V DC IN	24V DC IN	16V DC IN	Output Ripple
  5V OUT	1.8A cont.	2.3A cont.	2.8A cont.	20mV
  	3.5A Max.  2s/minute
  9V OUT	1.5A cont.	2.1A cont.	2.6A cont.	30mV
  	3A Max.  2s/minute
  12V OUT	1.3A cont.	2A cont.	2.5A cont.	30mV
  	3A Max.  2s/minute

•
• Standby current: <5mA
• OCP Protection and Hiccup
• Thermal Shutdown
• Output Short-circuit tolerant (3 seconds/minute)
• No protection for reversed input polarity
• Pins distance: 2.54mm

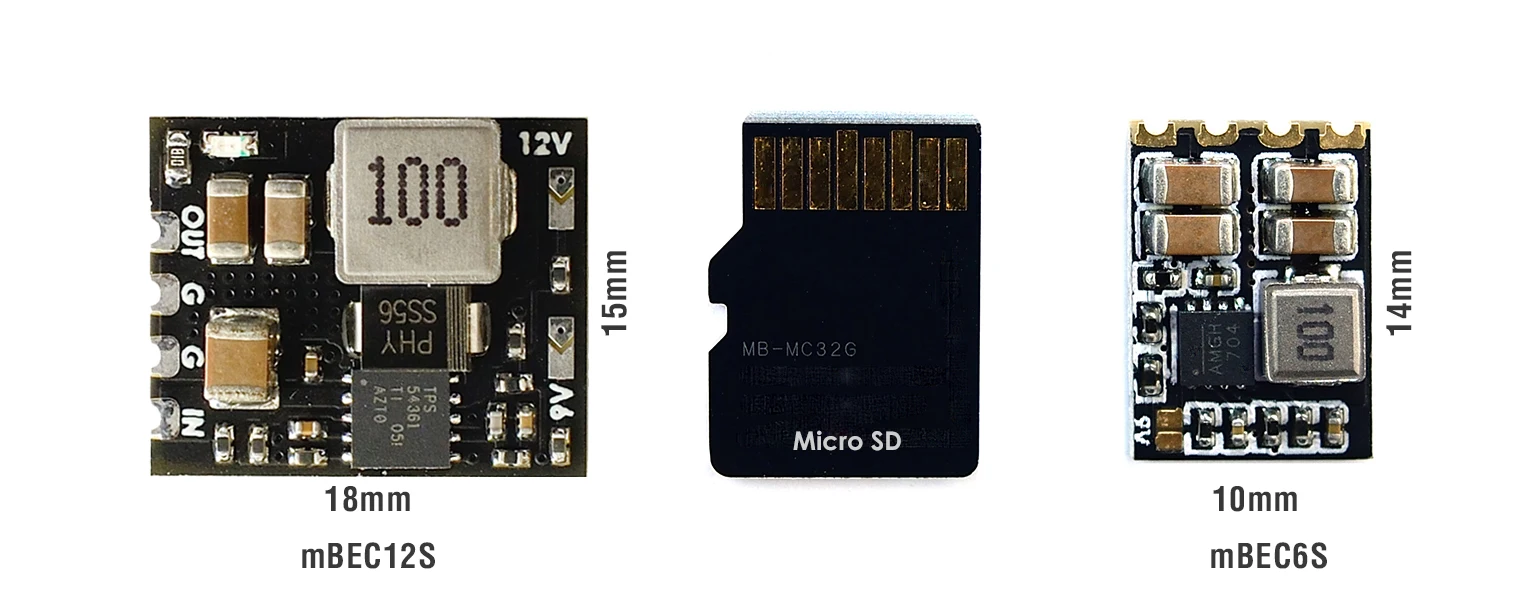

• Size & Weight: 18×15(16)x4.5mm, 2g
• Packing: 1pc/package
