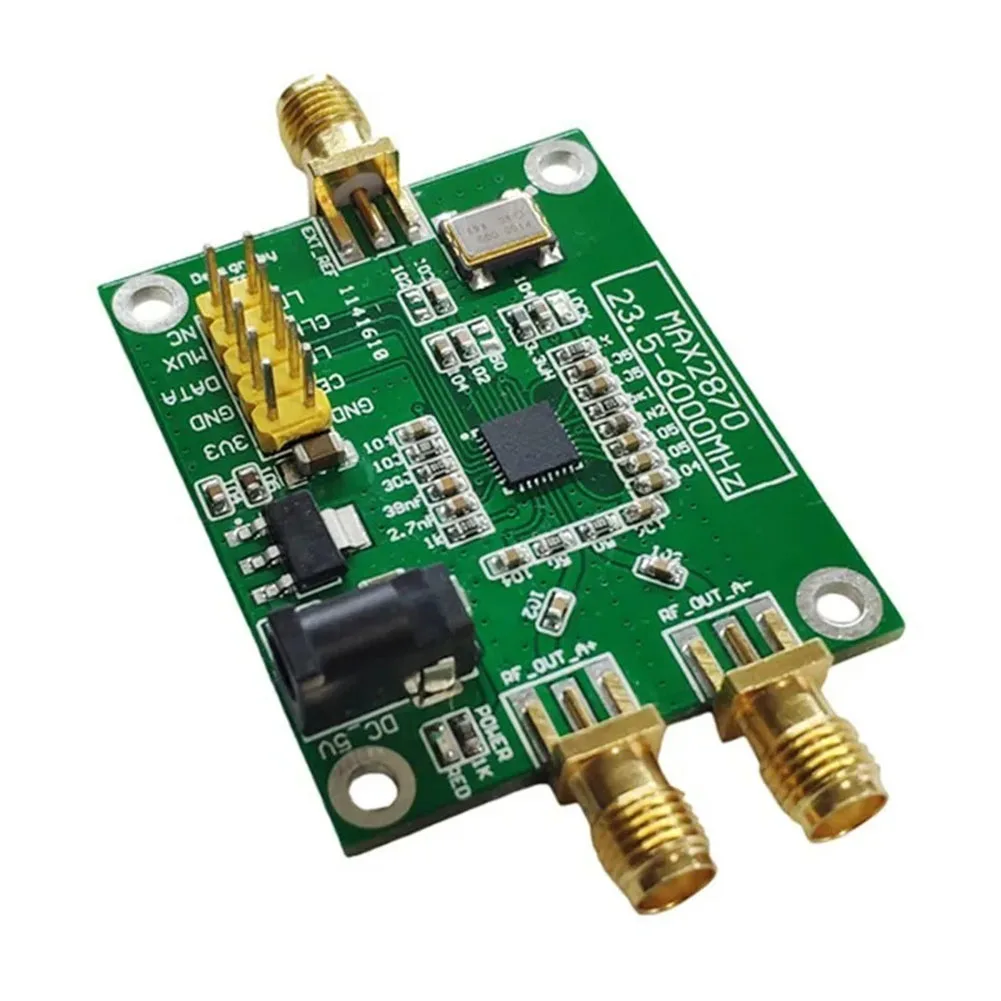

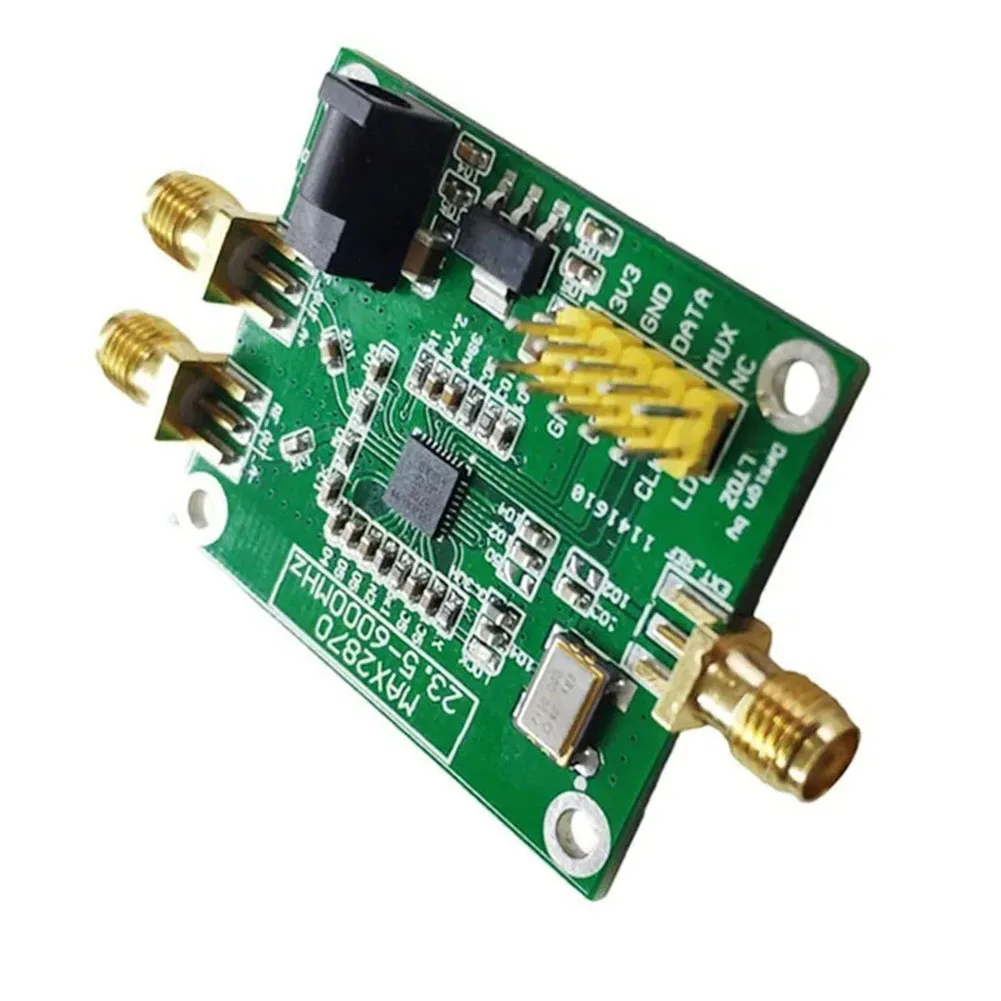

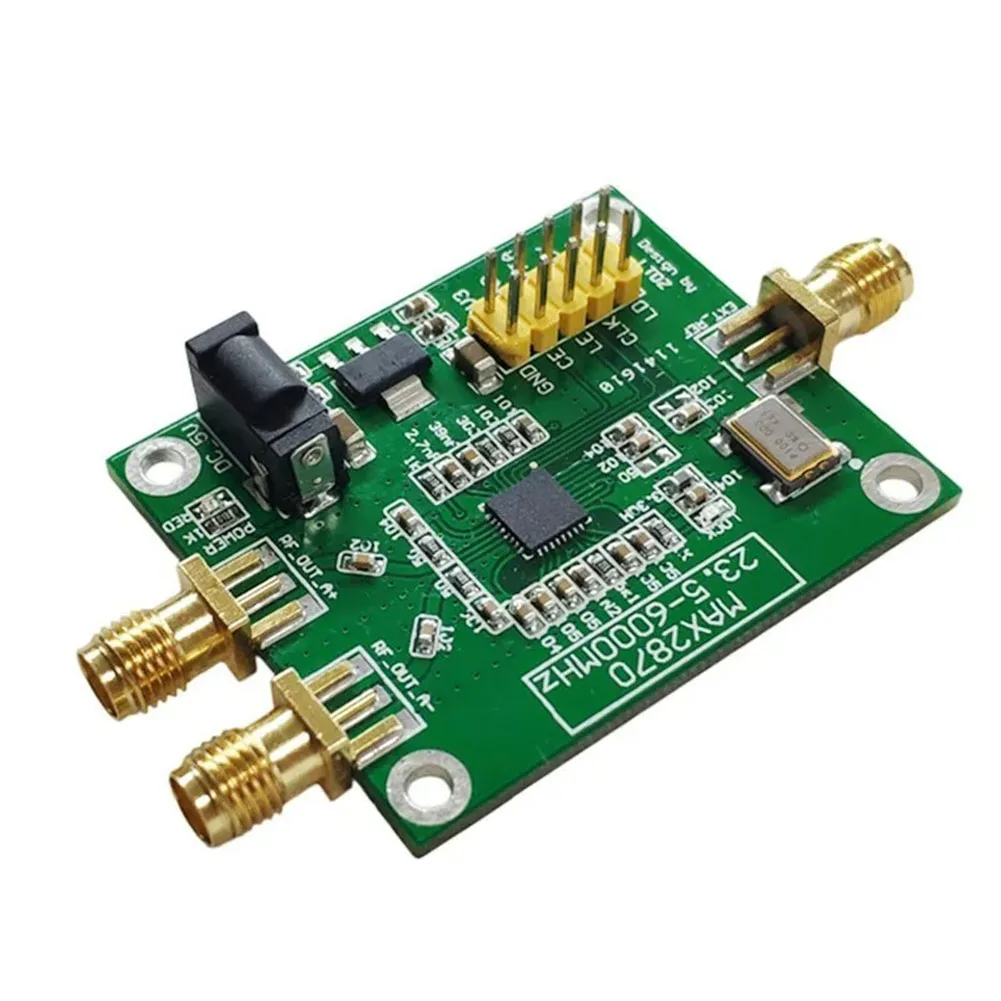

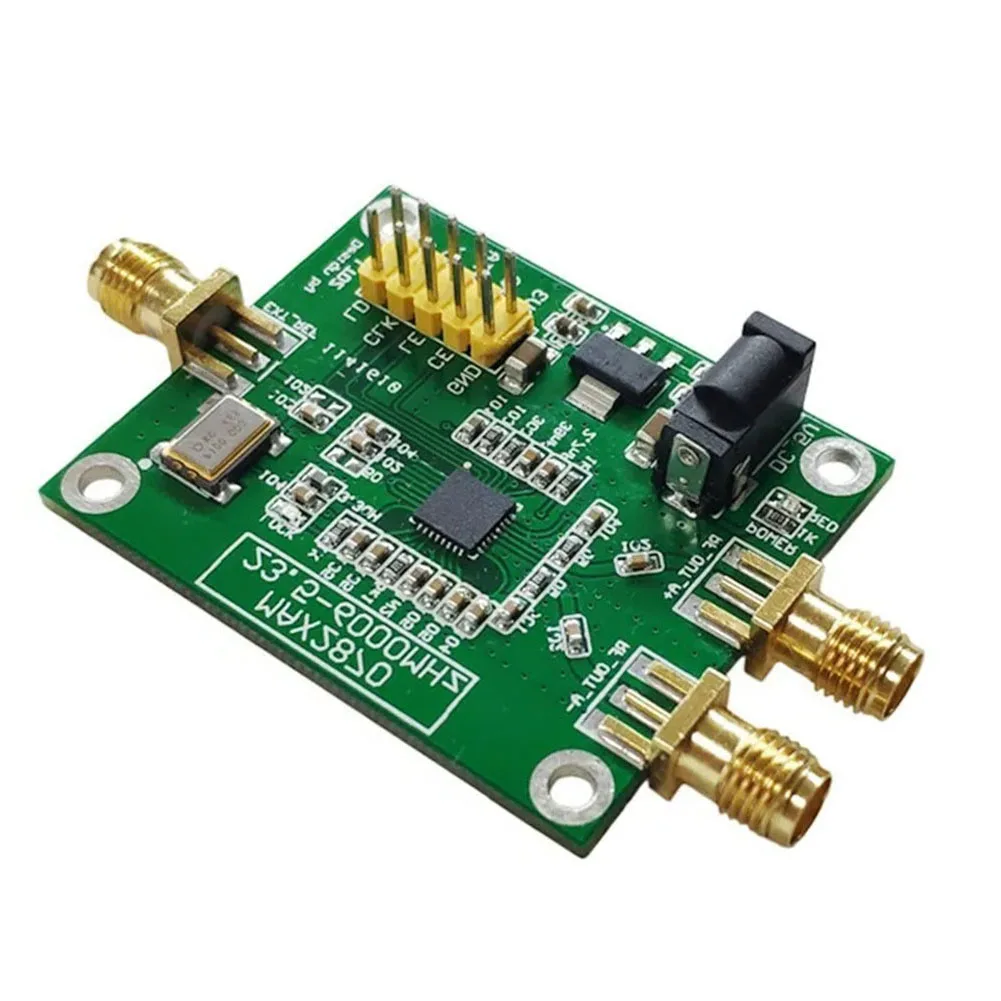

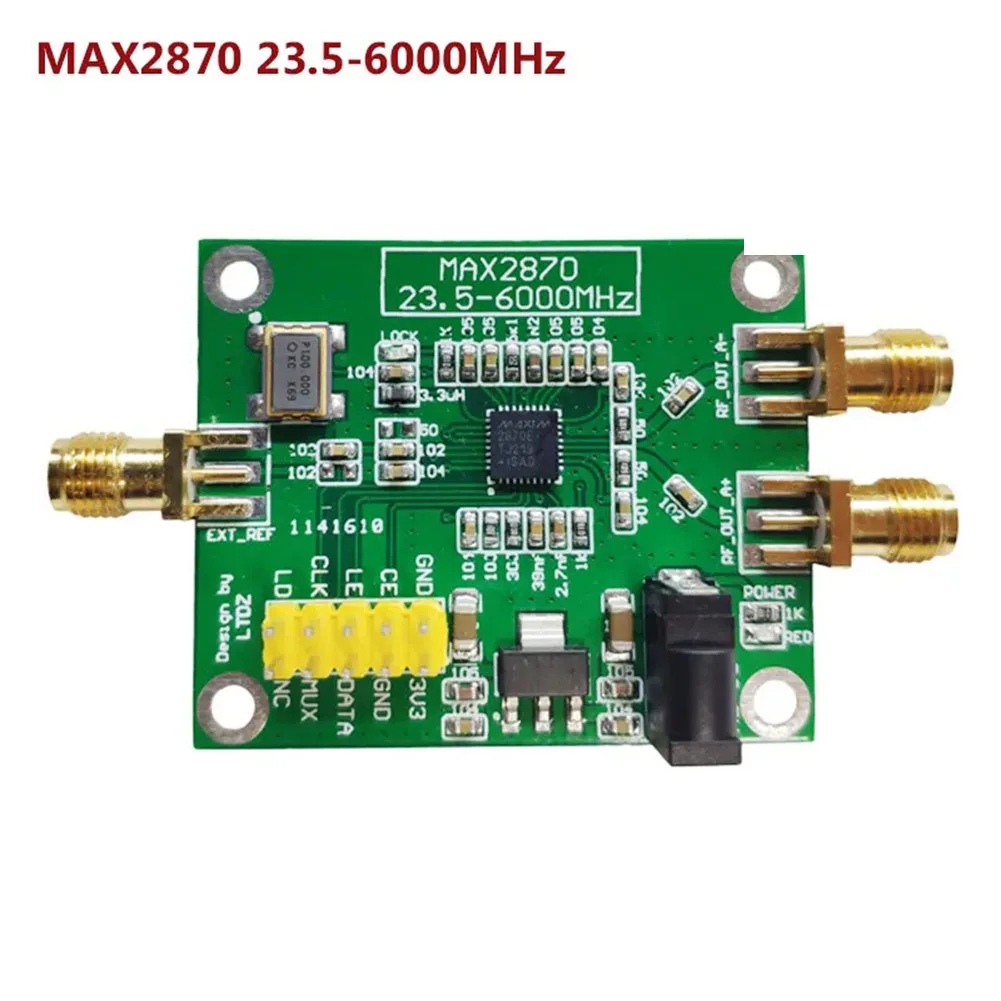

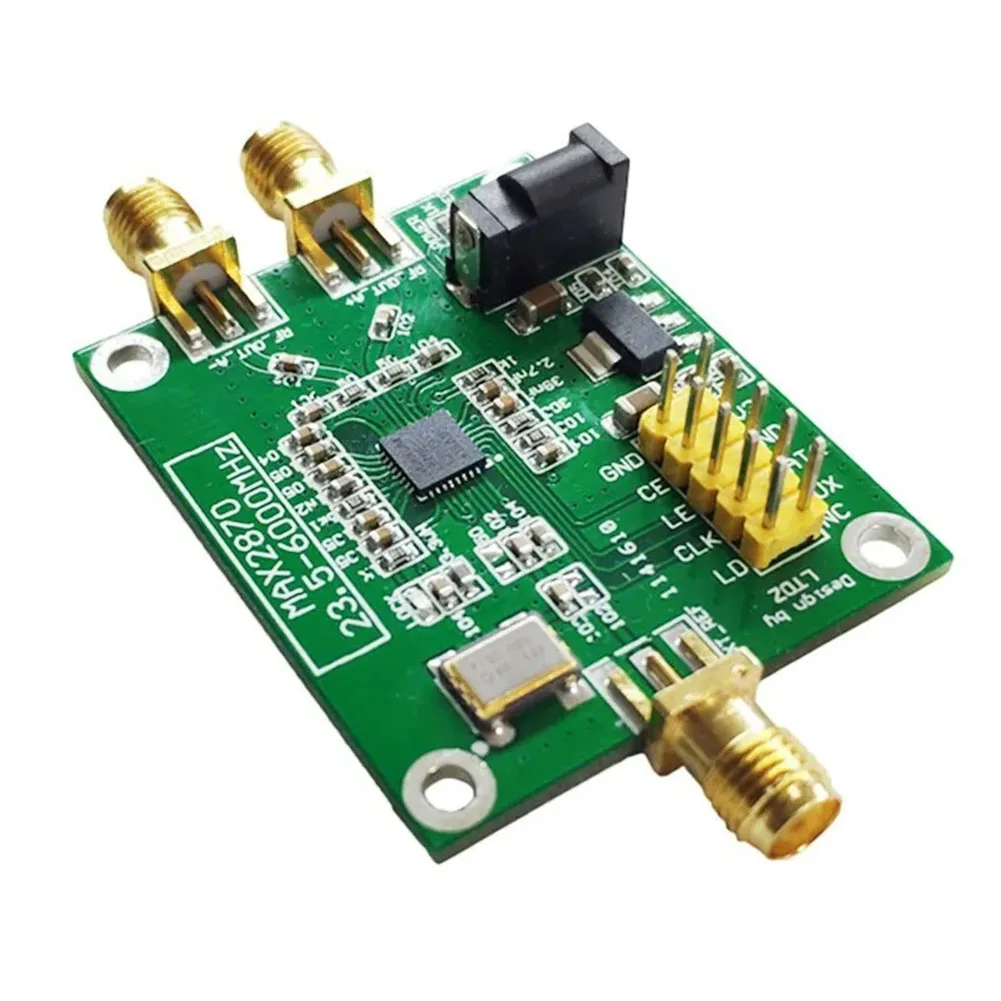

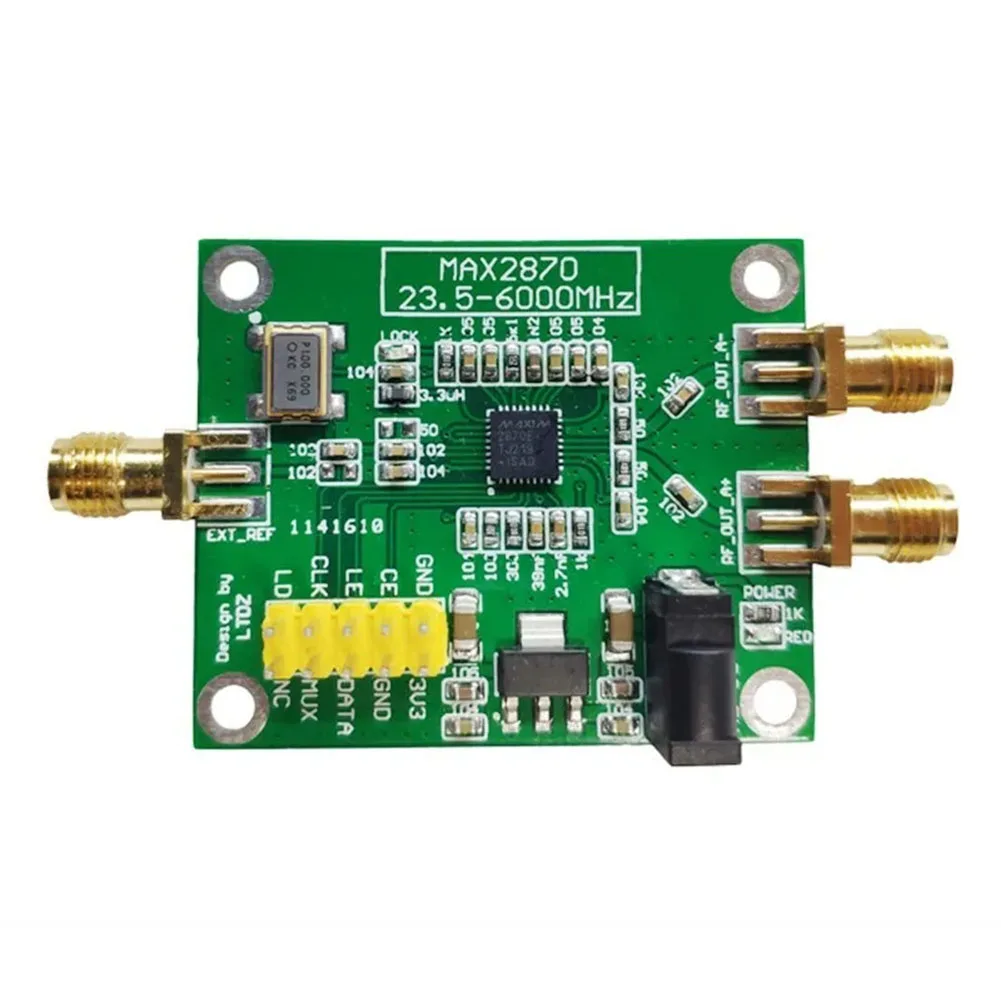

MAX2870 23.5-6000MHz RF Signal Source Signal Generator Module PLL VCO W/ 3.3V Pin Header Power Supply Three-wire Control

Save 4%

Price:
Sale price$80.66 Regular price$84.17
Stock:
In stock

Description

SPECIFICATIONS

Brand Name: NoEnName_Null

Origin: Mainland China

DIY Supplies: ELECTRICAL

Certification: none

Features:
* Brand new and high quality
* Made of high quality materials, sturdy and durable
* MAX2870 23.5-6000MHz RF signal source signal generator module PLL VCO -4dBm~+5dBm with STM32 driver
* Ultra-wideband phase-locked loop (PLL), integrated voltage-controlled oscillator (VCO).
* 23.5MHz to 6.0GHz frequency range signal output.
* Maintains excellent phase noise and spurious specifications.
* This device offers dual-channel differential output drivers that can be individually configured to provide output power from -4dBm to +5dBm.

Specification:
Size: 65mm*37mm*12mm
SPI: three-wire control
Power supply: 3.3V pin header power supply or DC 5V (onboard 3.3V voltage stabilizing IC)
Onboard: 100MHz reference clock frequency

Package Included:
1 x RF signal source
1 x STM32 driver
1 x SCH schematic

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
