Description
SPECIFICATIONS
Brand Name: MoesHouse
Origin: Mainland China
is_customized: Yes
Wattage: 500W(Max.)
Voltage: 110-240V
Certification: CE
Model Number: Smart Curtain Module
Voltage: 90-250V AC 50/60Hz
Current: 2A
Power Load: 500W(Max.)
WiFi frequency: 2.4GHz WiFi
RF frequency: 433MHz,encoding 1527
Operation temp: -10 Celsius -+ 40 Celsius
Case temp: Tc +80 Celsius(Max.)
Operation range: Less than or equal to 200m
Dims(W*D*H): 52*47*18mm(without clip)
IP rating: IP20
Warranty: 1year
Note:calibtration is not suitable well for heavy metal blinds for material restricted.
Product Features:
1. Use with Much More Convenience with stop function on traditional switch: A really good substitution for one more new smart roller blinds switch to work with your traditional curtain switch to realize intelligence.Press your traditional curtain switch once after switch to up/down (on the same button)to manually stop your curtains easily.Also,it can be connected with your roller blinds shutter motor to smartly control your curtains.
Note before order:
1.Please check your motor is with 4 wires before make your order.(Note:Motor not included,need a separate purchase.)
2.This roller blinds shutter switch module can not work with DC motor.
3.Please use this module with RF433 remote control switch(only encoding 1527 required.)
Note:Motor not included,need a separate purchase.
Q&A:
1.Q:Does this work with Google Home?
A:Yes,it does.And it's also compatible with Alexa.
2.Q:Do I need to buy a hub to work with the curtain module.
A:No,there is no need for you to buy a hub and no hub required for the module.
3.Q:Can I control the module with my own remote control switch?
A:This curtain switch module is RF433 built in and it can only work with RF433 remote control switch with encoding 1527.
4.Q:Shall I buy a smart curtain switch to work with this module?
A:No,you can just connect the module to your traditional curtain switch to realize intelligence.
5.Q:What should I do if I can't configure the curtain module?
A:a:Please check whether device is powered on.
b:Make sure your mobile and curtain module are under the same 2.4GHz wifi network.
c:Whether it's in good internet conditions.
d:Make sure the password entered in App is correct.
e:Make sure the wiring is correct.
6.Q:Which products can I control with the device?
A:Curtains,shutter,blind....
7.Q:What happens if the wifi goes off?
A:You can still control the device connected to the curtain module with your traditional curtain switch and once wifi is active again the device connected to the curtain module will connect automatically to your wifi network.
8.Q:What should I do if I change the wifi network or change the password?
A:You can connect the module to the wifi network according to the App User Manual.
Use with Convenience
RF433 Remote Control
Remotely control with remote controller with 1527 encoding
Note : R433MHz and 1527 encoding available.
Hands-free Voice Control:Freely control your roller blinds with voice command
Timer and Schedule:Open and close your roller blinds as your own daily timetable.No more worry about forgettingto open or close.
Curtain Calibration Supported in App
Note:calibtration is not suitable well for heavy metal blinds for material restricted.
Percentage Adjustable for Your Curtains
Note:calibtration is not suitable well for heavy metal blinds for material restricted.
How to Add Schedule in App
Note:calibtration is not suitable well for heavy metal blinds for material restricted.
Smart APP Remote Control
Take full control of roller blinds shutter wherever you are on your phones.Control in advance with ease when you are away from home.
Multiple Non-interfering Control Modes
Use with Convenience
Work with traditional roller blinds switch realize intelligence. A really good substitution for one more new smart curtain switch.
Hands-free Voice Control
● Control your roller blinds with your voice only for maximum convenience.
●Simply Say, "Alexa,turn off the roller blinds"when you are sitting on your sofa
Wireless Remote Control
●Take command of your roller blinds by using the "SmartLife/Tuya" app (lOS or android) anytime from awywhere.
●Remotely check whether you have opeaed or closed theroller blinds.
Multi-scenario Matching
Match different kinds of curtains such as window blinds/roller blinds/venetian blinds.
Schedules&Countdown timer
Set a schedule to open/close the roller blinds according to your own timetable.Do not have to repeat the operation every day..
Use a countdown timer open/close the curtains through your smart phone,1min to 6 hours is all fine.
Family Sharing
Share this smart WiFi curtain module to your family members to share the convenience together.
Support one mobile phone to control multiple devices or multiple mobile phones to control one device.
Choose to work with roller blinds shutter motor only or together with curtain switch.
You can create group in the APP to manage all the blinds in your house and share the device to
your family members.

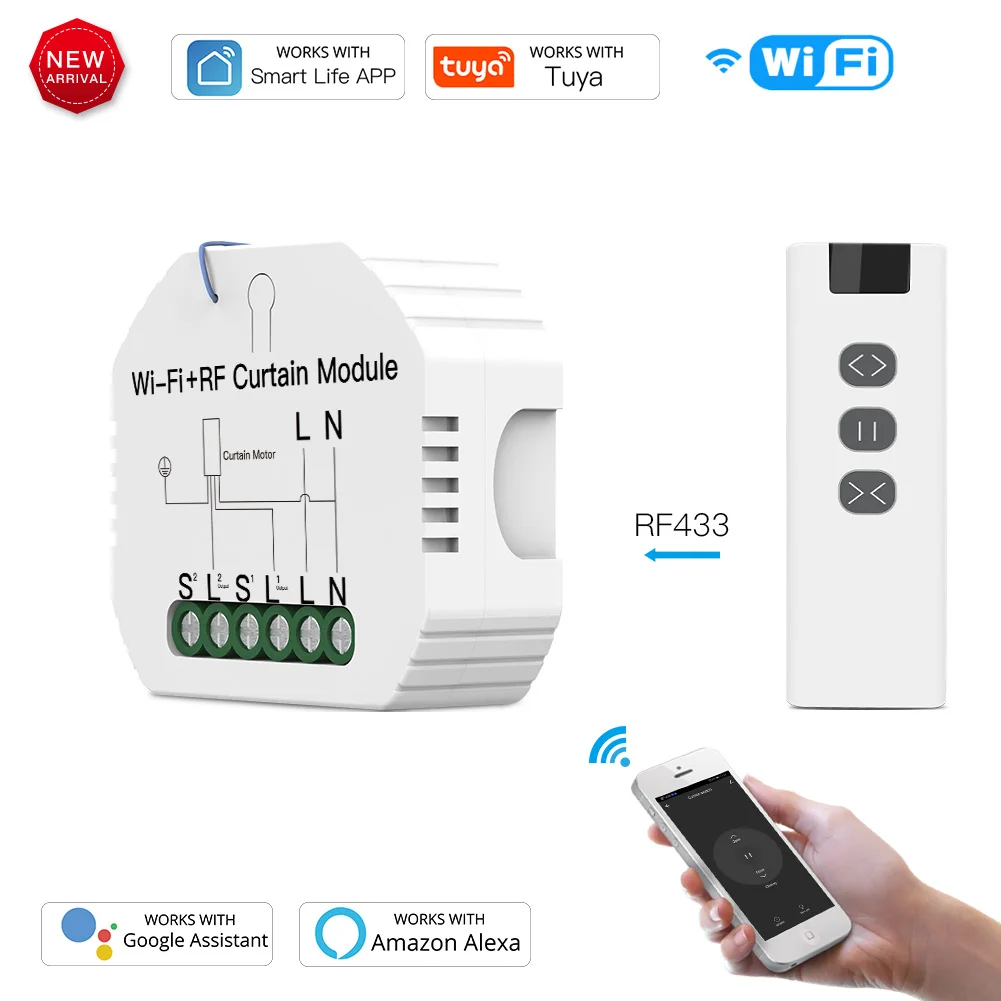

Product type: WiFi Curtain Module
Voltage: 90-250V AC 50/60Hz
Current: 2A
Power Load:500W(Max.)
WiFi frequency: 2.4GHz-2.4835GHz WiFi
RF frequency:433MHz,encoding 1527
Operation temp: -10℃-+40℃
Case temp: Tc +80℃(Max.)
Operation range:≤200m
Dims(W*D*H): 52*47*18mm(without clip)
IP rating: IP20
Warranty: 1year
