Description
SPECIFICATIONS
working frequency: 433.92MHz +2.4GHz WIFI
working voltage: AC 85-240V
Max current: 10A
Control type: RF Control+APP Control+Voice Control
Support app: Tuya or Smart Life
Wall panel size: 86*86 mm
Remote size: 80*60 mm
Remote range: Up to 50m (Theoretical distance)
Remote battery: 2pcs CR16(Include)
RF Code: 1527 Learning
Feature 1: Timing / Countdown / 3 Kinds Of Restart State APP Control mode
Feature 2: Mini size / Multi control
Feature 3: Wall panel has magnetic
Application location: Home, Farm, Factory, Office, Supermarkets and so on
Application 1: Led Light Lamp Bulb Switch, Home Security Alarm System
Application 2: Heater, Fan, Fish tank, Diy Home electrical equipment and so on
Application 3: Water heaters
Working temperature: -30 ~ +80 Celsius
Receiving sensitivity: 97dbm
Brand Name: WenQia
Item Type: SWITCHES
Switch Type: Push Button Switch
Certification: CCC
Certification: ce
Warranty: 1 Year
Model Number: WenQia Smart Switch 01
Material: plastic
Hign-concerned Chemical: None
Is Smart Device: YES
Features: Three control method,Magnetic remote,Timing,Stable signal
Current: 10A
Origin: Mainland China
Certification: RoHS
Certification: EMC
Certification: CCC
Choice: yes
semi_Choice: yes
1.This is our new RF wall panel switch.It is also a base.The remote control can be taken out of the base for use;
2.The remote itself has magnetic, it can be attached on the refrigerator;
3.The mini light switch has RF + WiFi function, it supports APP + RF +Voice control;
4.There is a video on the link.You can take a look if this is the first time you are using this product;
Why choose us
1.Three control method
This mini receiver has wifi+rf function.It supports APP + RF + Voice control;

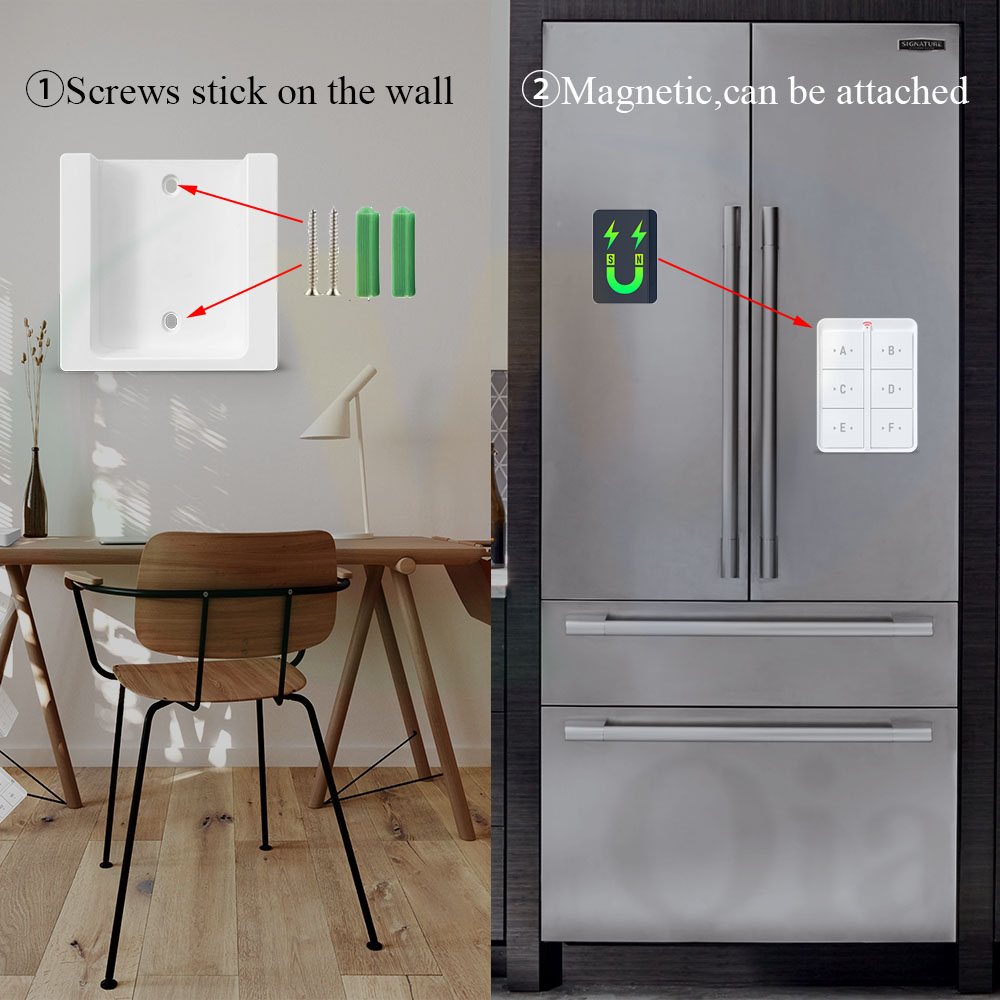

2.Magnetic wall panel switch
You can stick wall panel base on the wall.And the remote has magnetic, it can be attached to the refrigerator;
3.Multi control support
You can use one button to control 5 pcs receivers at the same time(Press this button, all 5pcs receivers will work at the same time)
You can use 10 pcs wall switches to control same receiver
You can use this 6 buttons wall switches to control six receivers(Each button can control a receiver on and off)
4.RF 433MHz 1527 learing code
It has same code with other products.This new wall switch can work with all receivers/light switches in our store(Not include kinetic products)
5.Timing module
You can set up a schedule or countdown on your app. To on or off your home devices automatically

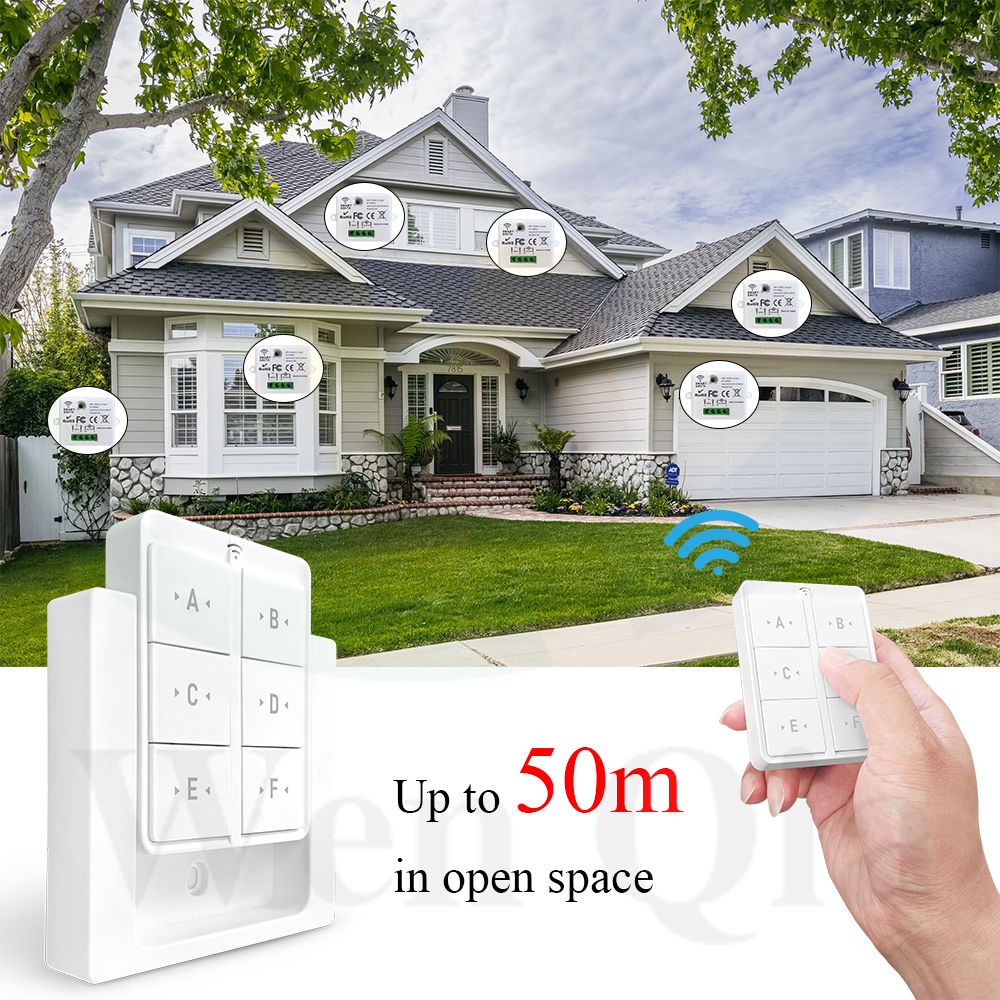

6.Stable rf signal
RF signal can pass through walls, it supports 50m in open space
7.Excellent product
Our product has passed CE,CCC,RoHs.It is very safe and in good quality
8.Fast shipping and excellent after-sale service
We usually ship the order out within 24 hours after you paid it.And we will solve all problems you met during on the shopping.
Product parameter
Parameter : wifi+rf switch
Input power : AC 85-240V
RF Frequency : 433MHz
WiFi Frequency : 2.4GHz
WiFi Standard : IEEE 802.11 b/g/n
Remote storage : 10pcs
Size : 47*42*23 mm
Max Current : 10A
Shell : Yes
Port : L/N
Certification : CCC,CE,RoHS
Parameter : RF wall switch
RF frequency : 433MHz
Support encoding : 1527 Leaning code
Transmitting range : Open space is more than 50 meters
Battery : 2pcs CR2016(Include)
Buttons : 6
Feature : Remote has magnetic
With : Screws
Simple connection
You need a Neutral and Live line as a power supply.Another 2 ports is for devices(fan,light,led,lamp,etc)
Three control method
Voice Control + APP Control +Wireless Wall Switch Control or Reomte Control
Multi control support
1.You can use one button to control 5 pcs receivers at the same time(Press this button, all 5pcs receivers will work at the same time);
2.You can use 5 pcs wall switches to control same receiver;
3.You can use this 6 buttons wall switches to control six receivers(Each button can control a receiver on and off)
Universal wall switch,work with all 1527 learning code 433mhz products in our store(Does not include kinetic products)
Timing module: Countdown,schedule and timing
50m rf stable signal in open space
Product Application Area
Products can be used in homes, farms, factories, offices, laboratories, supermarkets and so on;
Remote control Electric curtain \ Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device \ Signal transmission \ DIY;
Remote control Home appliances humidifiers coffee machines, microwaves, Led, Light and so on.
How to use
Work in RF way
Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds;
Step 2: Press A button once. Wait for 3 seconds.Toggle mode Succeed.
Now press A, this light switch will work, press A again, light switch will stop;
Do the same thing again to pair with B button-light switch 2, C button-light switch 3.....
How to clear the signals
Only one step :Press the learning button(on the light switch) 8 times. Wait for 3 seconds;
Work in WiFi
1: Search "Smart Life or Tuya Smart" on APP store, Google Play or scan the QR code on user manual to download and install it.
2: Press the button on switch until the indicator light flash. You can also hear a voice too.
3: Open "Smart Life or Tuya Smart App", discovery and add device in the app, and then finish configuration according to the guide.
Work in voice
1. Modify device name so your Amazon Alexa can easily recognize the name. For Example: Living Room Lamp, Bedroom Light.
2. Use Alexa App or Computer to set up your Amazon Alexa.
3. Select 'Skills' and search for 'Smart Life' on Menu. Enable Skill and type in your login info to link the account
4. Ask Alexa to discover devices. Then you can control your devices by voice.
We usually ship the product out within 24 hours after you paid the order.If you want a fast shipping method,like dhl,fedex,ups,please let me know.
Questions and answers
1.What is the difference about the wall switch you sold before ?
This panel has a detachable remote for your convenience. The remote is magnetic and can be attached to the refrigerator.
2.Can i use my own wall switch/transmitter control this mini module?
The receiver uses rf 1527learning code/2262 fixed code.And the frequency is 433mhz.If the frequency and code are same,they can control each other
3.Does this mini module has time function?
Yes.It has countdown,schedule,time function.For example,you can set up to make it work on every morning 7:00
4.I cannot connect with my phone,what is going on?
Please make sure the phone and mini module are in same network.They you need to press learning button too
4.Does wall switch and have battery?
Yes,this wall switch includes 2pcs CR2016 batteries.
5.Do you have a wholesales price?
Yes.We have many cooperation in russia,brazil,mexico.The shipping is cheap.We can give you the best price
