Description
SPECIFICATIONS
Brand Name: UBARO
Origin: Mainland China
Current: 10A
Features: Dual control switch
Material: Plastic
Item Type: SWITCHES
Warranty: 1 Year
Switch Type: APP Control
Certification: RoHS
Certification: FCC
Certification: CE
Certification: ce
Certification: FCC
Certification: ROHS
Is Smart Device: YES
Product name: Cross switch
Switch Standard: EU Standard
size: 86*86*35mm
working voltage: AC:100-240V 50/60Hz
Power: 500W/Gang
control mode: Control Mode APP Wireless Control /Voice control /Touch Control
Support voice: Amazon Alexa /Google home
Working environment Temperature: -20℃~50℃
Standby power: 0.5W
WIFI Standard: 2.4GHz 802.11bgn
Hub Requirement: No
WI-FI Requirement: Yes
Network Security: WPA/WPA2
Support System: Above iOS 8.0 & Android 4.3
Language Support: 21 languages
Certification: CE/FCC/RoHS
Panel Color: White/Black/Golden
Panel material: Tempered Crystal Glass
Material: ABS+PC Plastic
APP: Tuya Smart/Smart Life
Input cable requirements: Neutral wire required
Dual control requirements: Need to work under the network
Choice: yes
semi_Choice: yes
1: Tempered glass panel wifi smart cross switches
2: Standard: EU Standard

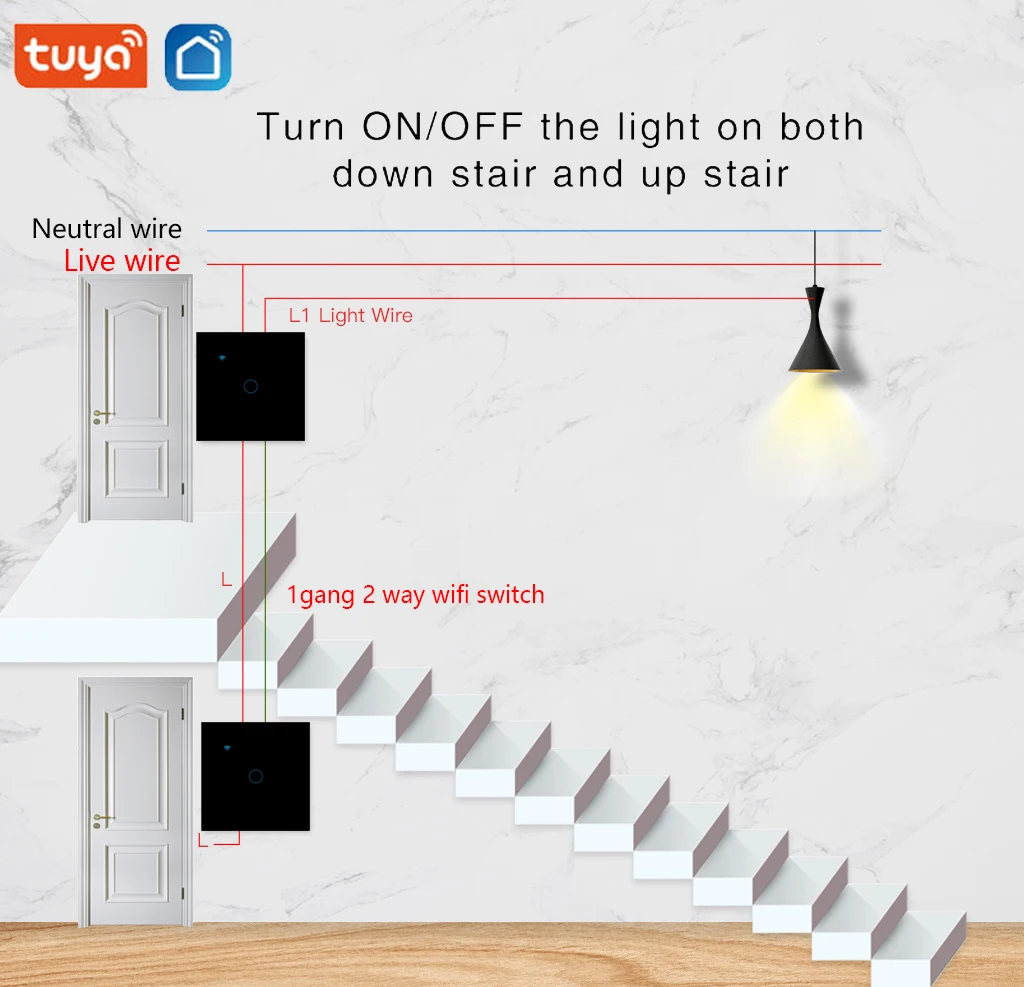

3:: Use place: stair switch/bedside switch
4:Input voltage:AC100-240V 50/60Hz
5:Power current: 10A
6:Load: Normal lamps:5~600W/Gang
LED:5~300W/gang
7:Stanby power: ≤0.2W
8:Relative humidity: 10% ~ 93%
9:Working temperature: -20℃~+55℃
7:Certification: CE, RoHS,FCC
10:Wifi Standard : 2.4GHz 802.11b/g/n
11:Application: smart life
12:Voice Control: Google Home, Amazon Alexa
13:Wiring: Need neutral wire required
14:Led indicator: ON-blue OFF-red
15:Installation Box: Round and Square
Dual-control and multi-control device requirements
1: The power must be cut off during installation/maintenance
2: The product you purchased is the quantity indicated in the picture, if the SKU on the picture is 2pcs, the quantity you purchased is 2pcs
3: Both products have the same function. If you want to control your lights from two places, you need to link them on the mobile app
4: Need to access the neutral line (neutral line)
Equipment wiring and installation dimension drawing
1: The device needs to be connected to the live wire and the neutral wire (neutral wire)
2: Equipment installation is suitable for multiple installation bottom boxes
3: Install 60mm hole spacing
4; Device add app operation method
5: The device needs to add dual-control and multi-control functions, and the operation steps for device association
6: If the operation of dual control and multi-control is unclear, please contact customer service to provide operation video, or email; 18926515905@szubero.com

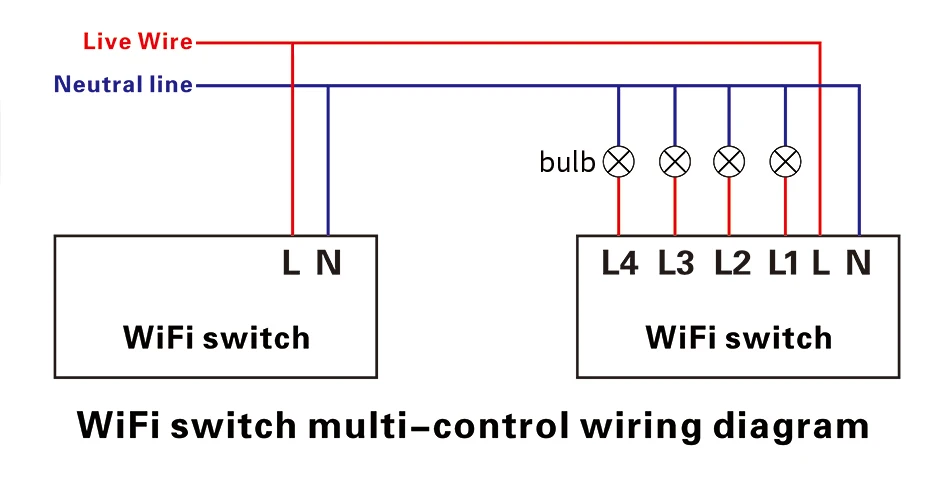

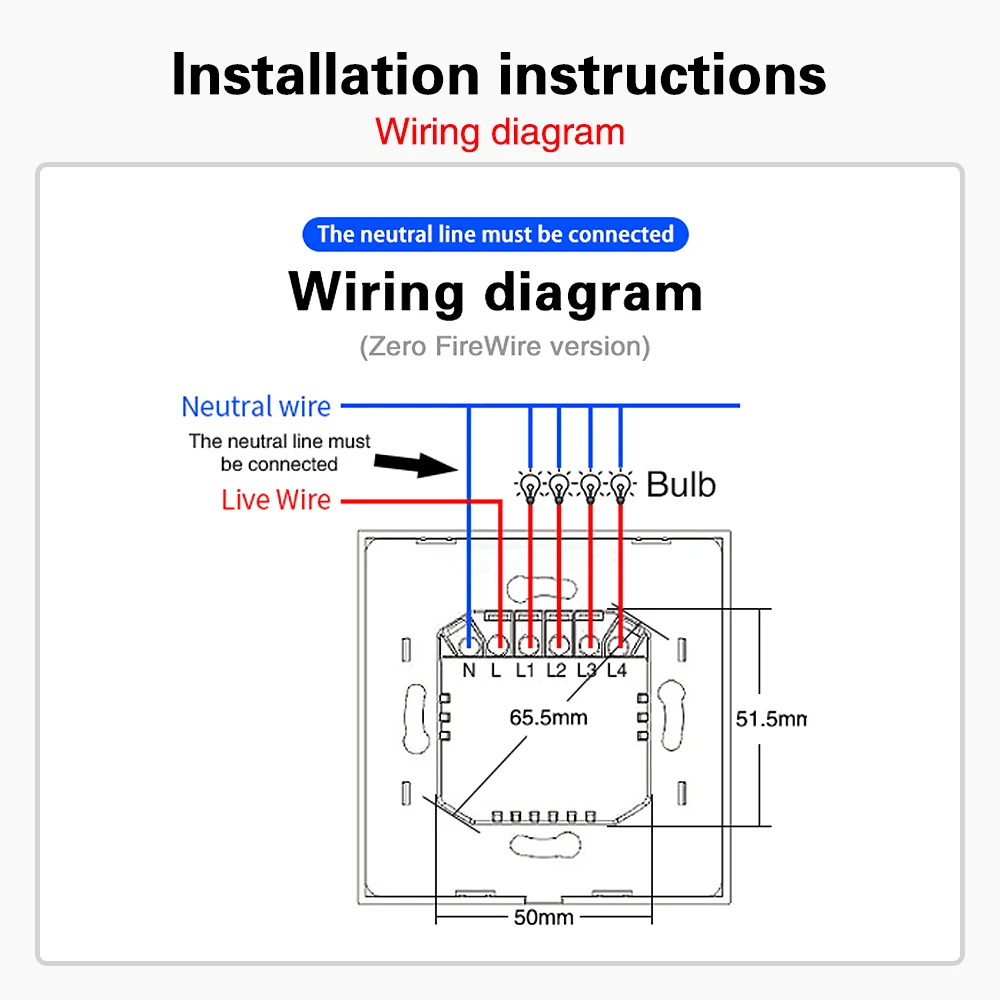

WIFI switch multi-control wiring diagram
1. The neutral wire is connected to the 'N' terminal
2. Live wire is connected to 'L' terminal
3. After the installation and wiring, please download the graffiti app to add the device

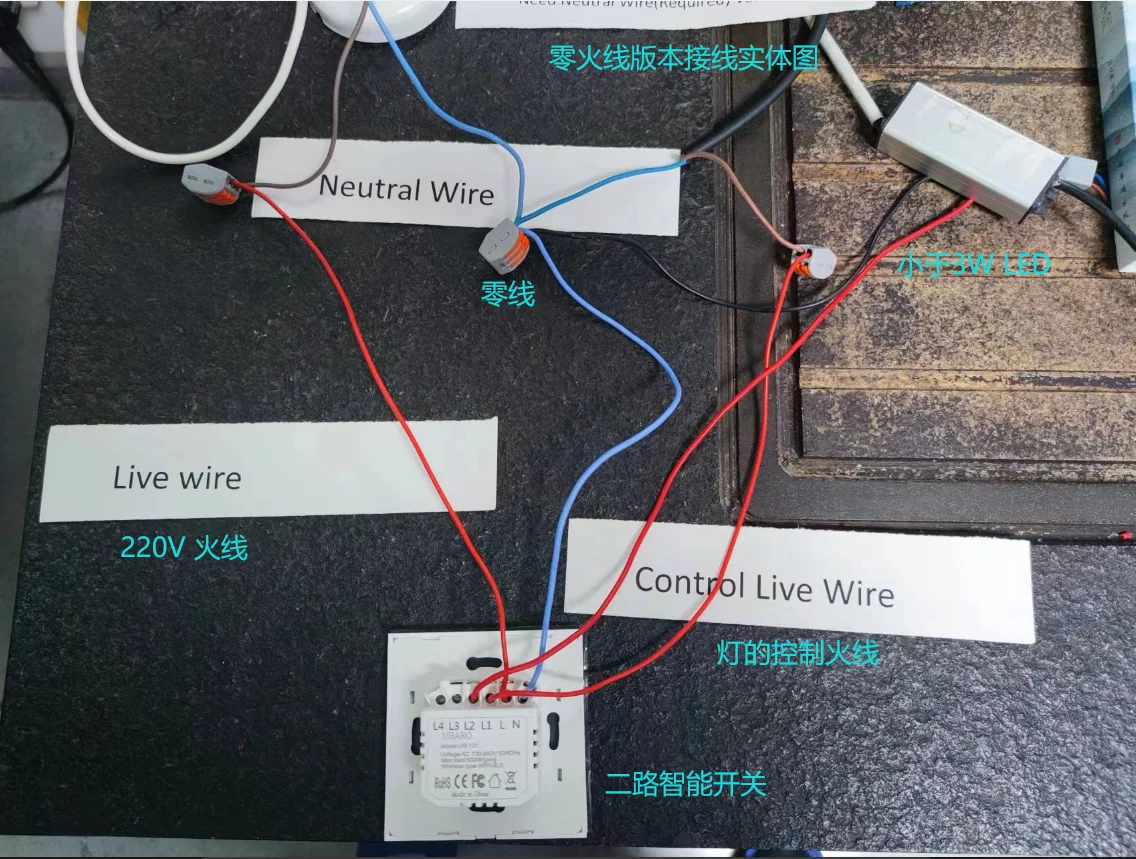

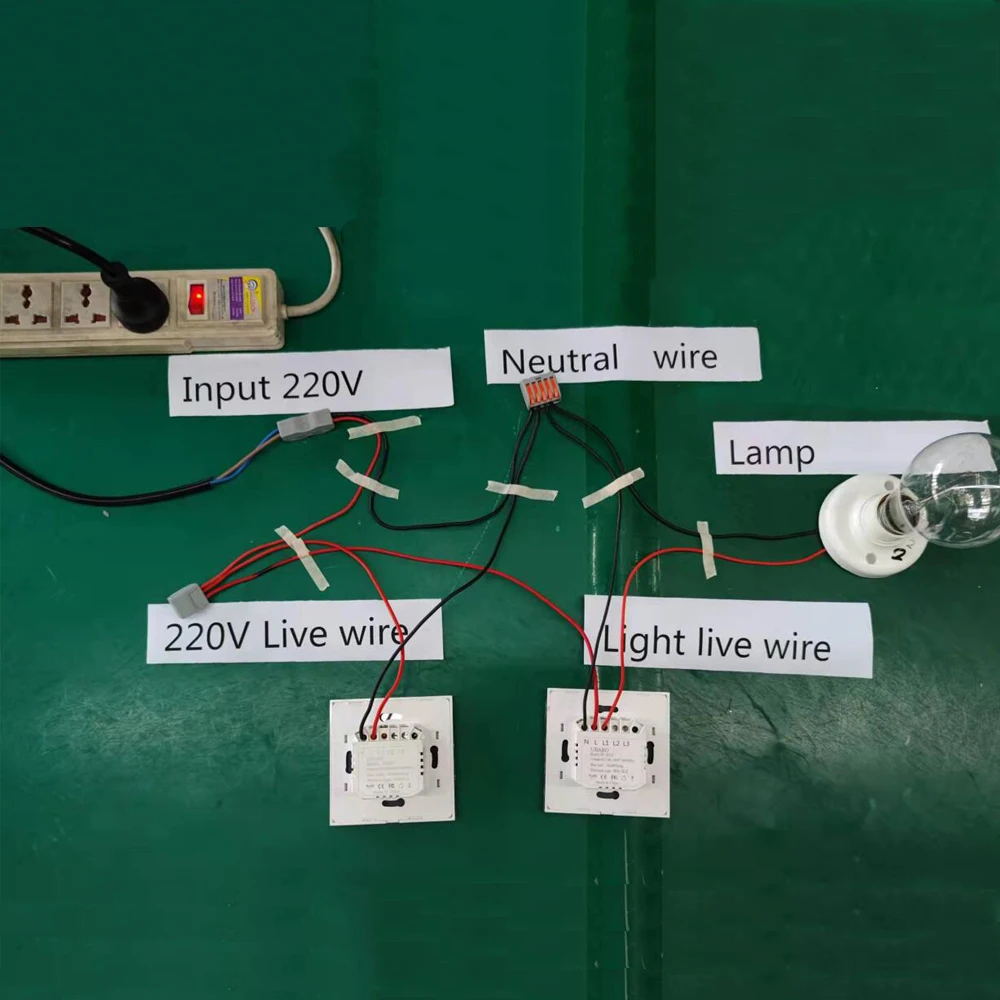

Two switches How to install the connecting wires
1: This product requires live wire and neutral wire.
2:The functions of the two switches are the same, you can choose any switch as the main switch

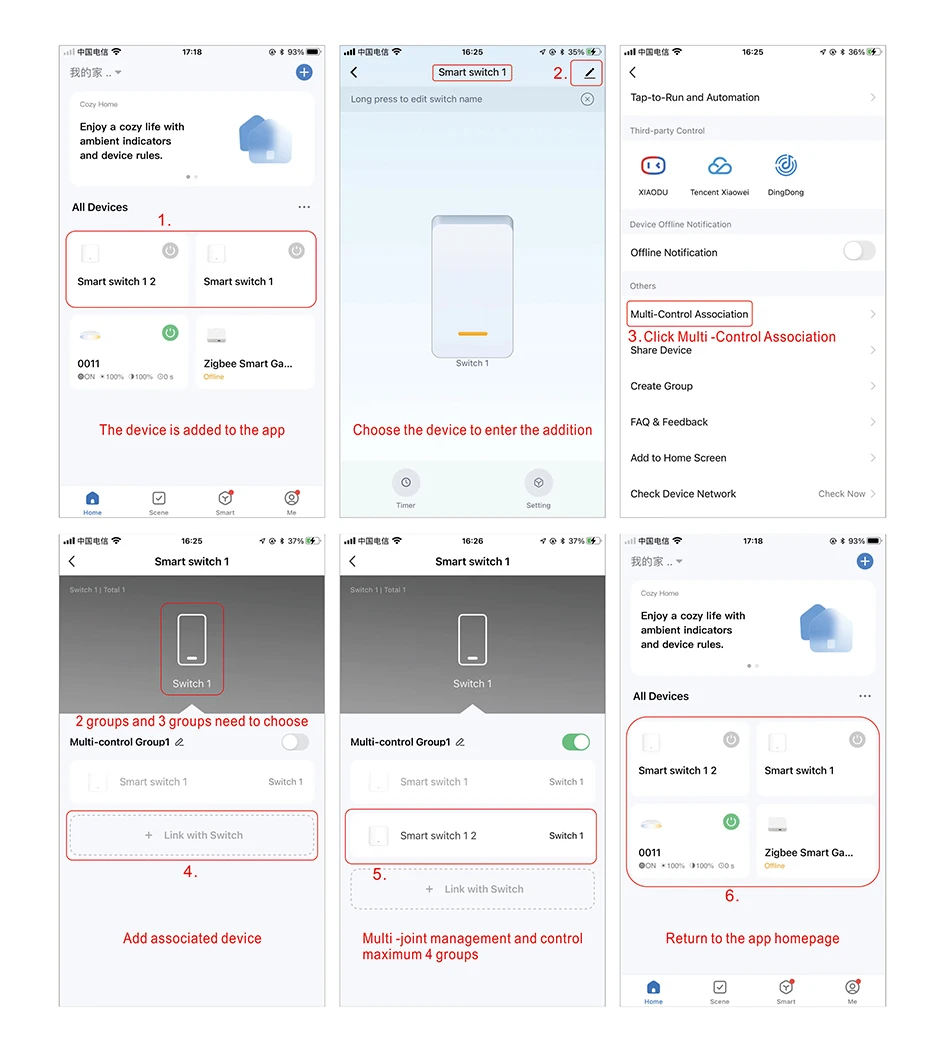

How to set up dual-controller association on your phone
Smart dual control 1 operation step
. Need to have a network of operations and work multi -control
. You need to add the WiFi switch to the graffiti app
The signal of the switch and the mobile phone needs to be operated under the same network
. You can control up to 4 groups of multiple control switches for multiple controls.
. Select the switch → click to modify the next step → multi -control correlation →+associated switch → select the addition switch to return the APP homepage
Function
1:The light bulb can be operated wirelessly by mobile phone APP

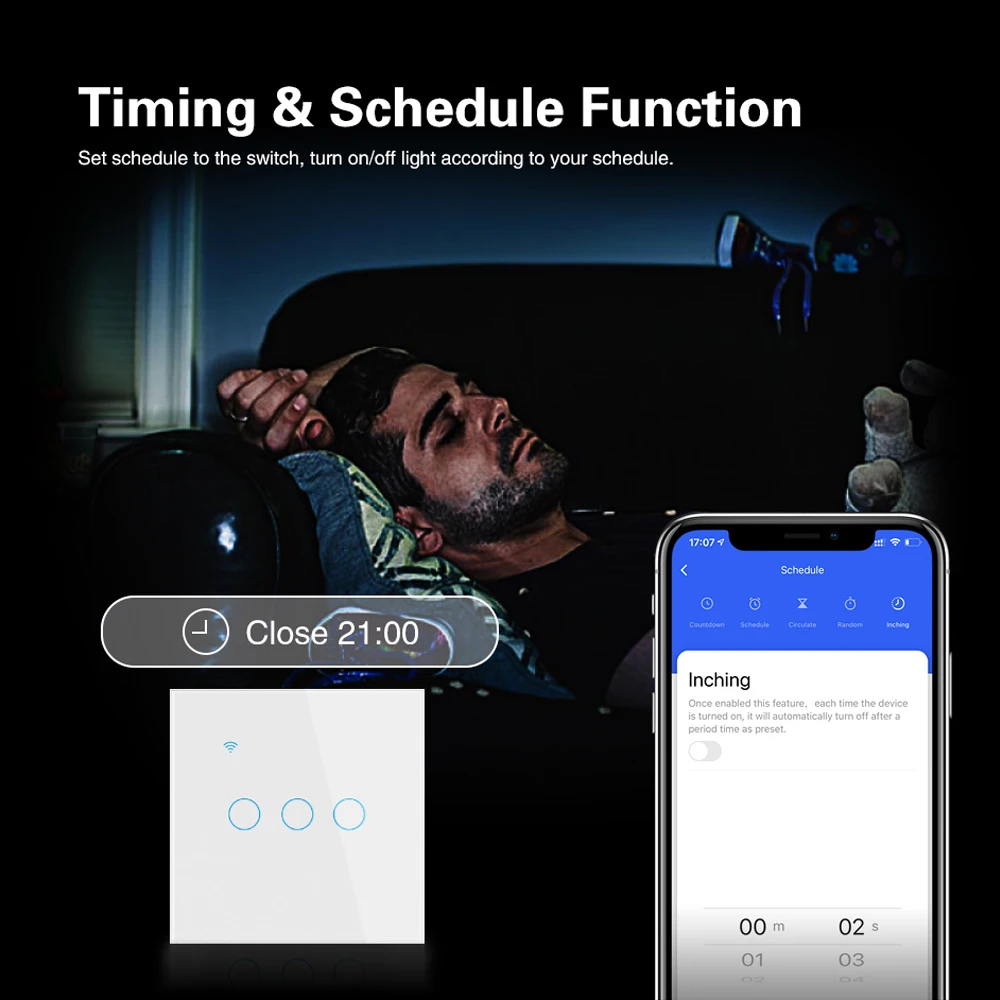

2:Can set a schedule for switching light bulbs on and off
3:Can control the light bulb by voice, support Google home Amazon Alexa voice device
4:You can share it with your family through the APP

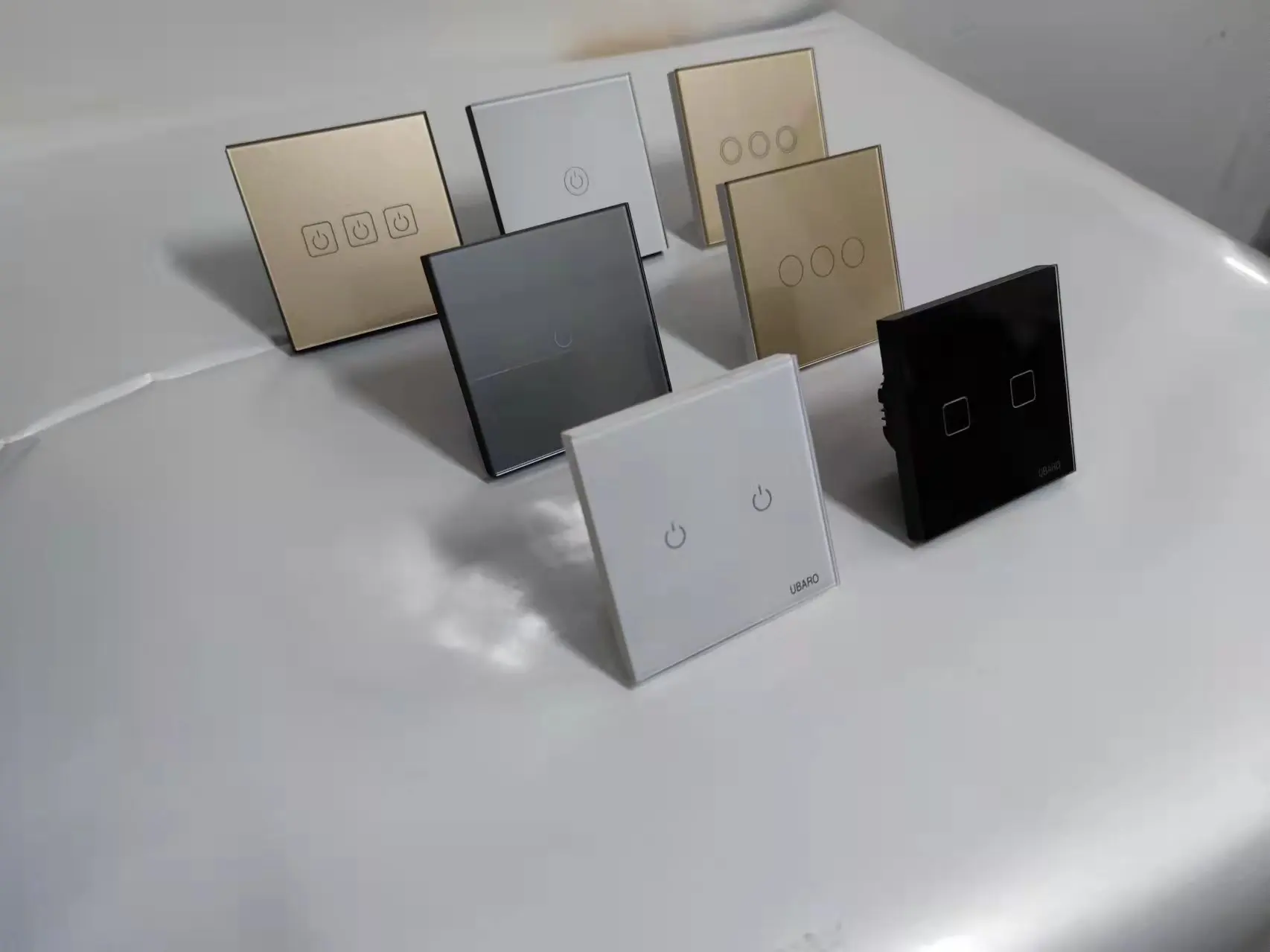

Product real color picture display
Mobile phone pictures only show product color
FAQ
Q: Does your Wifi touch sensor light switch require a neutral wire installed?
A: Yes, you need to install the neutral wire.
Q: Can your Wifi touch light switch work with Zigbee or Home Kit?
A: Sorry, our items are currently unavailable.
Q: Will your Wifi light switch work with Smart Life Tuya or Google Alexa?
A: Yes, it can work with them.
Q: Do you provide 2 way wifi touch light switch?
A: Yes, we provide 2-way wifi touch switch, it works stably, but you need to buy at least 2 2-way wifi switches. (The application uses the multi-control link function)
Q: Does your Wifi touch light switch have a backlight?
A: After the connection is successful, the red backlight will be on. Let you clearly notice our touch switches in the dark.
Q: Can our switches be mounted vertically or horizontally on 86mm/86mm glass panels?
A: Yes, we can mount it in different ways, but you will see small holes. (Open the small hole of the glass cover)
