Description
SPECIFICATIONS
Brand Name: Rti-Tek
Origin: Mainland China
Wattage: 3* 1.5V AA Alkaline Batteries
Certification: CE
Certification: RoHS
Model Number: TRV602
Product Type: Tuya Smart Zigbee Thermostatic Radiator Valve
APP: Tuya Smart/Smart Life
Thread size: M30*1.5mm/ M28*1.5mm
Size: 58.4*97*58.4mm
Protection Degree: IP21
Temp. Setting Range: 5~35°C
Voice Control: Amazon Alexa / Google Home/Alice
Suitable for: Tuya Zigbee Thermostatic Radiator Valve
TRV screen orientation: can adjust 4 screen display directions
Gateway: TUYA Zigbee Gateway
TRV: Zigbee trv
Choice: yes
semi_Choice: yes
Zigbee 3.0 Tuya TRV Smart Thermostatic Radiator Valve WIFI Programmable Temperature Controller Alexa Google Home Voice Control
ZigBee wireless hub is a must that connects to the valve many other ZigBee smart products and realizes the whole linkage of your smart home devices.Simply add your gateway to the App,then add your radiator actuator to your gateway in the App.
Porduct Hightlight
1.【Tuya Smart APP WIFI remote control】:You can connect this product to Tuya Smart/Smart Life APP via Zigbee Gateway.
You can control the temperature of your home anytime and anywhere, so that you can enjoy the most comfortable temperature when you get home.
2.【Alexe/Google Voice control】:In addition to control the product from your phone or manually, you can also control through Amazon Alexa and Google Assistant via voice control, freeing your hands and making your life more convenient.
3.【Programmable Function】:You can set different programming modes for each day of the week according to your schedule. There are 4 time periods per day for you to set.It can help you save more energy.
4.【Data Logging Function】:The Tuya Smart APP will record the valve opening degrees and the temperature of the room, allowing you to understand the working status of the product more intuitively.
5.【Various Adapters 】:6 different adapters are included in the package, you don't need to worry about this product not matching your device.
6.【More thoughtful features】
①Child Lock: Prevent children from changing settings;
②Rotatable screen: allows you to read it from different angles;
③Loss of temperature detection: Detects that doors or windows are not closed tightly;
④Timing Start: Prevents minerals in the water from clogging the valve.
10.【Great value for money, comes with 6 valve adapters Comes with 6 differen】
Tuya ZigBee TRV Voice Control
Supports voice control through Google Assistant and Amazon Alexa, and is used with Tuya ZigBee wireless gateway when connecting
Smart TRV Statistics Function
Technical Specifications
Power: 3*1.5V AA alkaline batteries (not included)
Current Consumption: 100mA Max
Protection Degree: IP20
Working environment temperature:-5~50°C
Display accuracy:0.5℃
Default range of temperature adjustment:5~30°C
Thread size:M30*1.5
Insulating condition: Normal environment
Size(mm): 58.4*97*58.4mm
Linear Travel: 4.3mm
Dimensions(W x H x D): 58.4mm x 97mm x 58.4mm
Running program: Set per 1 week as a cycle

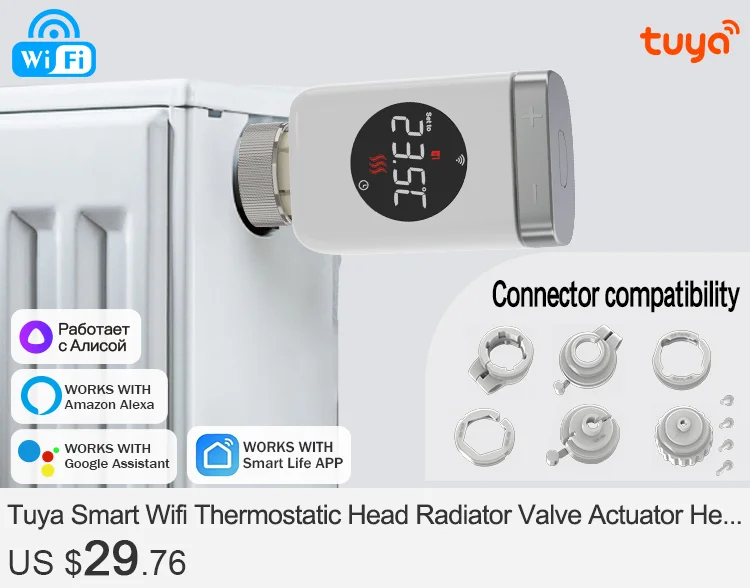

Tuya Smart Thermostatic Radiator Valve TRV Adapters
Great value for money, comes with 6 valve adapters Comes with 6 different types of valve adapters, suitable for 97% of the radiator valve interfaces on the market.
Zigbee Smart TRV Package List
1 * Radiator Thermostat
1 * Bag of Accessory
1 * User Manual
(No batteries)
Q&A
Q:Can I use my own hub to connect with the valve?
A:No,this radiator thermostat can only be used with Tuya ZigBee wireless gateway hub;if you have zigbee hub, that is ok.
Q:Can this thermostat be set to Fahrenheit display?
A:No,it can only be displayed with Celsius display.
Q:Can I program the schedule myself?
A:Yes,our thermostat is programmable.You are able to program your schedule freely.、
Q:Can I control the thermostat if I am not at home?
A:Yes,after successfully connecting it to the zigbee hub,then you are able to control your device on your smart phone App.
Q:Does this thermostat have a screen lock to prevent guests or kids from tampering with the settings?
A:Yes, it does. It has a fully locked mode that prevents any changes or misoperation by children.
Q: Is the battery included?
A: No, because of delivery limitation, the product is not equipped with battery.
Q:How does our thermostat radiator valve control the temperature in the room?
A:Combined with the collected ambient temperature and the target temperature set by the user, the water flow through the heat sink is changed by adjusting the valve opening and closing degree of the TRV to achieve the purpose of effectively adjusting the temperature .
Q:What is the temperature displayed on the screen of the TRV? Is it the temperature set by the user or the ambient temperature?
A:The temperature displayed on the screen of our TRV refers to the temperature set by the user.
Q:How to set the temperature and view the indoor ambient temperature?
A:1.There are two ways to set the temperature: (1) Manually press the +/- key on the TRV (2) Use the mobile App 2.The ambient temperature needs to be checked after connecting the TRV to the mobile App
Q:When adjusting the temperature in the mobile app for the first time, sometimes it takes a few seconds for the TRV to respond.
A:It is normal, when the App is connected, the data(time/temperature,ect) will be re-checked every time, and it will enter the operable mode after execution is completed. If there is an abnormality, you need to wait for more than 60 seconds.
Q:The mobile App cannot find the TRV that enters the pairing state(Zigbee)
A:1.Check if the Wi-Fi is connected 2. Check if the TRV signal icon is flashing 3. Please perform the reset operation, press +/- button for more than 3 seconds at the same time, and then press the confirm button(Menu button)
